| A0 |
Color code key |
48L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
34L |
| B37 |
Accelerator pedal sensor |
29L |
| CAN I |
Drive train sensor CAN |
36K |
| Code B03 |
ECO start/stop function |
21H |
| Code B03 |
ECO start/stop function |
16E |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
33D |
| F32 |
Front electrical prefuse box |
24L |
| F32f151 |
Prefuse 151 |
22K |

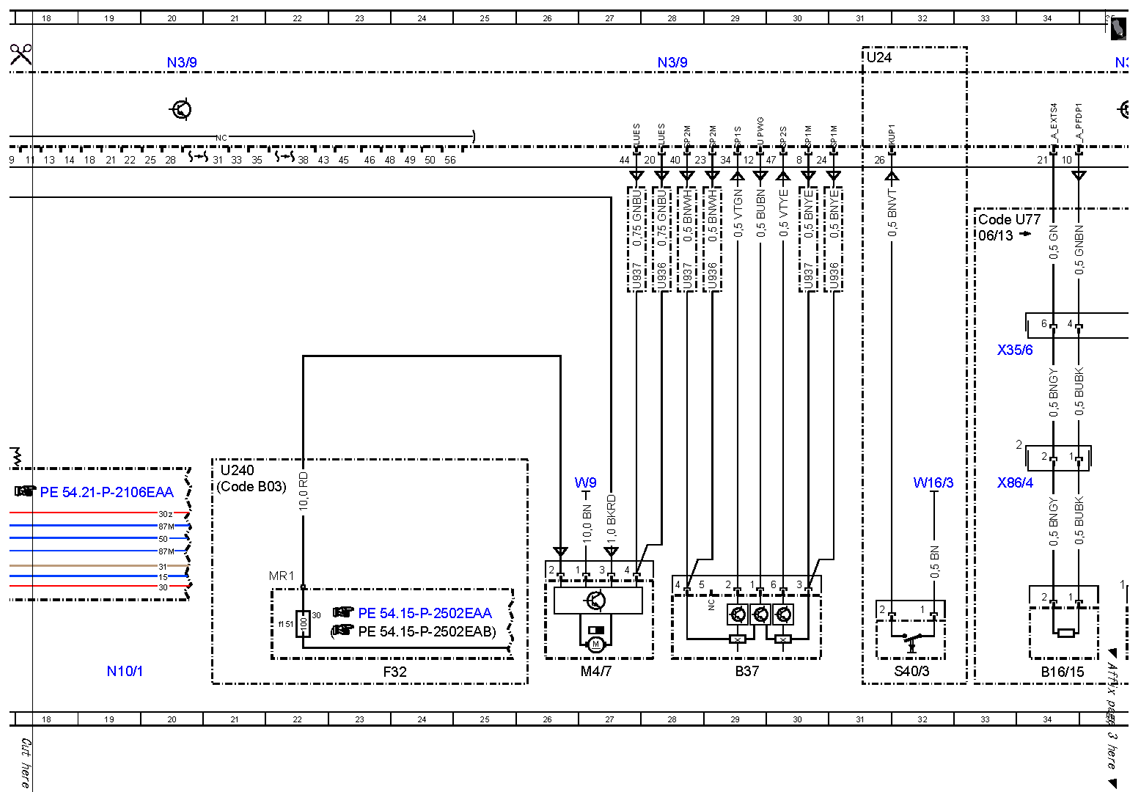

| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
27L |

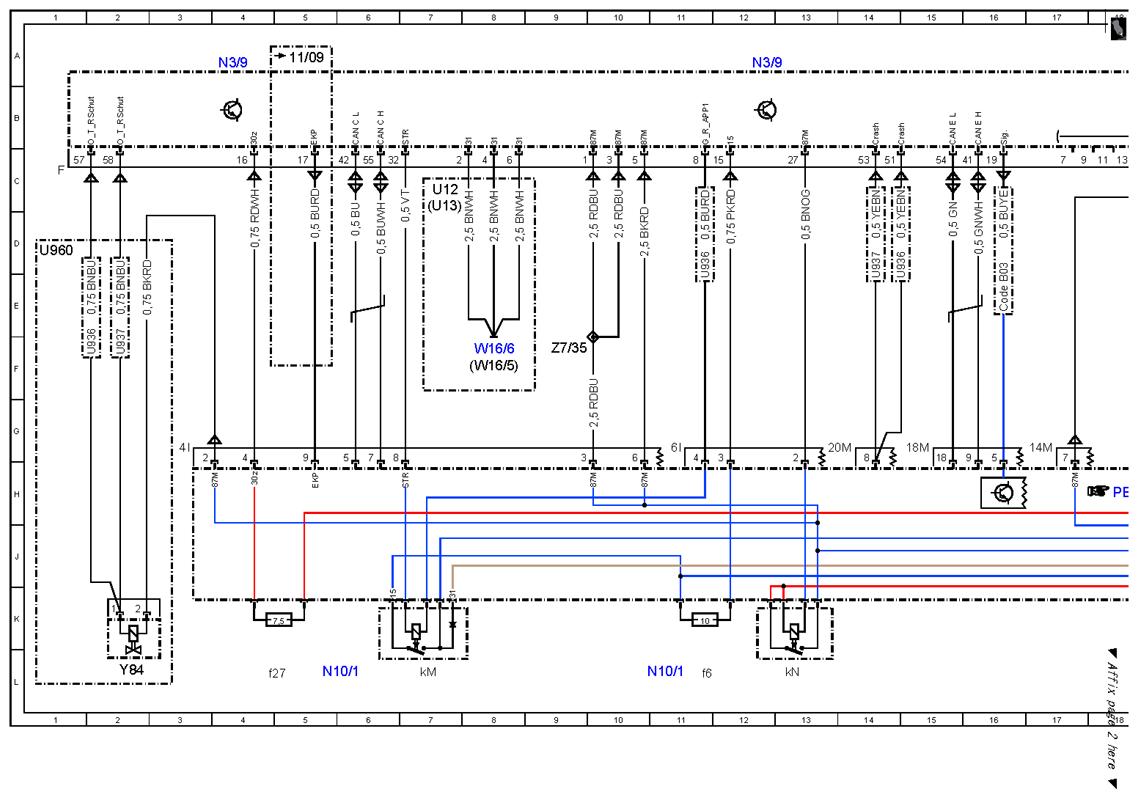

| N10/1 |
Front SAM control unit with fuse and relay module |
5L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1 |
Front SAM control unit with fuse and relay module |
19L |
| N10/1f27 |
Fuse 27 |
5L |
| N10/1f6 |
Fuse 6 |
11L |
| N10/1kM |
Starter circuit 50 relay |
7L |
| N10/1kN |
Engine circuit 87 relay |
13L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
35A |
| S40/3 |
Clutch pedal switch |
32L |
| U12 |
Valid for left-hand drive vehicles |
7C |
| U13 |
Valid for right-hand drive vehicles |
7C |
| U24 |
Valid for manual transmission |
31A |
| U240 |
Valid for all except ECO start/stop function |
21H |
| U936 |
Valid for increased engine power |
2F |
| U936 |
Valid for increased engine power |
15E |
| U936 |
Valid for increased engine power |
11E |
| U936 |
Valid for increased engine power |
28E |
| U936 |
Valid for increased engine power |
29E |
| U936 |
Valid for increased engine power |
31E |
| U936 |
Valid for increased engine power |
37A |
| U937 |
Valid for all except increased engine power |
2F |
| U937 |
Valid for all except increased engine power |
14E |
| U937 |
Valid for all except increased engine power |
28E |
| U937 |
Valid for all except increased engine power |
28E |
| U937 |
Valid for all except increased engine power |
30E |
| U937 |
Valid for all except increased engine power |
37A |
| U960 |
Valid for radiator shutters |
1D |
| W16/3 |
Left major assembly compartment ground point |
32H |
| W16/5 |
Left major assembly compartment electronics ground point |
8F |
| W16/6 |
Right major assembly compartment ground point |
8F |
| W18 |
Left front seat crossmember ground point |
37H |
| W9 |
Left front ground point (at lamp unit) |
27H |

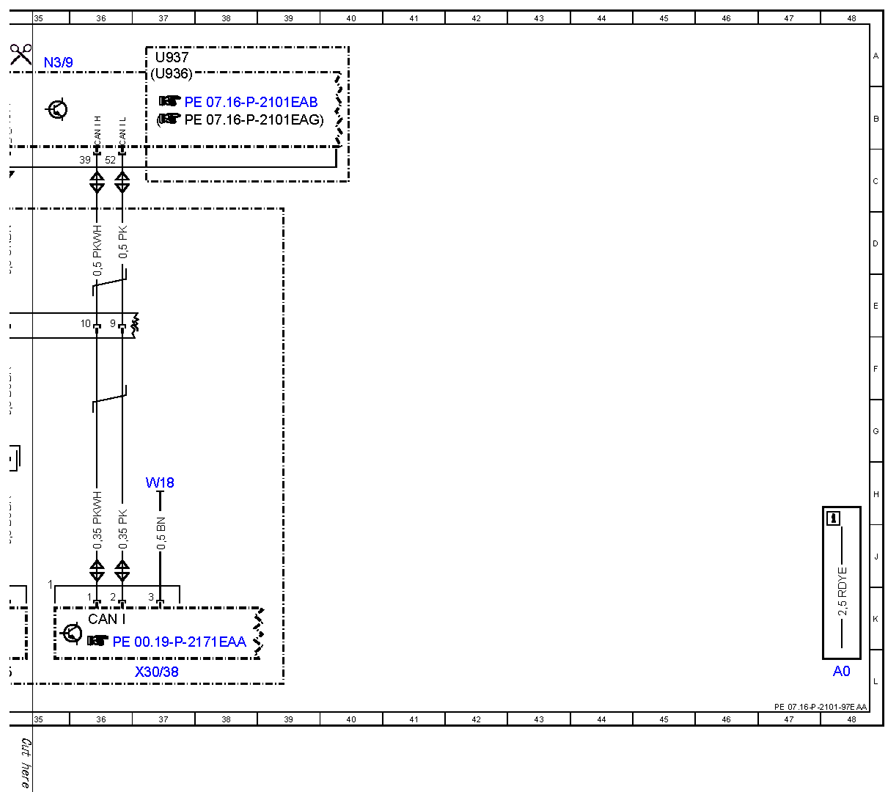

| X30/38 |
Potential distributor electrical connector (CAN I) |
37L |
| X35/6 |
Instrument panel and module box electrical connector |
33F |
| X86/4 |
Right nitrogen oxides control unit electrical connector |
33H |
| Y84 |
Radiator shutters actuator |
2L |
| Z7/35 |
Circuit 87 M1e connector sleeve |
9F |
