| A0 |
Color code key |
80L |

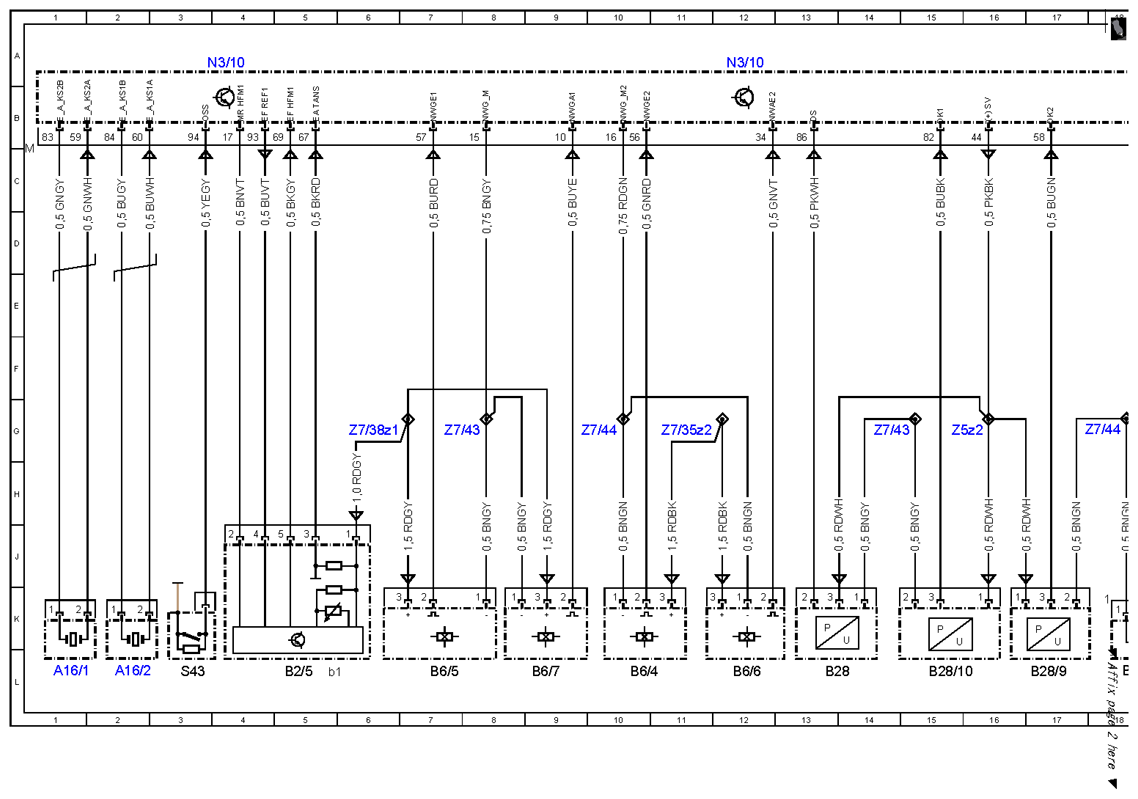

| A16/1 |
Right knock sensor |
1L |
| A16/2 |
Left knock sensor |
2L |

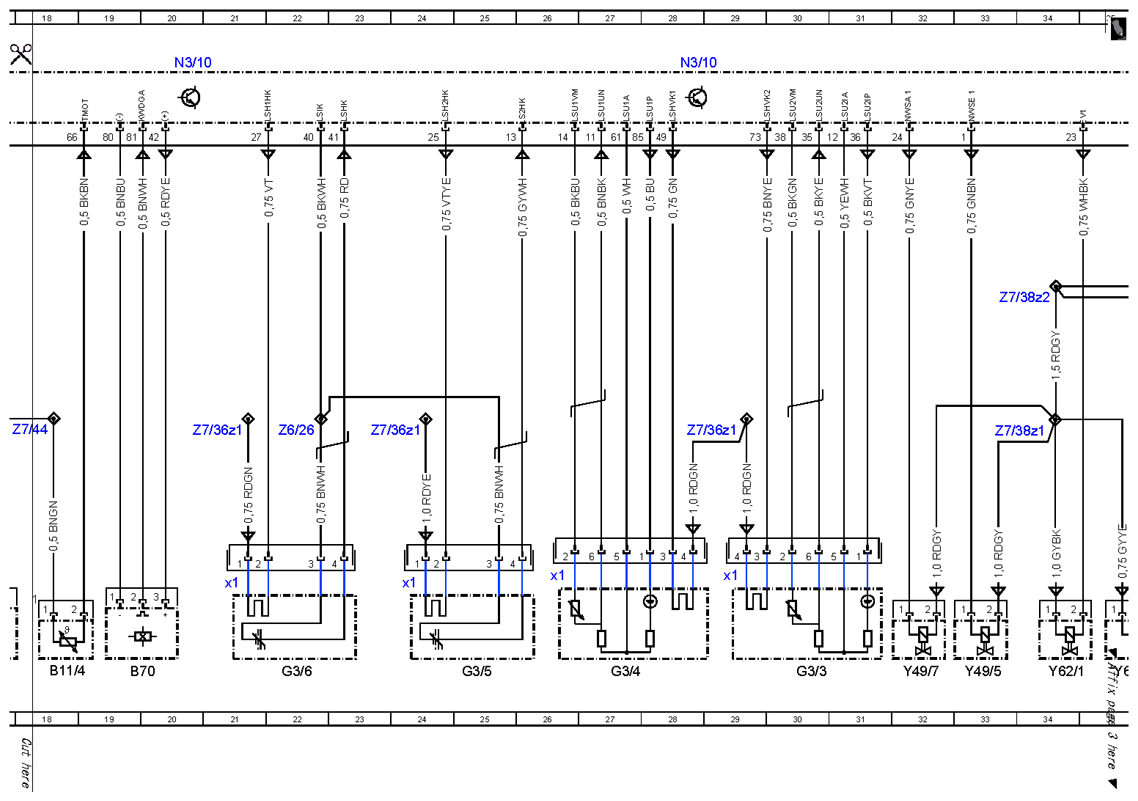

| B11/4 |
Coolant temperature sensor |
18L |
| B2/5 |
Hot film mass air flow sensor |
5L |
| B2/5b1 |
Intake air temperature sensor |
5L |
| B28 |
Pressure sensor |
13L |
| B28/10 |
Right intake manifold tumble flap position sensor |
15L |
| B28/9 |
Left intake manifold tumble flap position sensor |
17L |
| B6/4 |
Left intake camshaft Hall sensor |
10L |
| B6/5 |
Right intake camshaft Hall sensor |
7L |
| B6/6 |
Left exhaust camshaft Hall sensor |
12L |
| B6/7 |
Right exhaust camshaft Hall sensor |
9L |
| B70 |
Crankshaft Hall sensor |
19L |

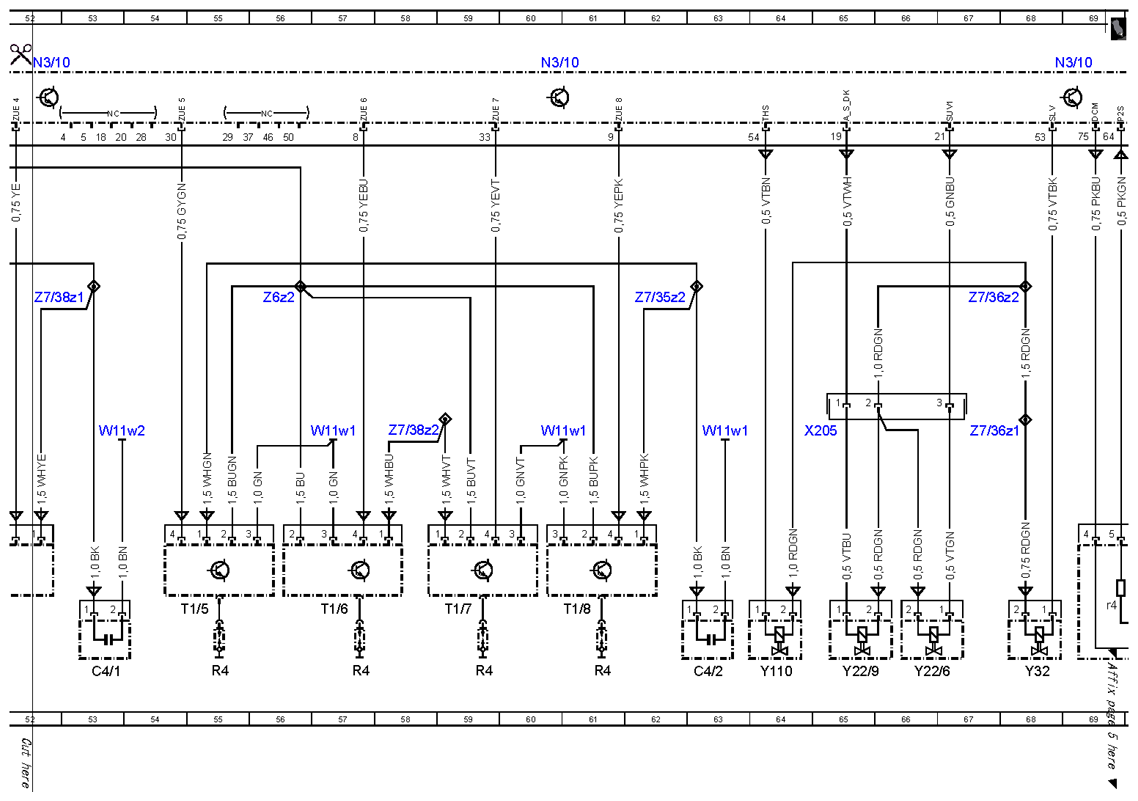

| C4/1 |
Radio interference suppression capacitor 1 |
53L |
| C4/2 |
Radio interference suppression capacitor 2 |
63L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
30L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
29J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
27L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
26J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
25L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
24J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
22L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
21J |
| LIN C1 |
Drive train LIN |
74B |

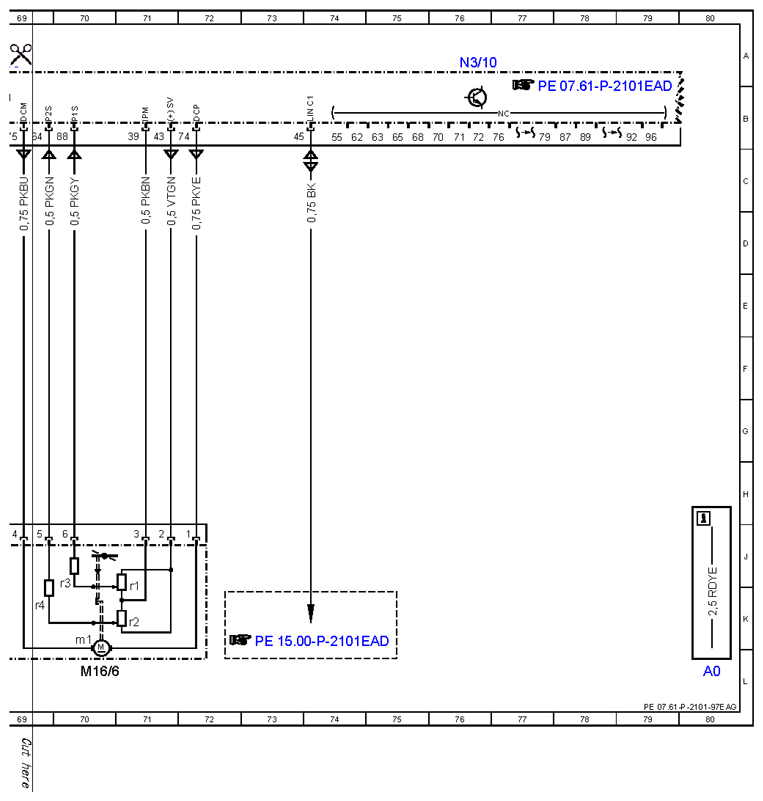

| M16/6 |
Throttle valve actuator |
70L |
| M16/6m1 |
Actuator motor |
70K |
| M16/6r1 |
Actual value potentiometer 1 |
71K |
| M16/6r2 |
Actual value potentiometer 2 |
71K |
| M16/6r3 |
Sliding contact 1 actual value potentiometer |
70K |
| M16/6r4 |
Sliding contact 2 actual value potentiometer |
69K |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
60A |
| N3/10 |
ME-SFI [ME] control unit |
69A |
| N3/10 |
ME-SFI [ME] control unit |
76A |
| R4 |
Spark plugs |
45L |
| R4 |
Spark plugs |
51L |
| R4 |
Spark plugs |
50L |
| R4 |
Spark plugs |
48L |
| R4 |
Spark plugs |
57L |
| R4 |
Spark plugs |
59L |
| R4 |
Spark plugs |
55L |
| R4 |
Spark plugs |
61L |
| S43 |
Oil level check switch |
3L |

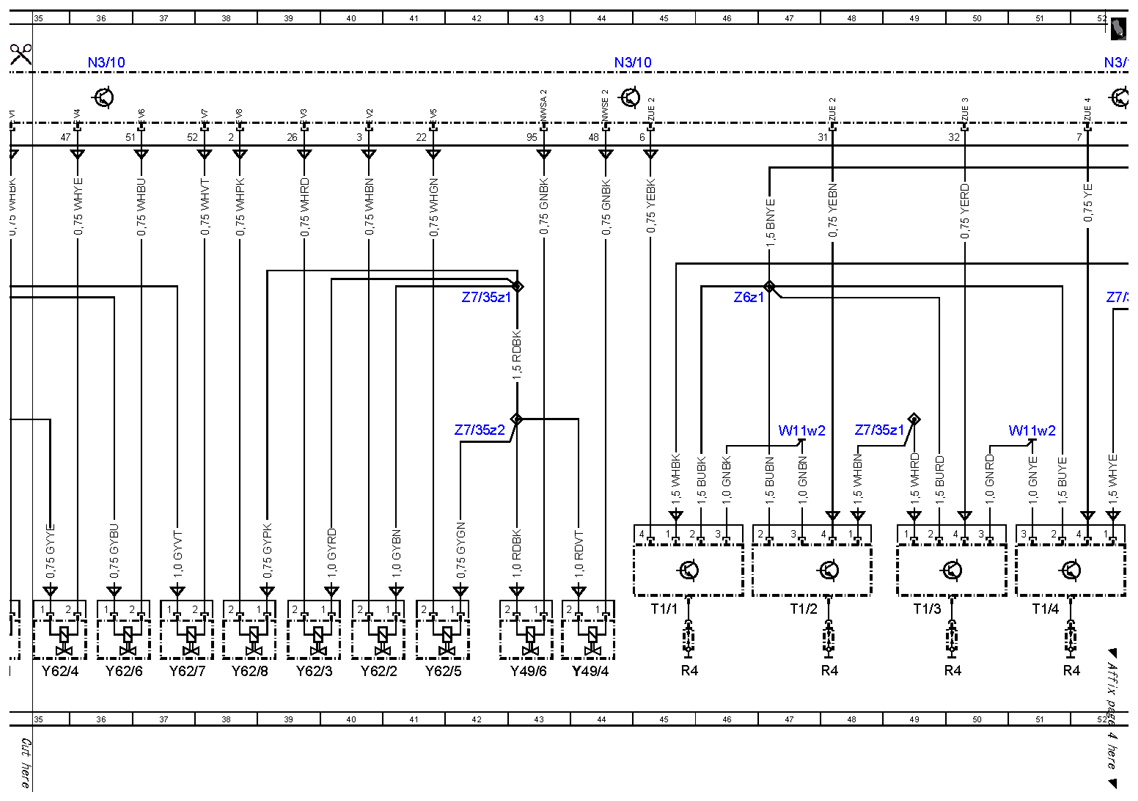

| T1/1 |
Cylinder 1 ignition coil |
45K |
| T1/2 |
Cylinder 2 ignition coil |
47K |
| T1/3 |
Cylinder 3 ignition coil |
49K |
| T1/4 |
Cylinder 4 ignition coil |
51K |
| T1/5 |
Cylinder 5 ignition coil |
55K |
| T1/6 |
Cylinder 6 ignition coil |
57K |
| T1/7 |
Cylinder 7 ignition coil |
59K |
| T1/8 |
Cylinder 8 ignition coil |
61K |
| W11w1 |
Left cylinder bank ground point (engine) |
57G |
| W11w1 |
Left cylinder bank ground point (engine) |
60G |
| W11w1 |
Left cylinder bank ground point (engine) |
63G |
| W11w2 |
Right cylinder bank ground point (engine) |
53G |
| W11w2 |
Right cylinder bank ground point (engine) |
47G |
| W11w2 |
Right cylinder bank ground point (engine) |
51G |
| X205 |
Tumble flap and intake manifold switchover valves electrical connector |
65G |
| Y110 |
Coolant thermostat |
64L |
| Y22/6 |
Intake manifold switchover valve |
66L |
| Y22/9 |
Intake manifold tumble flap switchover valve |
65L |
| Y32 |
Air pump switchover valve |
68L |
| Y49/4 |
Left intake camshaft solenoid |
44L |
| Y49/5 |
Right intake camshaft solenoid |
33L |
| Y49/6 |
Left exhaust camshaft solenoid |
43L |
| Y49/7 |
Right exhaust camshaft solenoid |
32L |
| Y62/1 |
Cylinder 1 injection valve |
34L |
| Y62/2 |
Cylinder 2 injection valve |
40L |
| Y62/3 |
Cylinder 3 injection valve |
39L |
| Y62/4 |
Cylinder 4 injection valve |
35L |
| Y62/5 |
Cylinder 5 injection valve |
41L |
| Y62/6 |
Cylinder 6 injection valve |
36L |
| Y62/7 |
Cylinder 7 injection valve |
37L |
| Y62/8 |
Cylinder 8 injection valve |
38L |
| Z5z2 |
Connector sleeve in wiring harness |
16G |
| Z6/26 |
Sensor voltage supply connector sleeve |
22G |
| Z6z1 |
Circuit 31 connector sleeve |
46E |
| Z6z2 |
Circuit 31 connector sleeve |
56E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
48G |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
42E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
11G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
42G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
62E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
21G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
24G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
29G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
67G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
67E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
6G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
34G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
52E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
34E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
58G |
| Z7/43 |
Sensor ground connector sleeve |
8G |
| Z7/43 |
Sensor ground connector sleeve |
14G |
| Z7/44 |
Sensor ground connector sleeve |
10G |
| Z7/44 |
Sensor ground connector sleeve |
18G |
