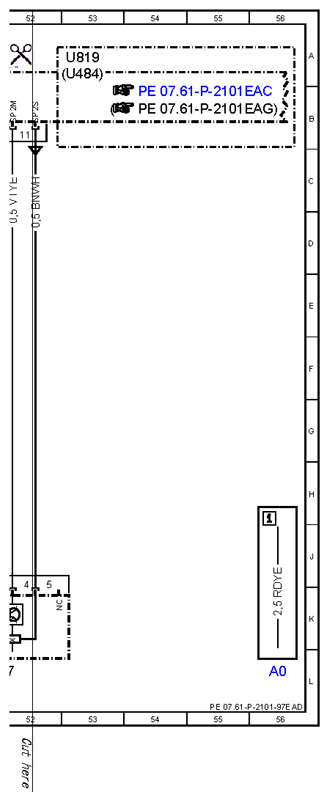

| A0 |
Color code key |
56L |
| A9 |
Refrigerant compressor |
29L |
| B11/15 |
Radiator sensor for engine diagnosis |
44L |
| B37 |
Accelerator pedal sensor |
51L |
| B4/3 |
Fuel tank pressure sensor |
41L |

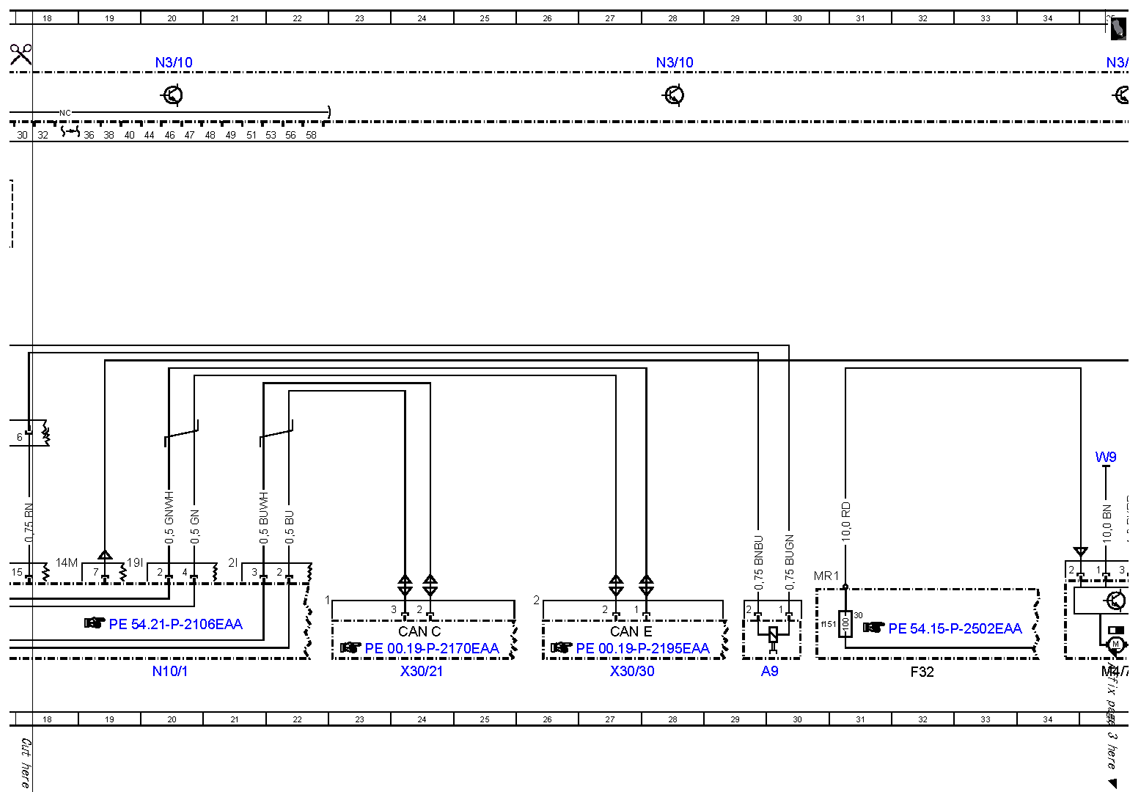

| CAN C |
Drive train CAN |
24K |
| CAN E |
Chassis CAN |
27K |
| F32 |
Front electrical prefuse box |
32L |
| F32f151 |
Prefuse 151 |
30K |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
35L |

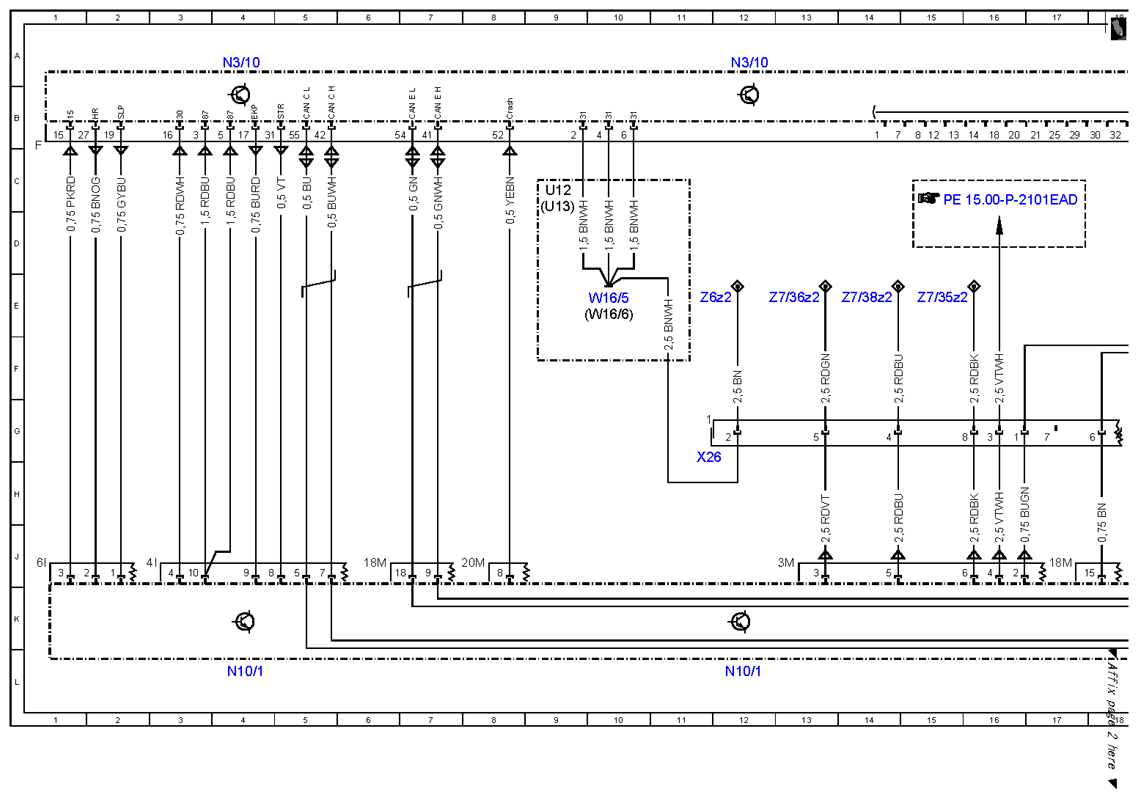

| N10/1 |
Front SAM control unit with fuse and relay module |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
20L |
| N10/1 |
Front SAM control unit with fuse and relay module |
47L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
35A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
51A |

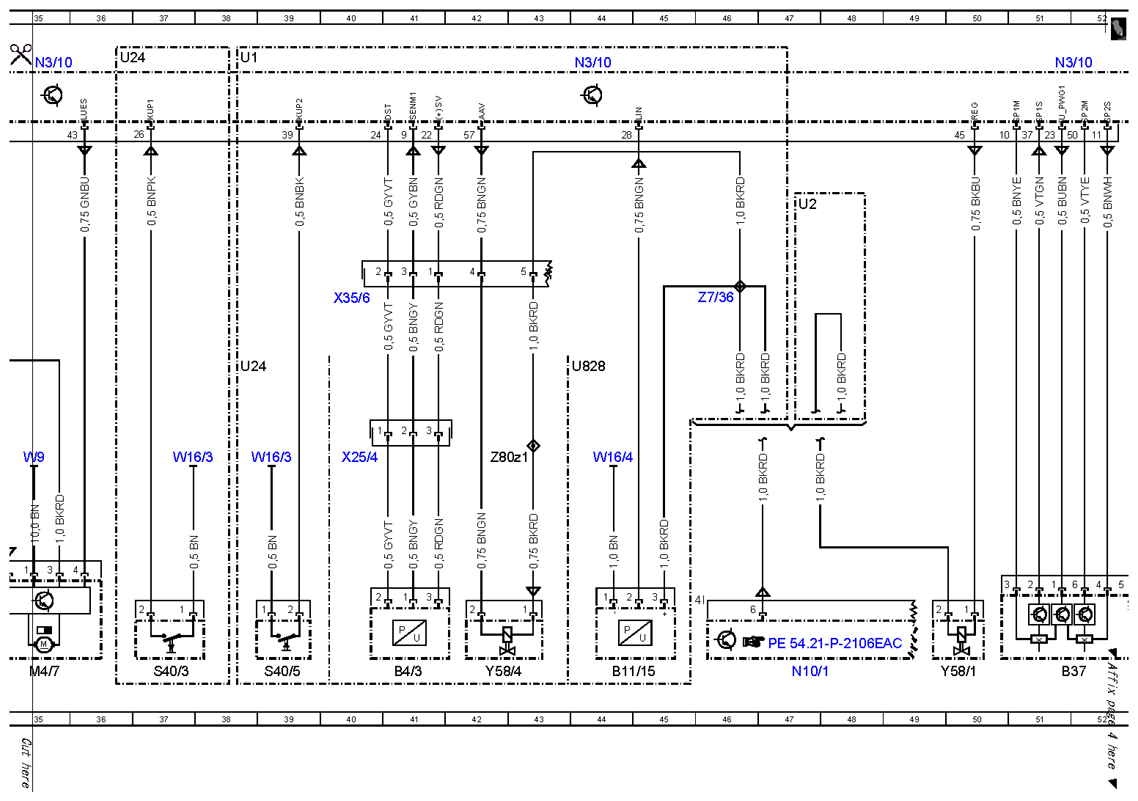

| S40/3 |
Clutch pedal switch |
37L |
| S40/5 |
Start enable clutch pedal switch |
39L |
| U1 |
Valid for USA |
38A |
| U12 |
Valid for left-hand drive vehicles |
9C |
| U13 |
Valid for right-hand drive vehicles |
9C |
| U2 |
Valid for all except USA |
47C |
| U24 |
Valid for manual transmission |
38F |
| U24 |
Valid for manual transmission |
36A |
| U484 |
Valid for gasoline engine 273 |
52A |
| U819 |
Valid for gasoline engine 272 |
53A |
| U828 |
Valid for SULEV |
44F |
| W16/3 |
Left major assembly compartment ground point |
37H |
| W16/3 |
Left major assembly compartment ground point |
39H |
| W16/4 |
Right wheelhouse ground point |
44H |
| W16/5 |
Left major assembly compartment electronics ground point |
10E |
| W16/6 |
Right major assembly compartment ground point |
10E |
| W9 |
Left front ground point (at lamp unit) |
35H |
| X25/4 |
Fuel tank electrical connector |
40H |
| X26 |
Interior and engine wiring harness electrical connector |
11H |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
24L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
27L |
| X35/6 |
Instrument panel and module box electrical connector |
40E |
| Y58/1 |
Purge control valve |
50L |
| Y58/4 |
Activated charcoal filter shutoff valve |
42L |
| Z6z2 |
Circuit 31 connector sleeve |
12E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
15E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
46E |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
13E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
14E |
| Z80z1 |
Cross section reduction connector sleeve |
43G |
