Electrical function schematic, synchronization of the injection and firing order - PE07.10-P-2706-97EAB

Code: Designation: Position:
1 Engine speed, signal 6B
B6/4 Left intake camshaft Hall sensor 1F
B6/5 Right intake camshaft Hall sensor 1F
B6/6 Left exhaust camshaft Hall sensor 1F
B6/7 Right exhaust camshaft Hall sensor 1F
B70 Crankshaft Hall sensor 4B
CAN E Chassis CAN
N3/10 ME-SFI [ME] control unit 4D
R4 Spark plugs 7J
T1/1 Cylinder 1 ignition coil 7F
T1/2 Cylinder 2 ignition coil 7F
T1/3 Cylinder 3 ignition coil 7F
T1/4 Cylinder 4 ignition coil 7F
T1/5 Cylinder 5 ignition coil 7G
T1/6 Cylinder 6 ignition coil 7G
T1/7 Cylinder 7 ignition coil 7G
T1/8 Cylinder 8 ignition coil 7H
U484 Valid for gasoline engine 273 6G
U484 Valid for gasoline engine 273 4J
Y62/1 Cylinder 1 injection valve 4G
Y62/2 Cylinder 2 injection valve 4H
Y62/3 Cylinder 3 injection valve 4H
Y62/4 Cylinder 4 injection valve 4H
Y62/5 Cylinder 5 injection valve 4H
Y62/6 Cylinder 6 injection valve 4J
Y62/7 Cylinder 7 injection valve 4J
Y62/8 Cylinder 8 injection valve 4K

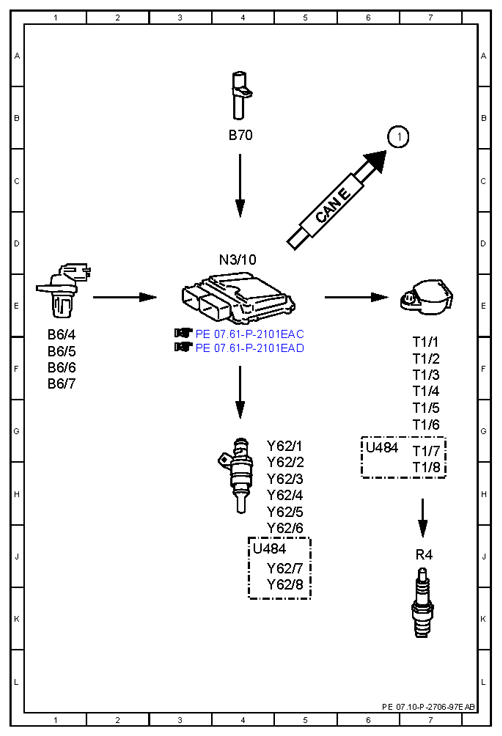

Fig 1: Synchronization Of Injection And Firing Order - Electrical Function Schematic
