Electrical function schematic for tumble flap switchover - PE07.10-P-2718-97EAB

Code:	Designation:	Position:
B11/4	Coolant temperature sensor	2C
B2/5	Hot film mass air flow sensor	4D
B28/10	Right intake manifold tumble flap position sensor	2H
B28/9	Left intake manifold tumble flap position sensor	2G
B70	Crankshaft Hall sensor	1F
N3/10	ME-SFI [ME] control unit	4E
Y22/9	Intake manifold tumble flap switchover valve	4J

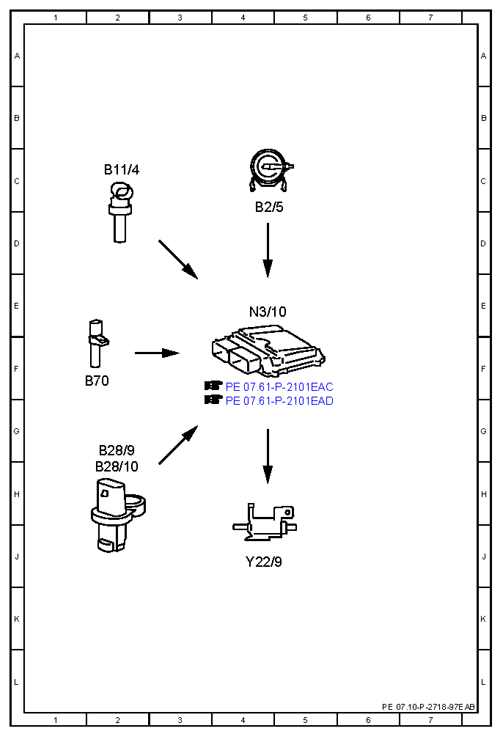

Fig 1: Tumble Flap Switchover - Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
