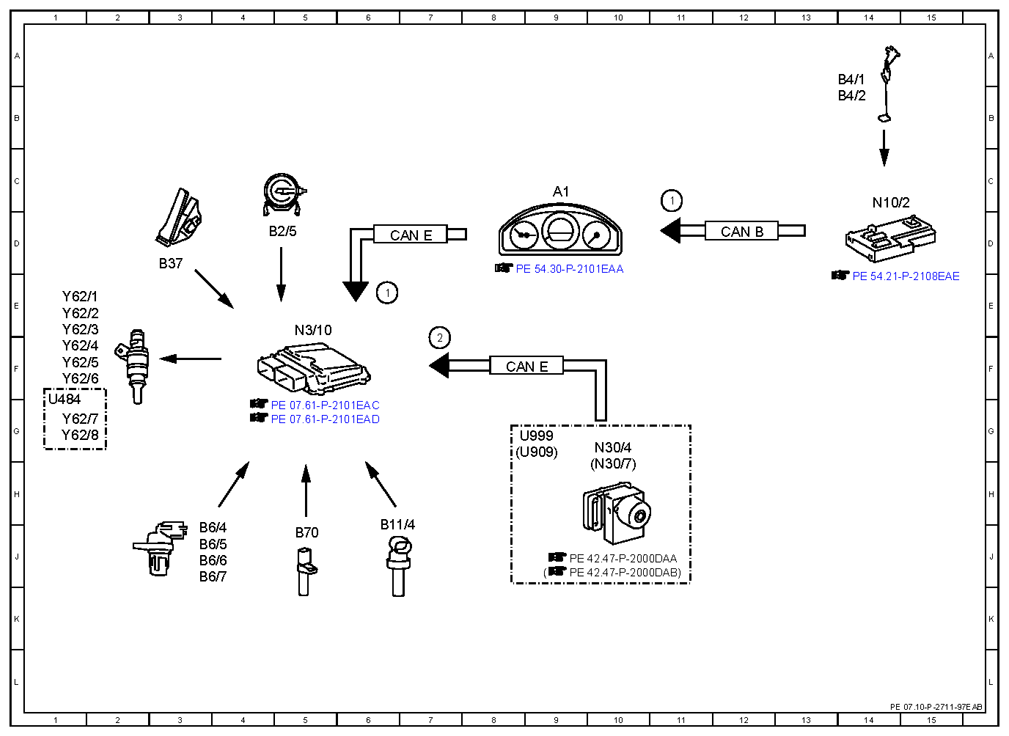

| 1 |
Fuel level, signal |
6E |
| 1 |
Fuel level, signal |
11C |
| 2 |
Wheel speed, signal |
7F |
| A1 |
Instrument cluster |
9C |
| B11/4 |
Coolant temperature sensor |
6J |
| B2/5 |
Hot film mass air flow sensor |
5D |
| B37 |
Accelerator pedal sensor |
3D |
| B4/1 |
Left fuel level indicator sensor |
13A |
| B4/2 |
Right fuel level indicator sensor |
13B |
| B6/4 |
Left intake camshaft Hall sensor |
3J |
| B6/5 |
Right intake camshaft Hall sensor |
3J |
| B6/6 |
Left exhaust camshaft Hall sensor |
3J |
| B6/7 |
Right exhaust camshaft Hall sensor |
3J |
| B70 |
Crankshaft Hall sensor |
5J |
| CAN B |
Interior CAN |
12D |
| CAN E |
Chassis CAN |
7D |
| CAN E |
Chassis CAN |
9F |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14C |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| N30/4 |
Electronic Stability Program control unit |
10G |
| N30/7 |
Premium Electronic Stability Program control unit |
10H |
| U484 |
Valid for gasoline engine 273 |
1G |
| U909 |
Valid for DISTRONIC PLUS |
8G |
| U999 |
Not valid with DISTRONIC PLUS |
8G |
| Y62/1 |
Cylinder 1 injection valve |
1E |
| Y62/2 |
Cylinder 2 injection valve |
1E |
| Y62/3 |
Cylinder 3 injection valve |
1E |
| Y62/4 |
Cylinder 4 injection valve |
1F |
| Y62/5 |
Cylinder 5 injection valve |
1F |
| Y62/6 |
Cylinder 6 injection valve |
1F |
| Y62/7 |
Cylinder 7 injection valve |
1G |
| Y62/8 |
Cylinder 8 injection valve |
1G |
