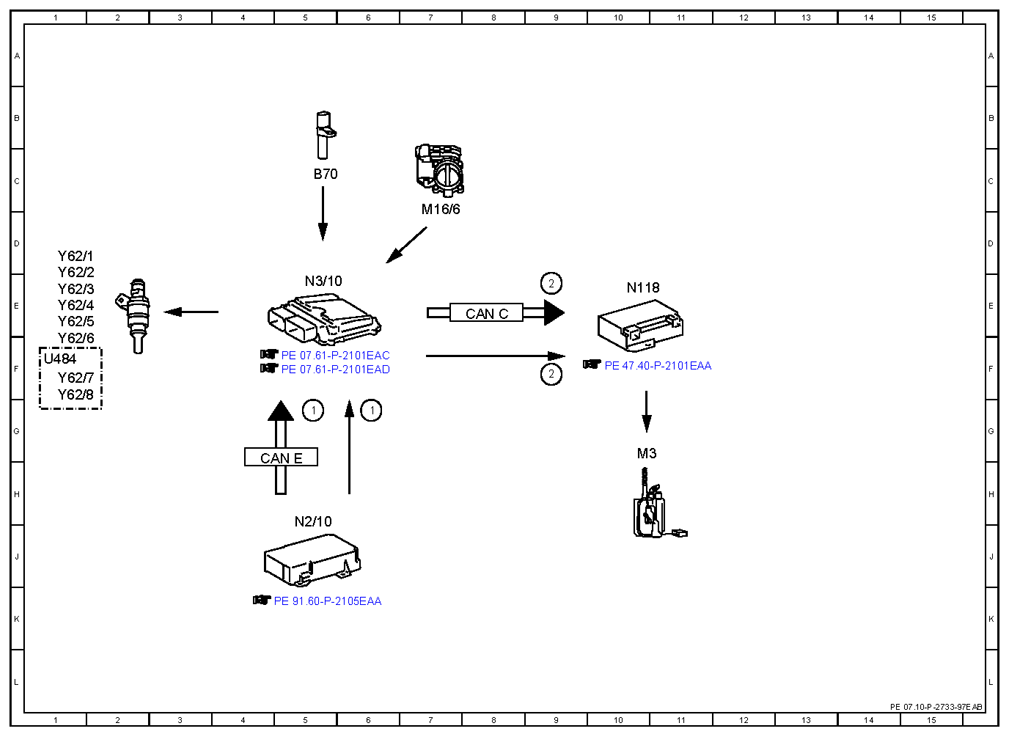

| 1 |
Crash, signal |
5G |
| 1 |
Crash, signal |
6G |
| 2 |
Fuel pump, request OFF |
9E |
| 2 |
Fuel pump, request OFF |
9F |
| B70 |
Crankshaft Hall sensor |
5C |
| CAN C |
Drive train CAN |
8E |
| CAN E |
Chassis CAN |
5F |
| M16/6 |
Throttle valve actuator |
7D |
| M3 |
Fuel pump (FP) |
10G |
| N118 |
Fuel pump control unit |
10E |
| N2/10 |
Supplemental restraint system control unit |
5J |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| U484 |
Valid for gasoline engine 273 |
1F |
| Y62/1 |
Cylinder 1 injection valve |
1D |
| Y62/2 |
Cylinder 2 injection valve |
1E |
| Y62/3 |
Cylinder 3 injection valve |
1E |
| Y62/4 |
Cylinder 4 injection valve |
1E |
| Y62/5 |
Cylinder 5 injection valve |
1E |
| Y62/6 |
Cylinder 6 injection valve |
1F |
| Y62/7 |
Cylinder 7 injection valve |
1F |
| Y62/8 |
Cylinder 8 injection valve |
1F |
