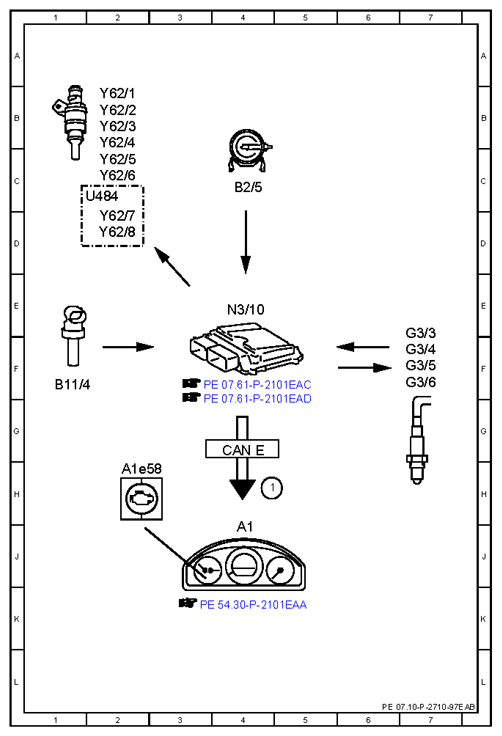

| 1 |
Engine diagnosis indicator lamp, actuation |
4H |
| A1 |
Instrument cluster |
4J |
| A1e58 |
Engine diagnosis indicator lamp |
2H |
| B11/4 |
Coolant temperature sensor |
1F |
| B2/5 |
Hot film mass air flow sensor |
4C |
| CAN E |
Chassis CAN |
4G |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
7F |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
7F |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
7F |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
7F |
| N3/10 |
ME-SFI [ME] control unit |
4E |
| U484 |
Valid for gasoline engine 273 |
1C |
| Y62/1 |
Cylinder 1 injection valve |
2B |
| Y62/2 |
Cylinder 2 injection valve |
2B |
| Y62/3 |
Cylinder 3 injection valve |
2B |
| Y62/4 |
Cylinder 4 injection valve |
2B |
| Y62/5 |
Cylinder 5 injection valve |
2C |
| Y62/6 |
Cylinder 6 injection valve |
2C |
| Y62/7 |
Cylinder 7 injection valve |
2D |
| Y62/8 |
Cylinder 8 injection valve |
2D |
