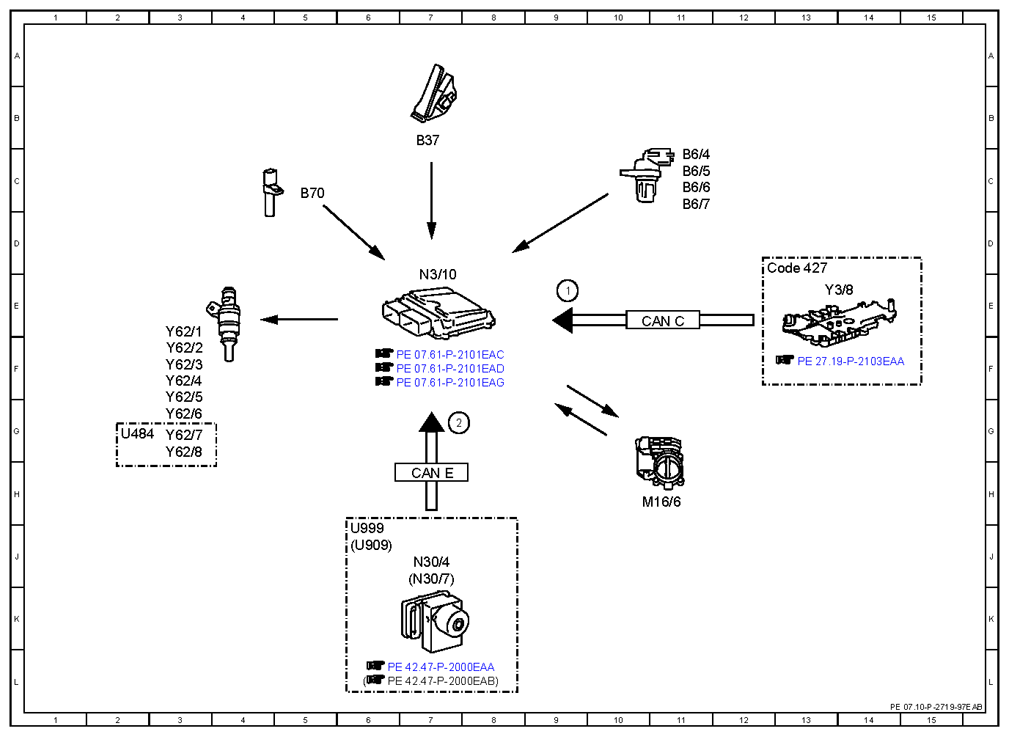

| 1 |
Gear range, status |
9E |
| 2 |
Service brake, status |
7G |
| B37 |
Accelerator pedal sensor |
7B |
| B6/4 |
Left intake camshaft Hall sensor |
11C |
| B6/5 |
Right intake camshaft Hall sensor |
11C |
| B6/6 |
Left exhaust camshaft Hall sensor |
11C |
| B6/7 |
Right exhaust camshaft Hall sensor |
11C |
| B70 |
Crankshaft Hall sensor |
5C |
| CAN C |
Drive train CAN |
11F |
| CAN E |
Chassis CAN |
7H |
| Code 427 |
7-speed automatic transmission |
14F |
| M16/6 |
Throttle valve actuator |
11H |
| N3/10 |
ME-SFI [ME] control unit |
7E |
| N30/4 |
Electronic Stability Program control unit |
7J |
| N30/7 |
Premium Electronic Stability Program control unit |
7J |
| U484 |
Valid for gasoline engine 273 |
2G |
| U909 |
Valid for DISTRONIC PLUS |
6J |
| U999 |
Not valid with DISTRONIC PLUS |
6J |
| Y3/8 |
Fully integrated transmission control control unit |
13E |
| Y62/1 |
Cylinder 1 injection valve |
3E |
| Y62/2 |
Cylinder 2 injection valve |
3F |
| Y62/3 |
Cylinder 3 injection valve |
3F |
| Y62/4 |
Cylinder 4 injection valve |
3F |
| Y62/5 |
Cylinder 5 injection valve |
3G |
| Y62/6 |
Cylinder 6 injection valve |
3G |
| Y62/7 |
Cylinder 7 injection valve |
3G |
| Y62/8 |
Cylinder 8 injection valve |
3G |
