| A0 |
Color code key |
32L |
| B95 |
Battery sensor |
21L |
| Code B03 |
ECO start/stop function |
15A |
| Code B03 |
ECO start/stop function |
11F |
| F32 |
Front electrical prefuse box |
13A |
| F32 |
Front electrical prefuse box |
18A |
| F32f150 |
Pyrofuse 150 |
11B |
| F32f150 |
Pyrofuse 150 |
16B |
| F63 |
Pyrofuse |
16L |

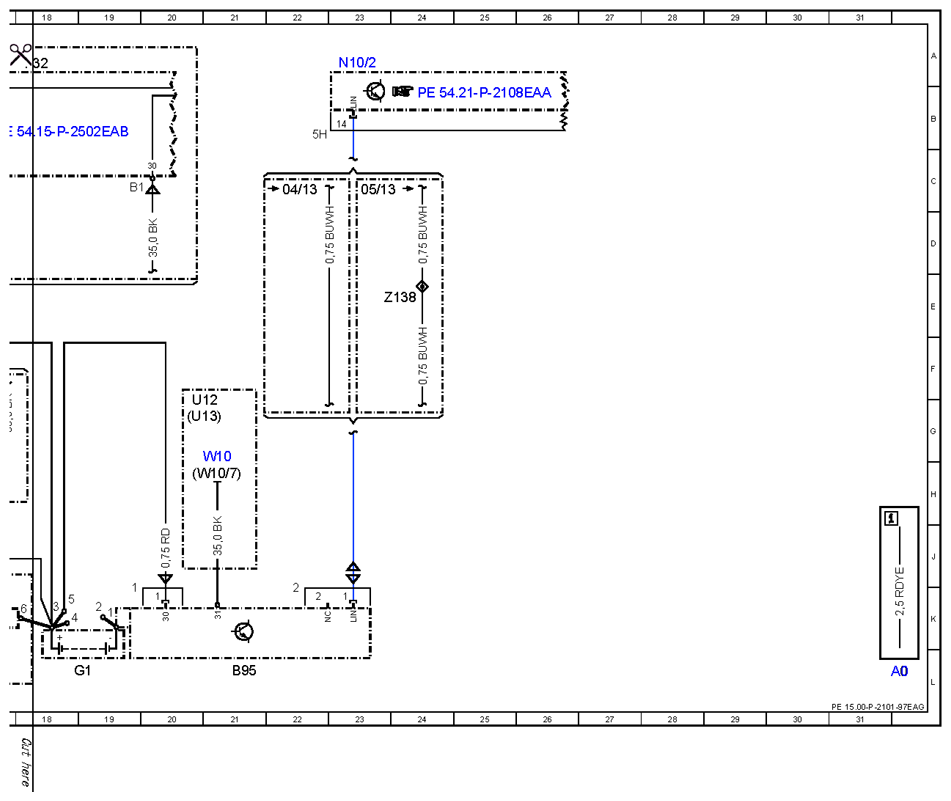

| G1 |
On-board electrical system battery |
19L |

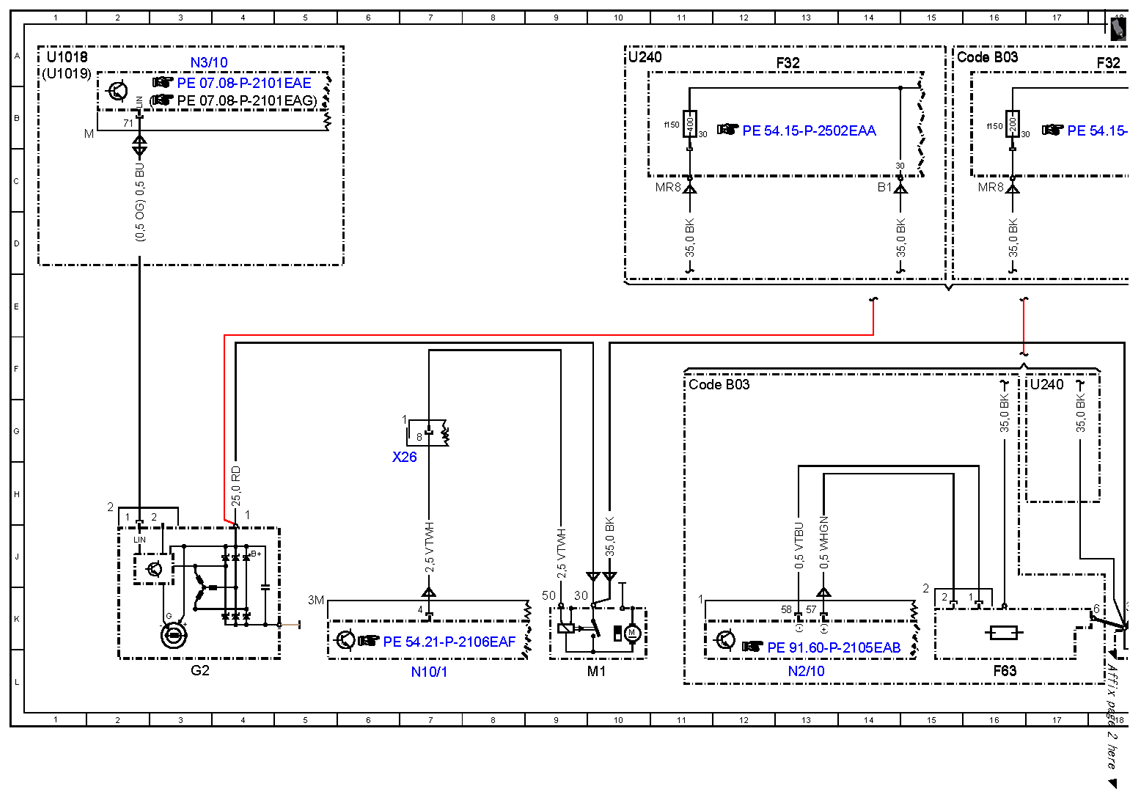

| G2 |
Alternator |
3L |
| M1 |
Starter |
10L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
23A |
| N2/10 |
Supplemental restraint system control unit |
13L |
| N3/10 |
ME-SFI [ME] control unit |
3A |
| U1018 |
Valid for gasoline engine 276 |
1A |
| U1019 |
Valid for gasoline engine 278 |
1A |
| U12 |
Valid for left-hand drive vehicles |
20G |
| U13 |
Valid for right-hand drive vehicles |
20G |
| U240 |
Valid for all except ECO start/stop function |
10A |
| U240 |
Valid for all except ECO start/stop function |
17F |
| W10 |
Right front battery ground point |
21G |
| W10/7 |
Left front battery ground point |
21H |
| X26 |
Interior and engine wiring harness electrical connector |
7H |
| Z138 |
Battery sensor connector sleeve |
24E |
