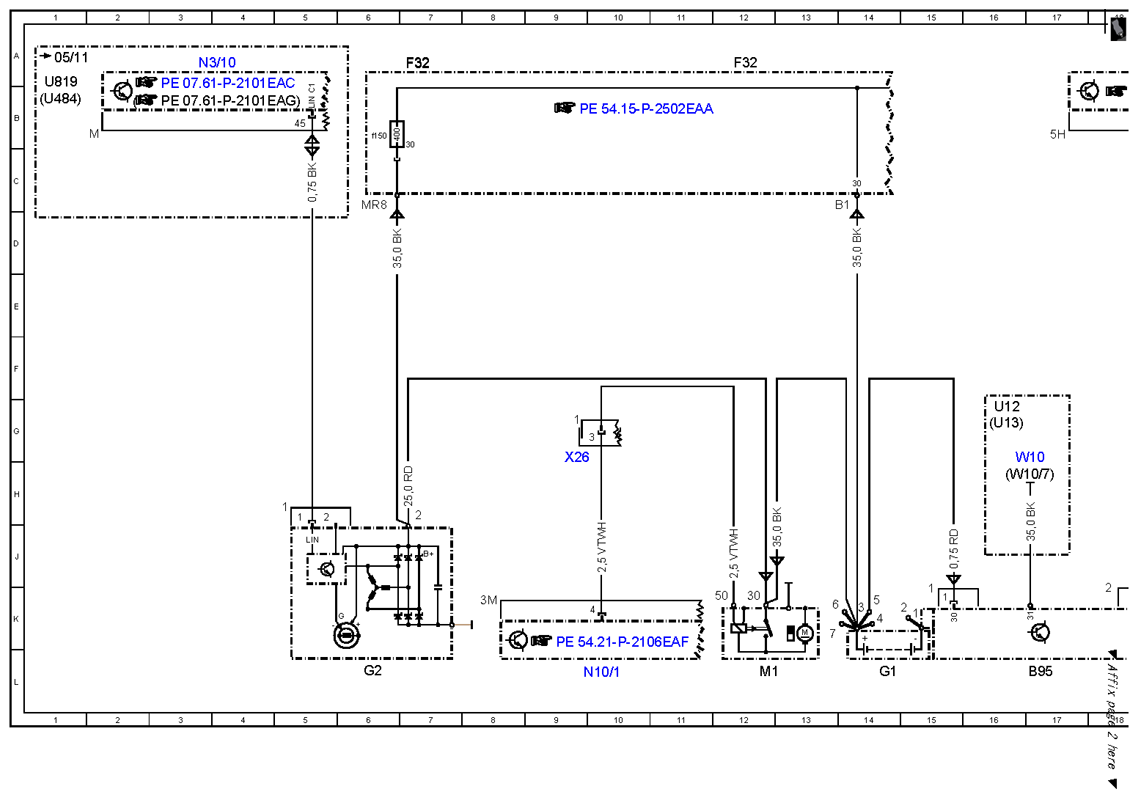

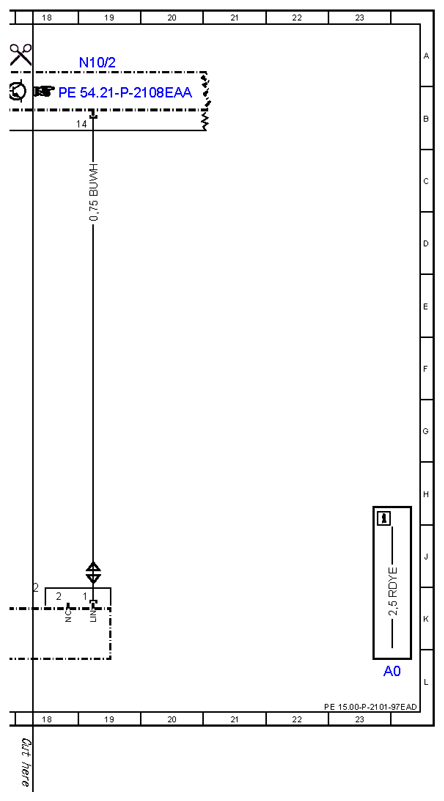

| A0 |
Color code key |
23L |
| B95 |
Battery sensor |
17L |
| F32 |
Front electrical prefuse box |
7A |
| F32 |
Front electrical prefuse box |
12A |
| F32f150 |
Pyrofuse 150 |
6B |
| G1 |
On-board electrical system battery |
14L |
| G2 |
Alternator |
6L |
| LIN C1 |
Drive train LIN |
5B |
| M1 |
Starter |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
10L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
19A |
| N3/10 |
ME-SFI [ME] control unit |
3A |
| U12 |
Valid for left-hand drive vehicles |
16G |
| U13 |
Valid for right-hand drive vehicles |
16G |
| U484 |
Valid for gasoline engine 273 |
1B |
| U819 |
Valid for gasoline engine 272 |
1B |
| W10 |
Right front battery ground point |
16H |
| W10/7 |
Left front battery ground point |
16H |
| X26 |
Interior and engine wiring harness electrical connector |
9H |
