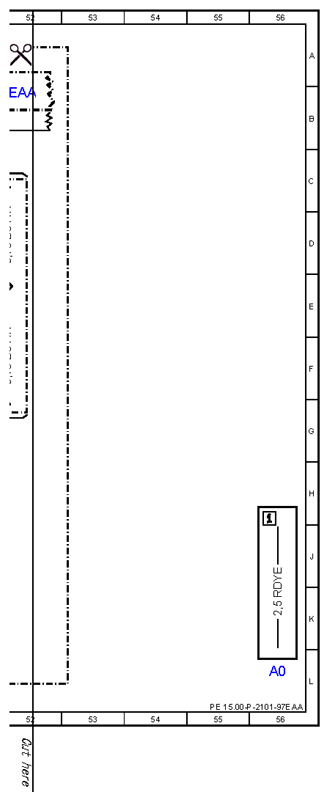

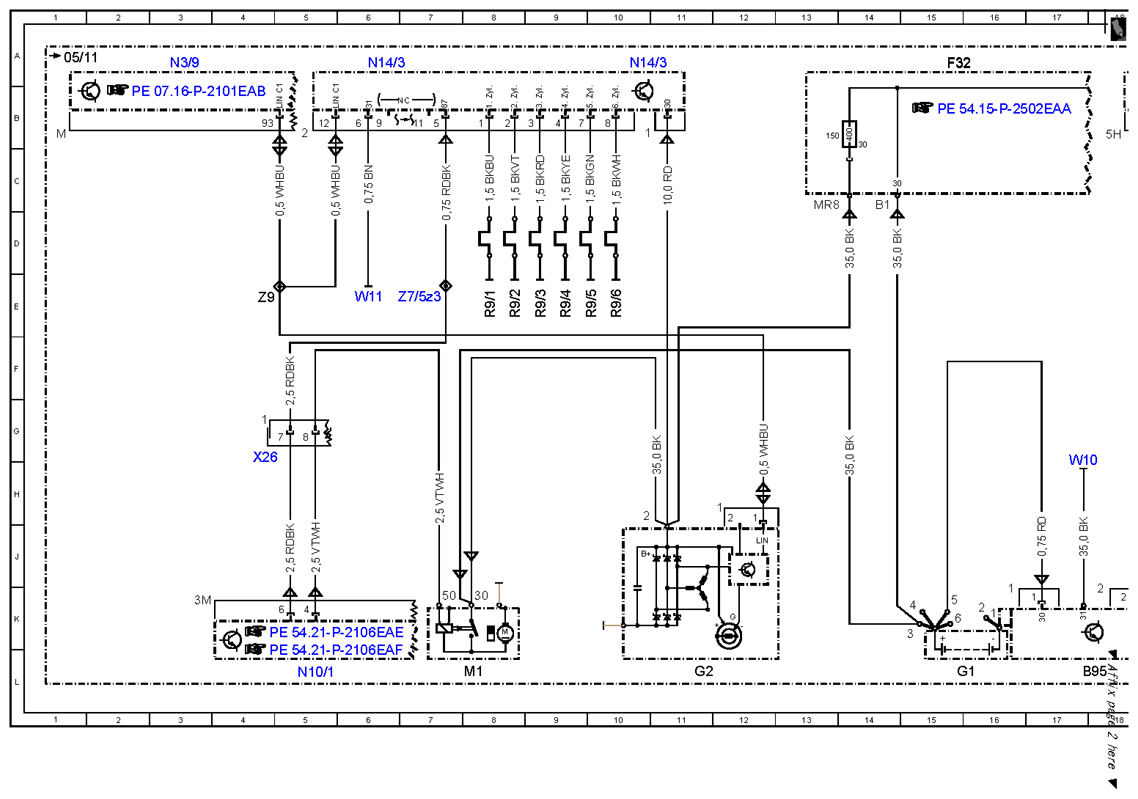

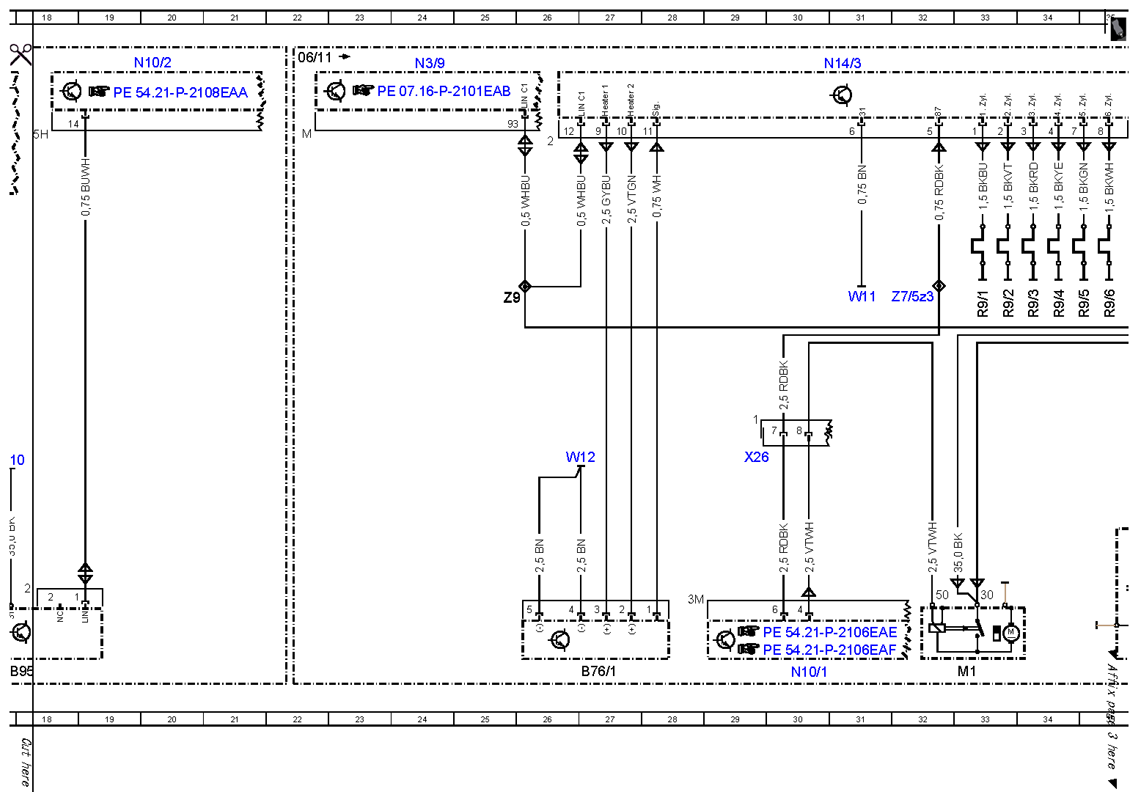

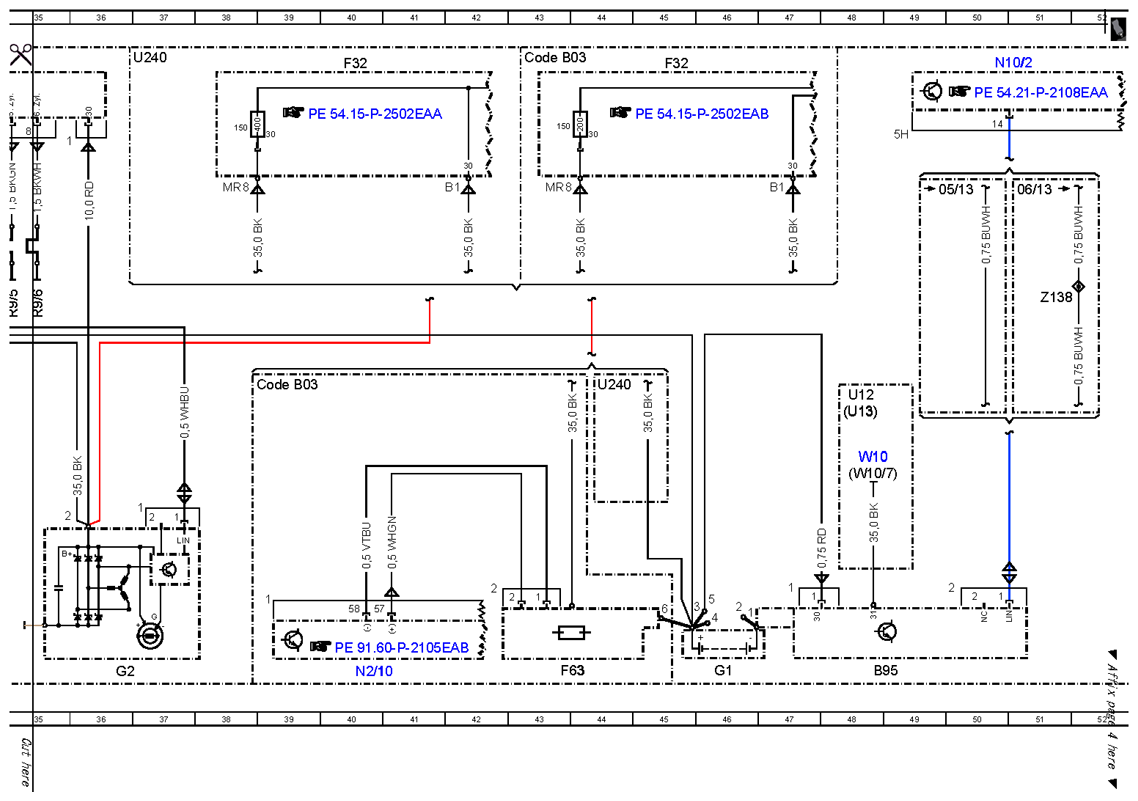

| A0 |
Color code key |
56L |
| B76/1 |
Condensation sensor for fuel filter with heating element |
27L |
| B95 |
Battery sensor |
18L |
| B95 |
Battery sensor |
48L |
| Code B03 |
ECO start/stop function |
38F |
| Code B03 |
ECO start/stop function |
43A |
| F32 |
Front electrical prefuse box |
15A |
| F32 |
Front electrical prefuse box |
40A |
| F32 |
Front electrical prefuse box |
45A |
| F32f150 |
Pyrofuse 150 |
13B |
| F32f150 |
Pyrofuse 150 |
38B |
| F32f150 |
Pyrofuse 150 |
43B |
| F63 |
Pyrofuse |
43L |
| G1 |
On-board electrical system battery |
15L |
| G1 |
On-board electrical system battery |
46L |
| G2 |
Alternator |
11L |
| G2 |
Alternator |
36L |
| LIN C1 |
Drive train LIN |
5B |
| LIN C1 |
Drive train LIN |
6B |
| LIN C1 |
Drive train LIN |
26B |
| LIN C1 |
Drive train LIN |
27B |
| M1 |
Starter |
8L |
| M1 |
Starter |
33L |
| N10/1 |
Front SAM control unit with fuse and relay module |
5L |
| N10/1 |
Front SAM control unit with fuse and relay module |
30L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
50A |
| N14/3 |
Glow output stage |
10A |
| N14/3 |
Glow output stage |
6A |
| N14/3 |
Glow output stage |
31A |
| N2/10 |
Supplemental restraint system control unit |
40L |
| N3/9 |
CDI control unit |
3A |
| N3/9 |
CDI control unit |
24A |
| R9/1 |
Cylinder 1 glow plug |
8E |
| R9/1 |
Cylinder 1 glow plug |
33E |
| R9/2 |
Cylinder 2 glow plug |
8E |
| R9/2 |
Cylinder 2 glow plug |
33E |
| R9/3 |
Cylinder 3 glow plug |
9E |
| R9/3 |
Cylinder 3 glow plug |
34E |
| R9/4 |
Cylinder 4 glow plug |
9E |
| R9/4 |
Cylinder 4 glow plug |
34E |
| R9/5 |
Cylinder 5 glow plug |
10E |
| R9/5 |
Cylinder 5 glow plug |
35E |
| R9/6 |
Cylinder 6 glow plug |
10E |
| R9/6 |
Cylinder 6 glow plug |
35E |
| U12 |
Valid for left-hand drive vehicles |
48G |
| U13 |
Valid for right-hand drive vehicles |
48G |
| U240 |
Valid for all except ECO start/stop function |
44F |
| U240 |
Valid for all except ECO start/stop function |
37A |
| W10 |
Right front battery ground point |
17H |
| W10 |
Right front battery ground point |
48G |
| W10/7 |
Left front battery ground point |
48H |
| W11 |
Combustion engine ground point |
6E |
| W11 |
Combustion engine ground point |
31E |
| W12 |
Ground point for fuel filter with heating element |
26H |
| X26 |
Interior and engine wiring harness electrical connector |
4H |
| X26 |
Interior and engine wiring harness electrical connector |
29H |
| Z138 |
Battery sensor connector sleeve |
51E |
| Z7/5z3 |
Circuit 87 connector sleeve |
7E |
| Z7/5z3 |
Circuit 87 connector sleeve |
32E |
| Z9 |
Connector sleeve 1 |
4E |
| Z9 |
Connector sleeve 1 |
25E |
