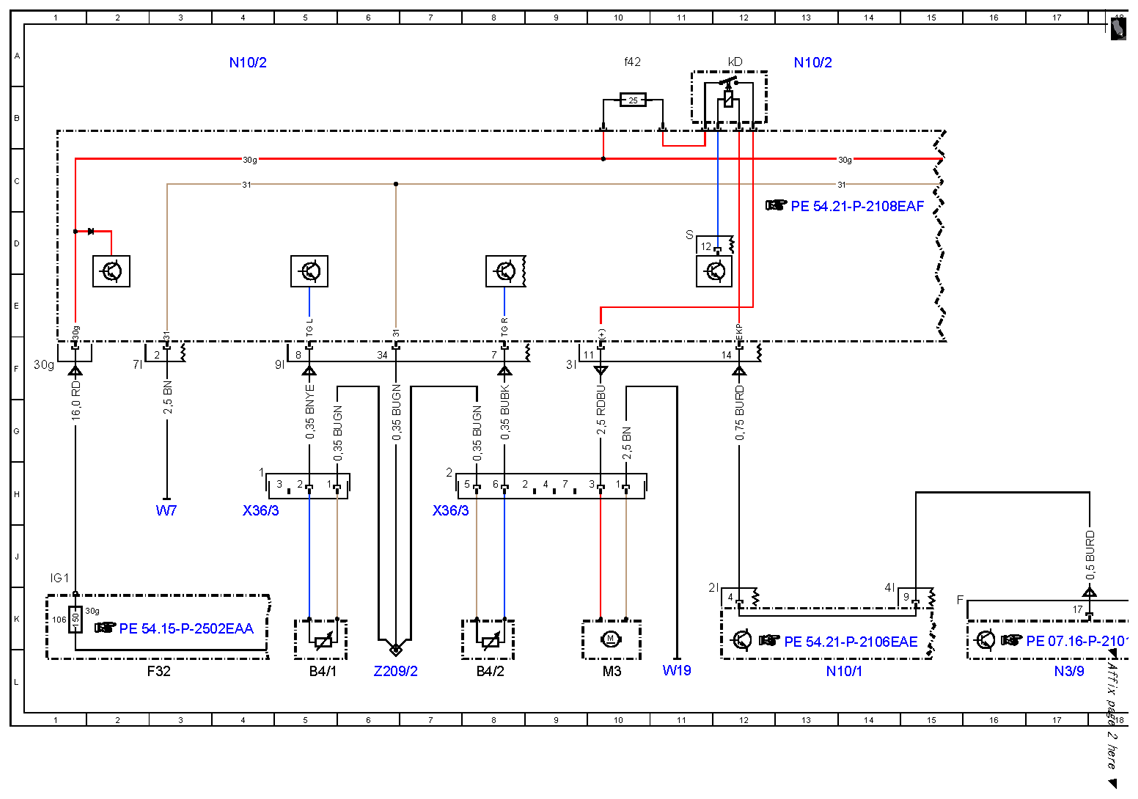

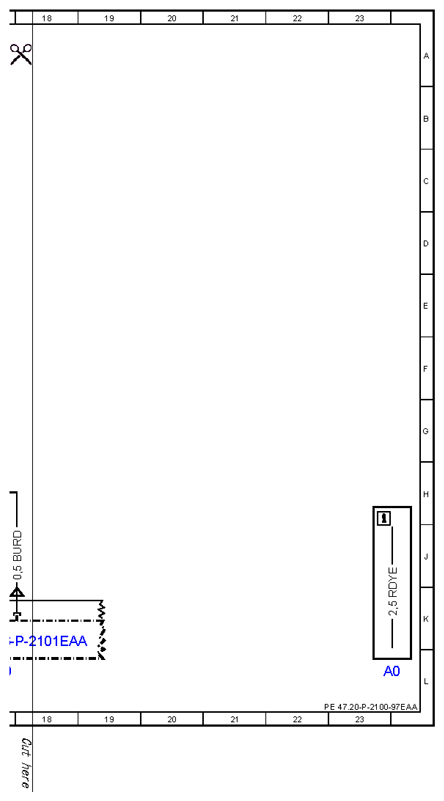

| A0 |
Color code key |
23L |
| B4/1 |
Left fuel level indicator sensor |
5L |
| B4/2 |
Right fuel level indicator sensor |
8L |
| F32 |
Front electrical prefuse box |
3L |
| F32f106 |
Prefuse 106 |
1K |
| M3 |
Fuel pump (FP) |
10L |
| N10/1 |
Front SAM control unit with fuse and relay module |
13L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
13A |
| N10/2f42 |
Fuse 42 |
10A |
| N10/2kD |
Fuel pump relay |
12A |
| N3/9 |
CDI control unit |
17L |
| W19 |
Right front seat crossmember ground point |
11L |
| W7 |
Right wheelhouse trunk ground point |
3H |
| X36/3 |
Fuel pump harness electrical connector |
4H |
| X36/3 |
Fuel pump harness electrical connector |
7H |
| Z209/2 |
Fuel pump control unit connector sleeve |
6L |
