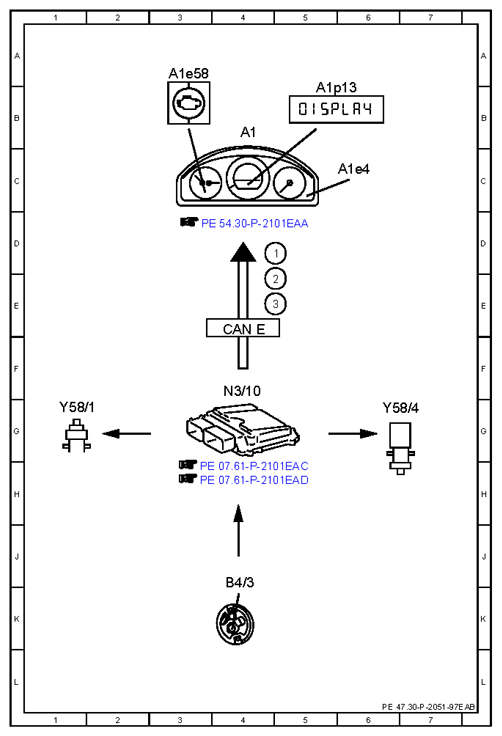

Electrical function diagram for system purging with leak test - PE47.30-P-2051-97EAB
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 4D |
| 2 | Instrument cluster, message | 4E |
| 3 | Fuel reserve warning lamp, actuation | 4E |
| A1 | Instrument cluster | 4B |
| A1e4 | Fuel reserve indicator lamp | 6C |
| A1e58 | Engine diagnosis indicator lamp | 3A |
| A1p13 | Multifunction display | 5B |
| B4/3 | Fuel tank pressure sensor | 4K |
| CAN E | Chassis CAN | 4E |
| N3/10 | ME-SFI [ME] control unit | 4F |
| Y58/1 | Purge control valve | 1G |
| Y58/4 | Activated charcoal filter shutoff valve | 6G |
