| 1 |
Circuit 15, status |
10H |
| 1 |
Circuit 15, status |
14A |
| 10 |
Close range radar sensors, signal |
16A |
| 10 |
Close range radar sensors, signal |
16A |
| 11 |
Far range radar sensor, signal |
14B |
| 12 |
Blind Spot Assist readiness and warning indicator, request |
10E |
| 12 |
Blind Spot Assist readiness and warning indicator, request |
10E |
| 12 |
Blind Spot Assist readiness and warning indicator, request |
10E |
| 13 |
Blind Spot Assist readiness and warning indicator, actuation |
31J |
| 14 |
Instrument cluster message, request |
10D |
| 14 |
Instrument cluster message, request |
10D |
| 15 |
Multifunction display, actuation |
22C |
| 16 |
Combination switch, status |
7B |
| 16 |
Combination switch, status |
8E |
| 16 |
Combination switch, status |
13A |
| 17 |
Warning tone, request |
21D |
| 17 |
Warning tone, request |
10D |
| 18 |
Warning buzzer, actuation |
24D |
| 19 |
ESP®, status |
7F |
| 19 |
ESP®, status |
13A |
| 2 |
Blind spot assist, status |
11E |
| 2 |
Blind spot assist, status |
13A |
| 20 |
Wheel-specific service brake braking torque, request |
4F |
| 20 |
Wheel-specific service brake braking torque, request |
10D |
| 21 |
Wheel-specific service brake braking torque, actuation |
4J |
| 22 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
7F |
| 22 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
4E |
| 22 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
12A |
| 23 |
Steering angle sensor, signal |
9B |
| 24 |
Steering angle, signal |
8D |
| 24 |
Steering angle, signal |
12A |
| 25 |
Steering wheel velocity, signal |
6F |
| 25 |
Steering wheel velocity, signal |
8D |
| 25 |
Steering wheel velocity, signal |
12A |
| 26 |
Tire pressure sensor, signal |
11A |
| 26 |
Tire pressure sensor, signal |
11A |
| 27 |
Tire pressure monitor, message |
6F |
| 27 |
Tire pressure monitor, message |
11A |
| 28 |
Accelerator pedal sensor, signal |
15L |
| 28 |
Accelerator pedal sensor, signal |
12G |
| 28 |
Accelerator pedal sensor, signal |
10A |
| 3 |
Engine running, signal |
11G |
| 3 |
Engine running, signal |
13A |
| 4 |
Drivetrain operational, signal |
11G |
| 4 |
Drivetrain operational, signal |
12A |
| 5 |
Wheel speed, signal |
8F |
| 5 |
Wheel speed, signal |
12A |
| 5 |
Wheel speed, signal |
2E |
| 6 |
Wheel rotation direction, signal |
8F |
| 6 |
Wheel rotation direction, signal |
12A |
| 6 |
Wheel rotation direction, signal |
2D |
| 7 |
Gear range, status |
17L |
| 7 |
Gear range, status |
11A |
| 7 |
Gear range, status |
11A |
| 8 |
Service brake, status |
11A |
| 8 |
Service brake, status |
7F |
| 9 |
Trailer recognition, status |
11F |
| 9 |
Trailer recognition, status |
11F |
| 9 |
Trailer recognition, status |
11F |

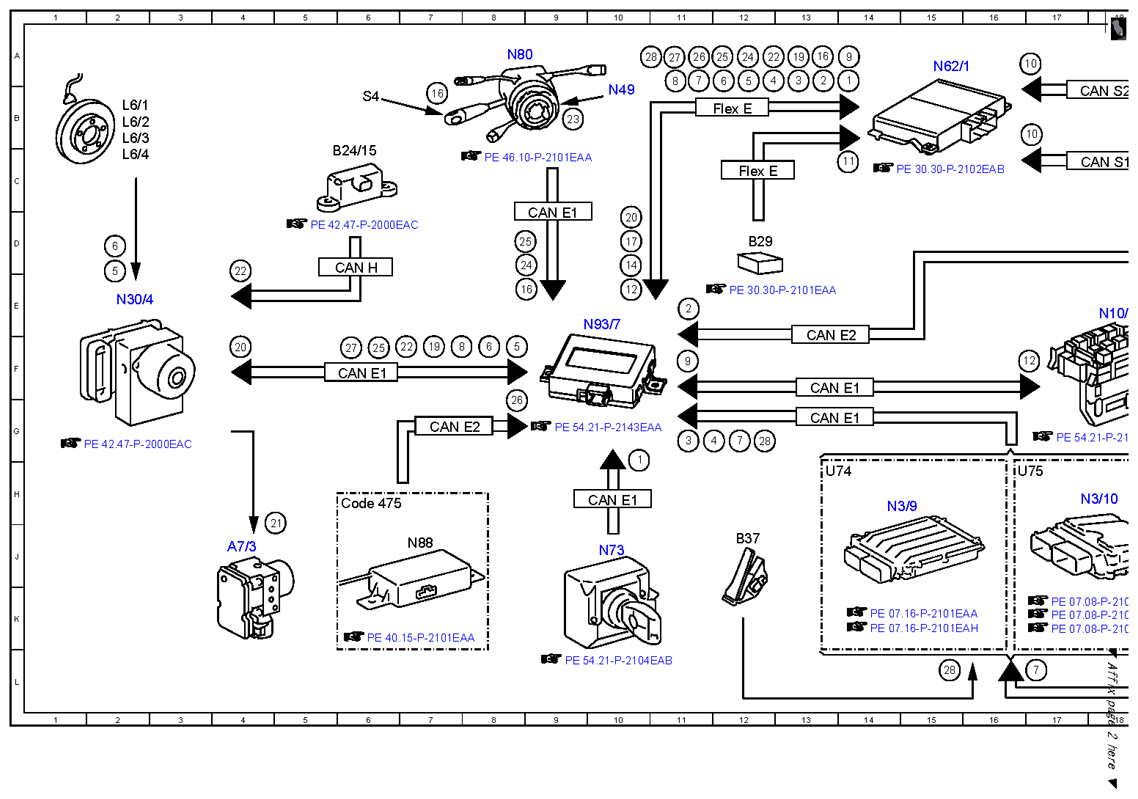

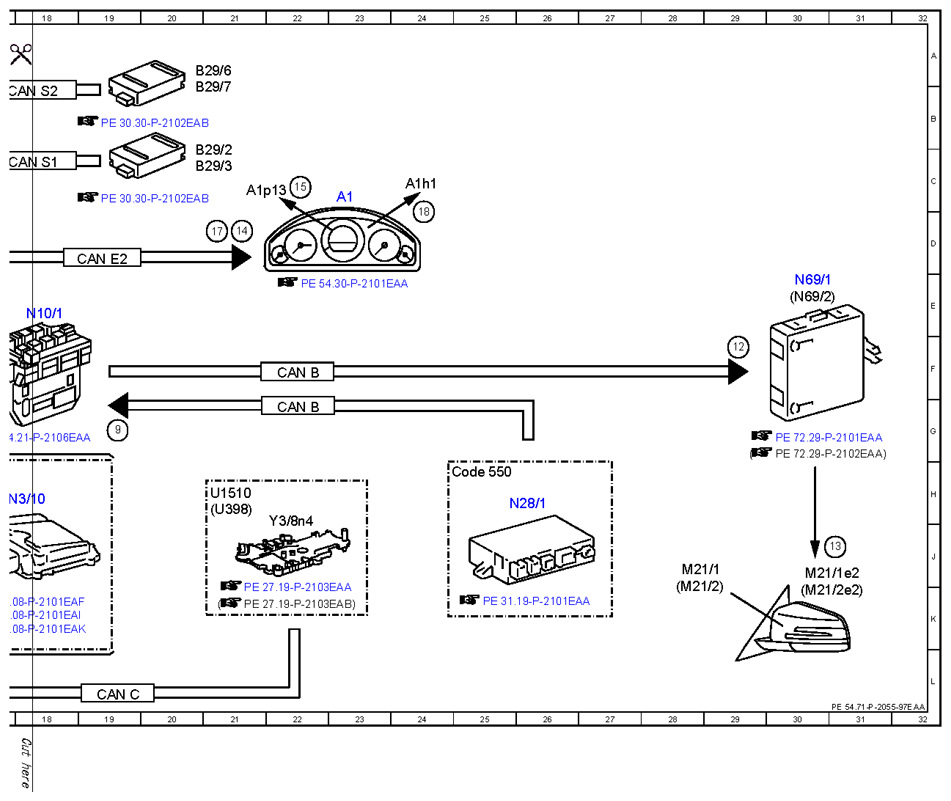

| A1 |
Instrument cluster |
23C |
| A1h1 |
Warning buzzer |
24C |
| A1p13 |
Multifunction display |
21C |
| A7/3 |
Traction system hydraulic unit |
4J |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
6C |
| B29 |
Front long-range radar sensor |
12D |
| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
21C |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
21C |
| B29/6 |
Left rear bumper radar sensor |
21A |
| B29/7 |
Right rear bumper radar sensor |
21B |
| B37 |
Accelerator pedal sensor |
12J |
| CAN B |
Interior CAN |
22F |
| CAN B |
Interior CAN |
22G |
| CAN C |
Drive train CAN |
19L |
| CAN E1 |
Chassis CAN 1 |
9D |
| CAN E1 |
Chassis CAN 1 |
6F |
| CAN E1 |
Chassis CAN 1 |
13G |
| CAN E1 |
Chassis CAN 1 |
10H |
| CAN E1 |
Chassis CAN 1 |
13F |
| CAN E2 |
Chassis CAN 2 |
13F |
| CAN E2 |
Chassis CAN 2 |
19D |
| CAN E2 |
Chassis CAN 2 |
7G |
| CAN H |
Vehicle dynamics CAN |
6D |
| CAN S1 |
Radar CAN 1 |
18C |
| CAN S2 |
Radar CAN 2 |
18B |
| Code 475 |
Tire pressure monitor |
6H |
| Code 550 |
Trailer hitch |
24H |
| Flex E |
Chassis FlexRay |
12C |
| Flex E |
Chassis FlexRay |
12B |
| L6/1 |
Left front axle RPM sensor |
2B |
| L6/2 |
Right front axle RPM sensor |
2B |
| L6/3 |
Left rear axle RPM sensor |
2B |
| L6/4 |
Right rear axle RPM sensor |
2C |
| M21/1 |
Left outside mirror |
28J |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
30J |
| M21/2 |
Right outside mirror |
28K |
| M21/2e2 |
Right Blind Spot Assist readiness and warning indicator |
30K |
| N10/1 |
Front SAM control unit with fuse and relay module |
18E |
| N28/1 |
Trailer recognition control unit |
25H |
| N3/10 |
ME-SFI [ME] control unit |
17H |
| N3/9 |
CDI control unit |
14H |
| N30/4 |
Electronic Stability Program control unit |
2E |
| N49 |
Steering angle sensor |
10B |
| N62/1 |
Radar sensors control unit |
15A |
| N69/1 |
Left front door control unit |
30E |
| N69/2 |
Right front door control unit |
30E |
| N73 |
Electronic ignition switch control unit |
10J |
| N80 |
Steering column module control unit |
8A |
| N88 |
Tire pressure monitor control unit |
6J |
| N93/7 |
Chassis gateway control unit |
9E |
| S4 |
Combination switch |
6B |
| U1510 |
Valid for transmission 722.9 |
21H |
| U398 |
Valid for transmission 725 (NAG3) |
21H |
| U74 |
Valid for diesel engines |
13H |
| U75 |
Valid for gasoline engines |
16H |
| Y3/8n4 |
Fully integrated transmission control control unit |
22J |
