| 1 |
Engine running, signal |
10H |
| 10 |
GPS, signal |
3H |
| 11 |
Time, signal |
11H |
| 11 |
Time, signal |
11B |
| 12 |
Dusk setting, signal |
11H |
| 12 |
Dusk setting, signal |
11H |
| 13 |
Steering angle sensor, signal |
22J |
| 14 |
Steering angle, signal |
11K |
| 15 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
7H |
| 16 |
Operation, signal |
9D |
| 16 |
Operation, signal |
12H |
| 17 |
CRUISE CONTROL lever, signal |
20H |
| 17 |
CRUISE CONTROL lever, signal |
11K |
| 18 |
Steering column adjustment switch, status |
21J |
| 18 |
Steering column adjustment switch, status |
11K |
| 19 |
Combination switch, status |
20J |
| 19 |
Combination switch, status |
12K |
| 2 |
Drivetrain operational, signal |
11H |
| 20 |
Hands-Off-Detection, status |
12G |
| 20 |
Hands-Off-Detection, status |
12G |
| 3 |
ATTENTION ASSIST, status |
10H |
| 3 |
ATTENTION ASSIST, status |
11B |
| 4 |
Instrument cluster message, request |
12E |
| 4 |
Instrument cluster message, request |
14B |
| 5 |
Warning message issue, request |
13B |
| 5 |
Warning message issue, request |
5D |
| 5 |
Warning message issue, request |
12F |
| 6 |
Warning tone, request |
12F |
| 6 |
Warning tone, request |
12F |
| 7 |
Audio/COMAND display, actuation |
4C |
| 8 |
Low voltage differential signal video signal data transfer, signal |
3C |
| 9 |
Multifunction steering wheel button group, signal |
22G |
| 9 |
Multifunction steering wheel button group, signal |
10K |
| 9 |
Multifunction steering wheel button group, signal |
22D |
| 9 |
Multifunction steering wheel button group, signal |
12D |
| 9 |
Multifunction steering wheel button group, signal |
12D |

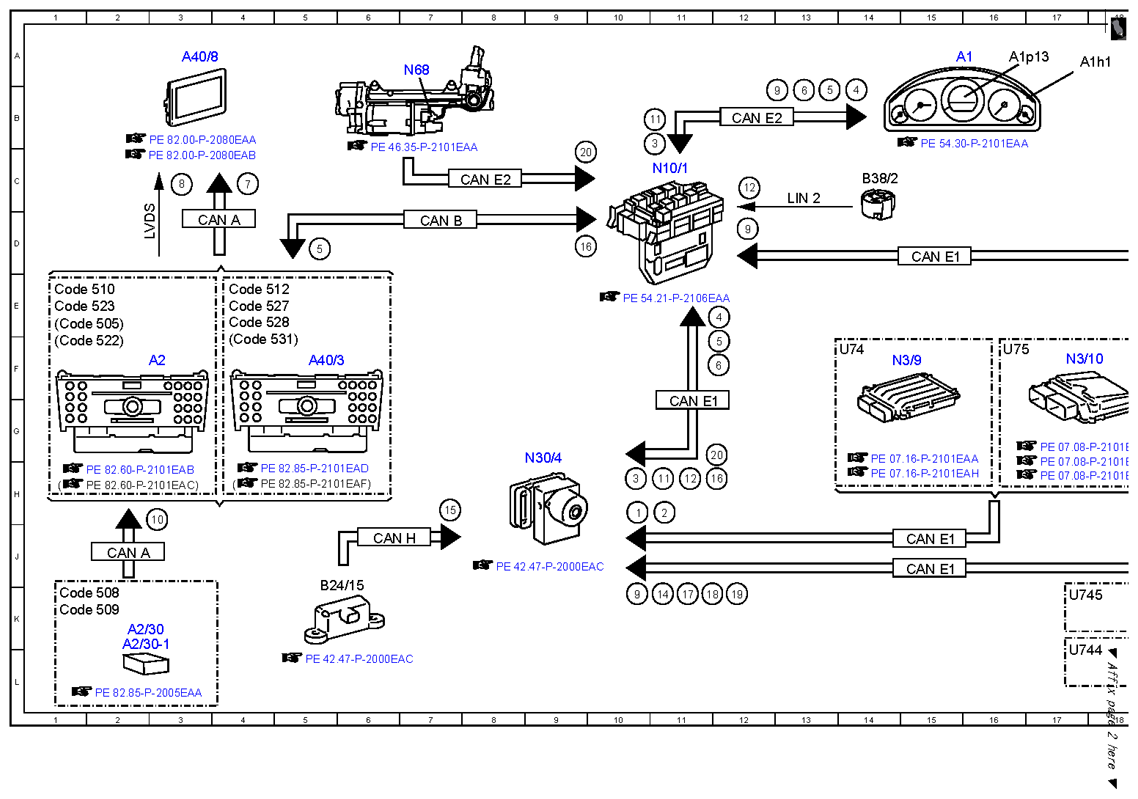

| A1 |
Instrument cluster |
15A |
| A1h1 |
Warning buzzer |
17A |
| A1p13 |
Multifunction display |
16A |
| A2 |
Radio |
2F |
| A2/30 |
Navigation module |
2K |
| A2/30-1 |
Cradle for navigation module |
2K |
| A40/3 |
COMAND control unit |
5F |
| A40/8 |
Audio/COMAND display |
3A |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
5K |
| B38/2 |
Rain/light sensor |
14C |
| CAN A |
Telematics CAN |
2J |
| CAN A |
Telematics CAN |
3D |
| CAN B |
Interior CAN |
7D |
| CAN E1 |
Chassis CAN 1 |
15J |
| CAN E1 |
Chassis CAN 1 |
15J |
| CAN E1 |
Chassis CAN 1 |
11G |
| CAN E1 |
Chassis CAN 1 |
15D |
| CAN E2 |
Chassis CAN 2 |
12B |
| CAN E2 |
Chassis CAN 2 |
8C |
| CAN H |
Vehicle dynamics CAN |
6J |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
1E |
| Code 508 |
Navigation module preinstallation |
1K |
| Code 509 |
Navigation module |
1K |
| Code 510 |
Audio 20 with CD changer |
1E |
| Code 512 |
COMAND APS with DVD changer |
4E |
| Code 522 |
Audio 20 radio |
1F |
| Code 523 |
Audio 20 radio |
1E |
| Code 527 |
COMAND APS (with navigation) |
4E |
| Code 528 |
COMAND with DVD changer |
4E |
| Code 531 |
COMAND APS |
4F |
| LIN 2 |
Wiper/inside rearview mirror LIN |
13C |
| LIN E1 |
Steering LIN |
22F |
| LVDS |
Low voltage differential signal |
2D |

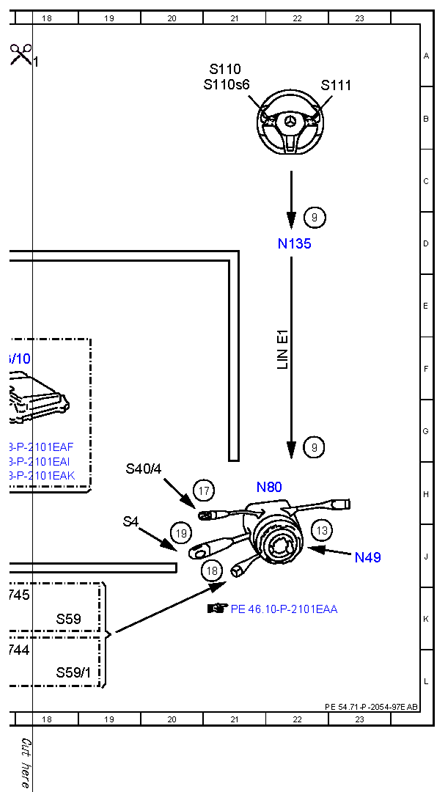

| N10/1 |
Front SAM control unit with fuse and relay module |
11C |
| N135 |
Steering wheel electronics |
22D |
| N3/10 |
ME-SFI [ME] control unit |
17F |
| N3/9 |
CDI control unit |
14F |
| N30/4 |
Electronic Stability Program control unit |
9H |
| N49 |
Steering angle sensor |
23J |
| N68 |
Electrical power steering control unit |
7A |
| N80 |
Steering column module control unit |
21H |
| S110 |
Left multifunction steering wheel button group |
21A |
| S110s6 |
OK button |
21B |
| S111 |
Right multifunction steering wheel button group |
22B |
| S4 |
Combination switch |
19J |
| S40/4 |
Cruise control lever |
19H |
| S59 |
Steering column adjustment switch |
18K |
| S59/1 |
Steering column adjustment and steering wheel heater switch |
18L |
| U74 |
Valid for diesel engines |
14F |
| U744 |
Valid for steering wheel heater |
17L |
| U745 |
Not valid for steering wheel heater |
17K |
| U75 |
Valid for gasoline engines |
16F |
