Remove/install sensors for Blind Spot Assist - AR54.71-P-0100EC
MODEL 207 with CODE 234 (Blind Spot Assist)
MODEL 207 with CODE 237 (Active Blind Spot Assist)
Shown on MODEL 207.3 with ENGINE 271

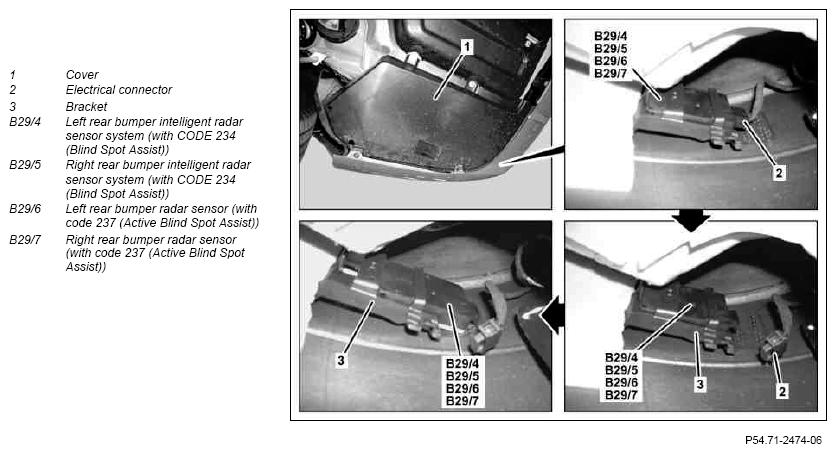

Fig 1: Identifying Sensors For Blind Spot Assist Remove/Install Components - Shown On Model 207.3 With Engine 271
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | ||
| 2 | Remove rear bumper | MODEL 207 as of 01.06.13 | |
| AR88.20-P-2200EW | |||
| 3 | Remove cover (1) | For vehicles with ENGINE 271, 651 When removing the right rear intelligent bumper radar sensor (B29/5) or right rear bumper radar sensor (B29/7). |
|
| 4.1 | Detach electrical connection (2) from left rear intelligent bumper radar sensor (B294) or right rear bumper intelligent radar sensor (B295) | MODEL 207 with CODE 234 (Blind Spot Assist) |
|
| 4.2 | Detach electrical connection (2) from left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) | MODEL 207 with CODE 237 (Active Blind Spot Assist) |
|
| 5.1 | Extend left rear intelligent bumper radar sensor (B29/4) or right rear intelligent bumper radar sensor (B29/5) from bracket (3) and remove | MODEL 207 with CODE 234 (Blind Spot Assist) |
|
| 5.2 | Extend left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) from bracket (3) and remove | MODEL 207 with CODE 237 (Active Blind Spot Assist) |
|
| 6 | Install in the reverse order |
