Fanfare position of components - GF54.35-P-0001-01CA

Shown on model 207.3

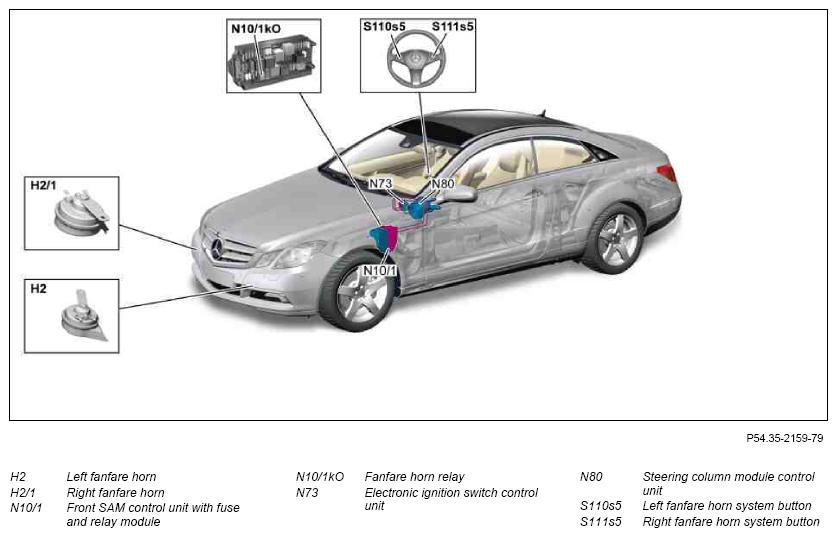

Fig 1: Identifying Fanfare Horns Components - Shown On Model 207.3

G10081820

Courtesy of MERCEDES-BENZ USA
