Fanfare horns block diagram - GF54.35-P-0001-03CA

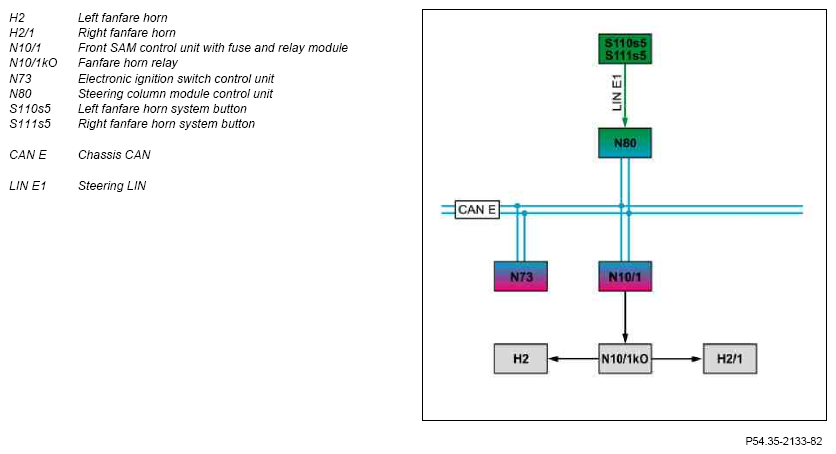

Fig 1: Fanfare Horns Block Diagram

G10081821

Courtesy of MERCEDES-BENZ USA
