| A0 |
Color code key |
32L |
| A2 |
Radio |
13L |
| A2/19 |
Rear window antenna FM antenna amplifier |
23L |

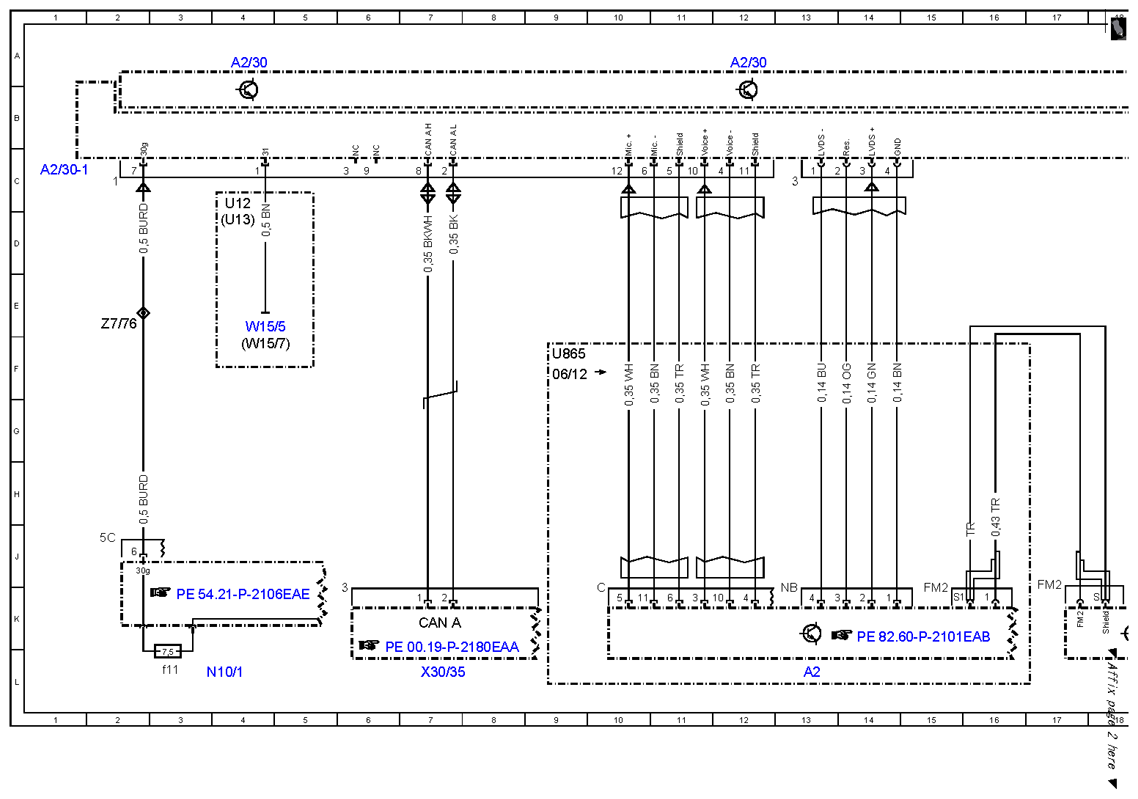

| A2/30 |
Navigation module |
4A |
| A2/30 |
Navigation module |
12A |
| A2/30 |
Navigation module |
20A |
| A2/30 |
Navigation module |
25A |
| A2/30-1 |
Cradle for navigation module |
1C |

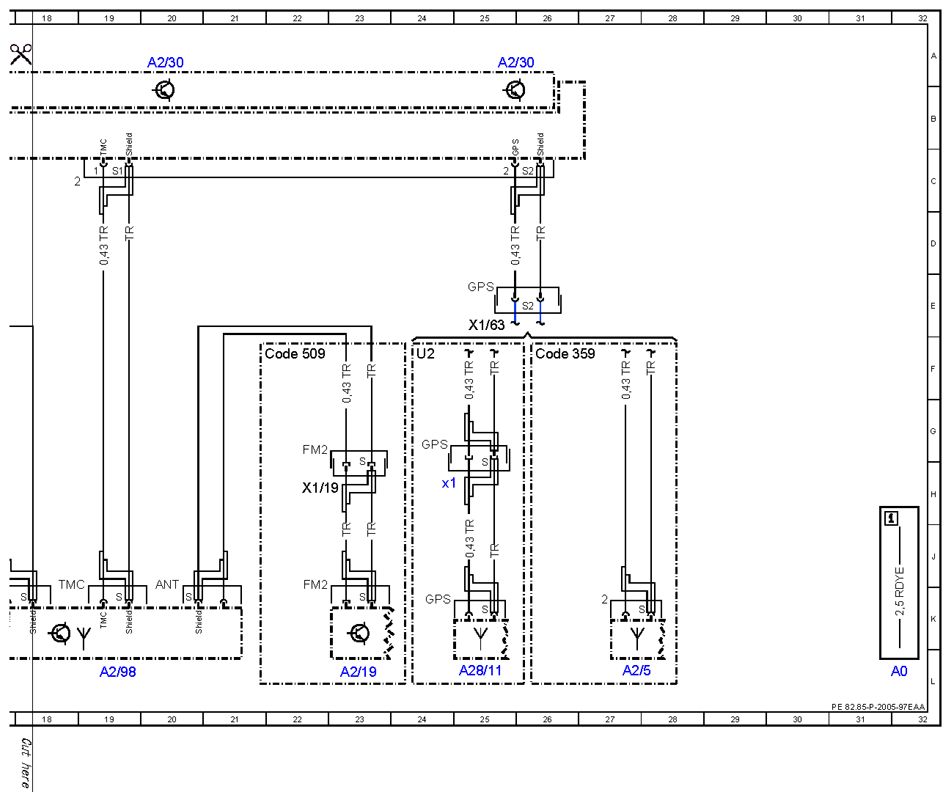

| A2/5 |
Global positioning system antenna splitter |
27L |
| A2/98 |
FM/TMC antenna splitter |
19L |
| A28/11 |
Multifunction antenna |
25L |
| A28/11x1 |
Multifunction antenna electrical connector |
24H |
| CAN A |
Telematics CAN |
7K |
| Code 359 |
TELEAID emergency call system |
26F |
| Code 509 |
Navigation module |
21F |
| N10/1 |
Front SAM control unit with fuse and relay module |
4L |
| N10/1f11 |
Fuse 11 |
3L |
| U12 |
Valid for left-hand drive vehicles |
4C |
| U13 |
Valid for right-hand drive vehicles |
4D |
| U2 |
Valid for all except USA |
24F |
| U865 |
Valid for Audio 20 |
9F |
| W15/5 |
Left front footwell ground point |
4E |
| W15/7 |
Right front footwell ground point |
4F |
| X1/19 |
AM/FM antenna amplifier electrical connector |
22H |
| X1/63 |
Antenna splitter, antenna amplifier and multifunction antenna electrical connector |
25E |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
7L |
| Z7/76 |
Cockpit circuit 30G connector sleeve |
2E |
