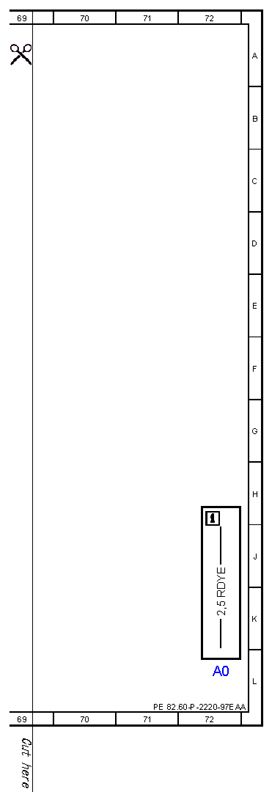

| A0 |
Color code key |
72L |
| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
31L |
| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
34L |
| A2/55 |
FM, AM and CL [ZV] antenna amplifier |
28L |

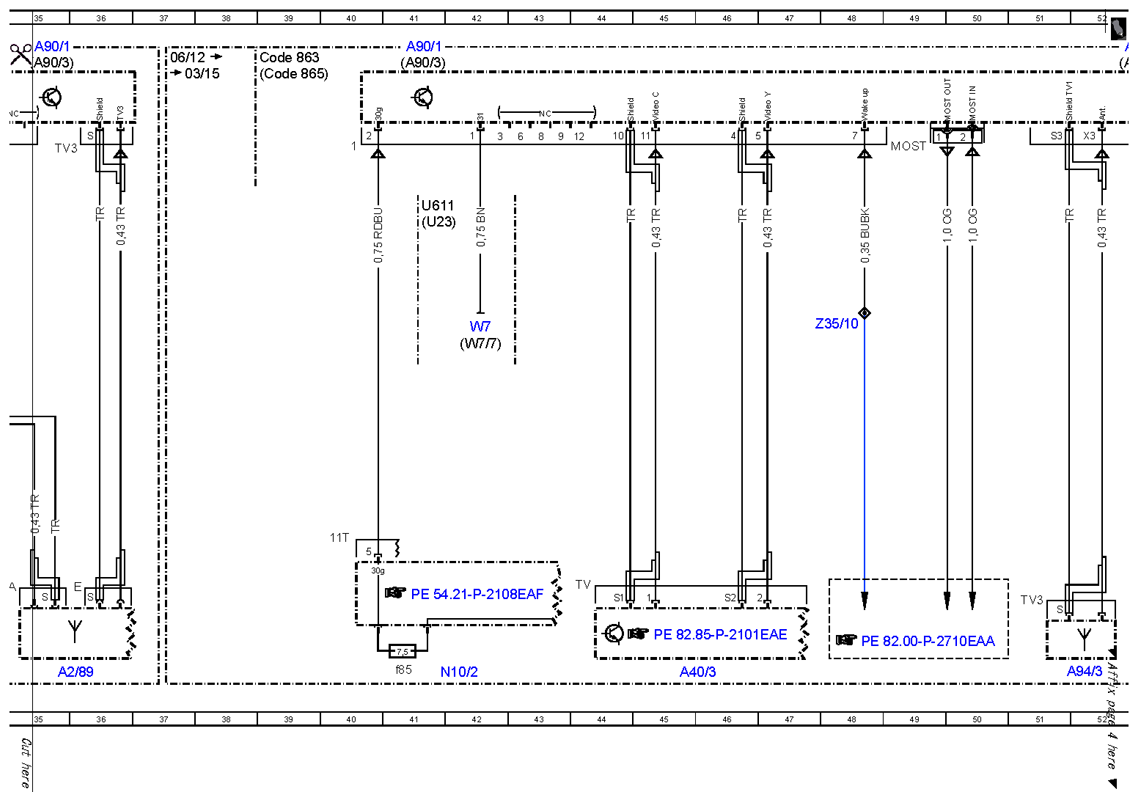

| A2/89 |
TV antenna splitter |
35L |
| A2/89 |
TV antenna splitter |
59L |
| A40/3 |
COMAND control unit |
9L |
| A40/3 |
COMAND control unit |
13L |
| A40/3 |
COMAND control unit |
45L |
| A90/1 |
TV tuner (analog/digital) |
4A |
| A90/1 |
TV tuner (analog/digital) |
13A |
| A90/1 |
TV tuner (analog/digital) |
20A |
| A90/1 |
TV tuner (analog/digital) |
28A |
| A90/1 |
TV tuner (analog/digital) |
35A |
| A90/1 |
TV tuner (analog/digital) |
41A |
| A90/1 |
TV tuner (analog/digital) |
52A |
| A90/1 |
TV tuner (analog/digital) |
58A |
| A90/3 |
TV digital tuner |
4A |
| A90/3 |
TV digital tuner |
12A |
| A90/3 |
TV digital tuner |
20A |
| A90/3 |
TV digital tuner |
28A |
| A90/3 |
TV digital tuner |
35A |
| A90/3 |
TV digital tuner |
41A |
| A90/3 |
TV digital tuner |
52A |
| A90/3 |
TV digital tuner |
58A |

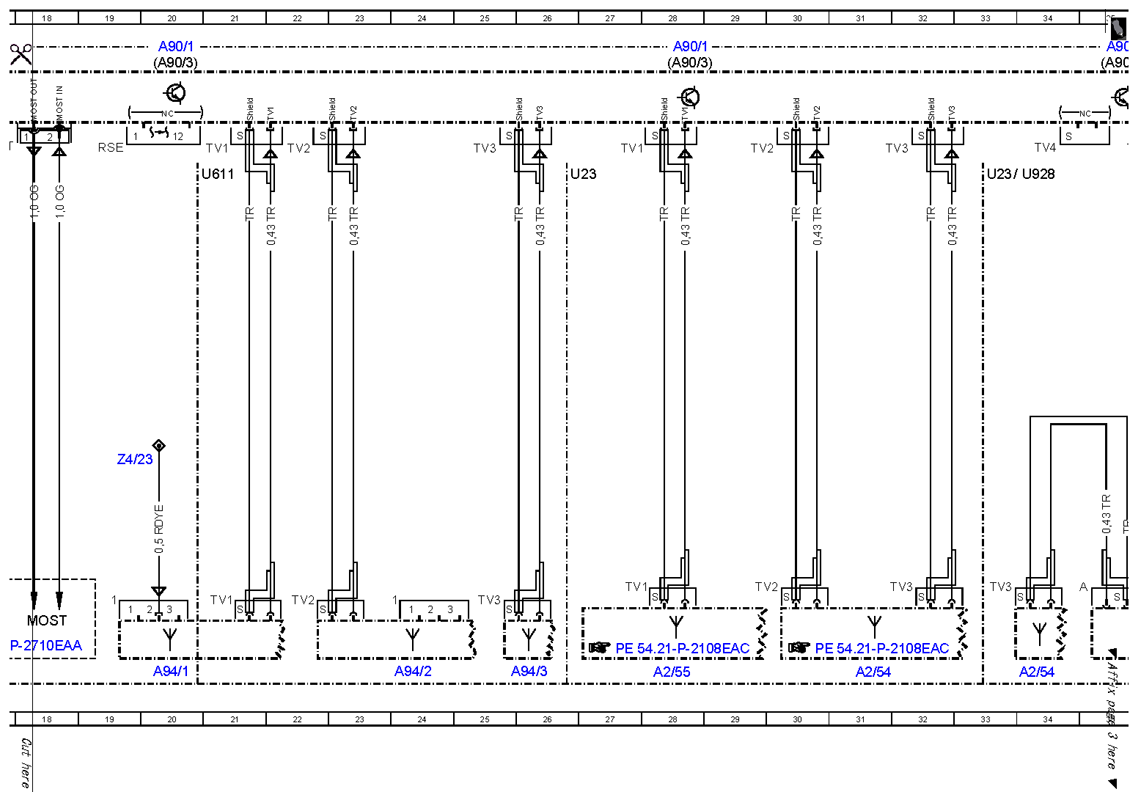

| A94/1 |
TV 1 antenna amplifier |
20L |
| A94/1 |
TV 1 antenna amplifier |
53L |
| A94/2 |
TV 2 and KEYLESS GO antenna amplifier |
24L |
| A94/2 |
TV 2 and KEYLESS GO antenna amplifier |
55L |
| A94/2 |
TV 2 and KEYLESS GO antenna amplifier |
61L |
| A94/3 |
TV 3 antenna amplifier |
26L |
| A94/3 |
TV 3 antenna amplifier |
52L |
| Code 498 |
Japan version |
6G |
| Code 537 |
Digital radio |
56F |
| Code 863 |
Digital/analog TV tuner |
1A |
| Code 863 |
Digital/analog TV tuner |
39A |
| Code 865 |
TV tuner (digital) |
1B |
| Code 865 |
TV tuner (digital) |
39A |
| MOST |
Media Oriented System Transport |
18K |
| MOST |
Media Oriented System Transport |
49C |

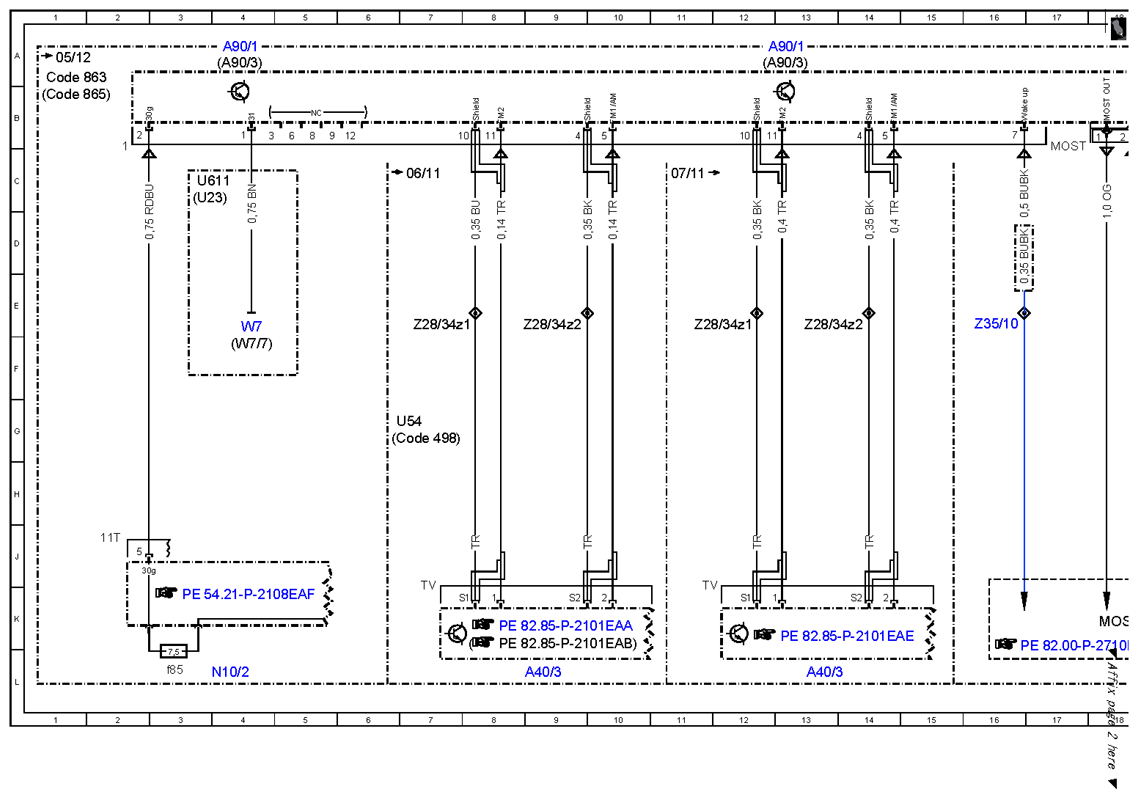

| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
42L |
| N10/2f85 |
Fuse 85 |
3L |
| N10/2f85 |
Fuse 85 |
41L |

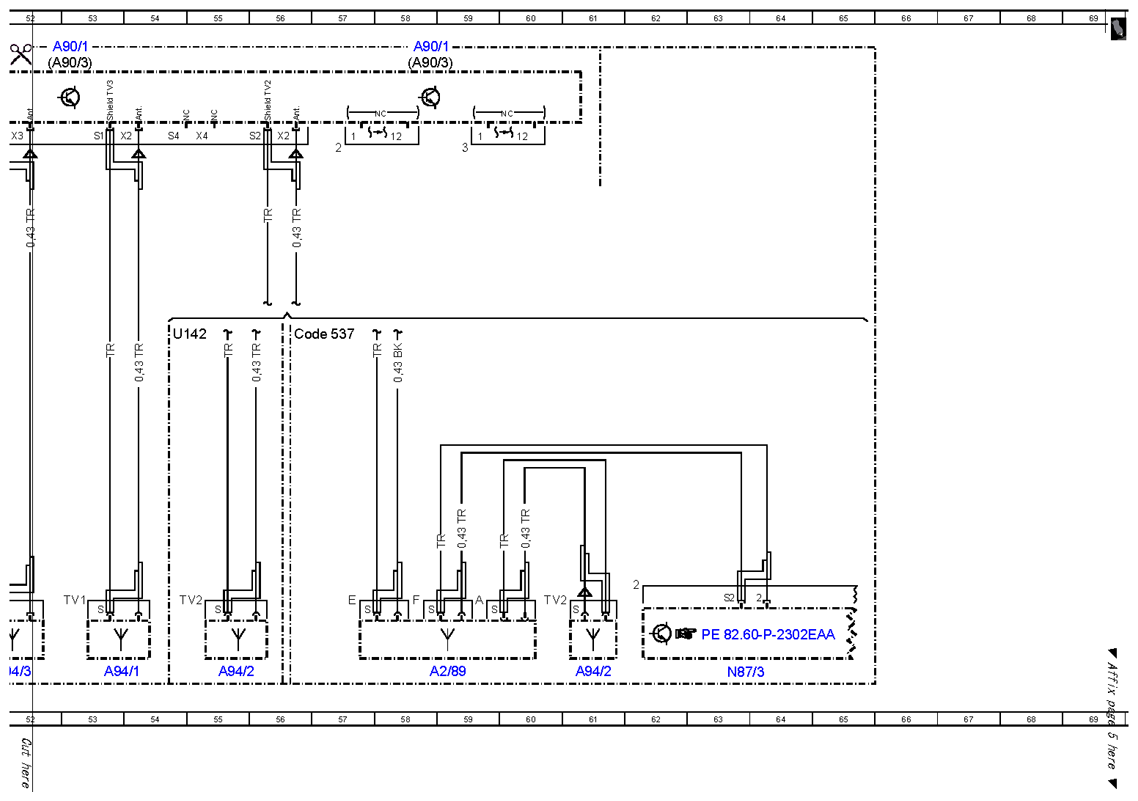

| N87/3 |
Digital Audio Broadcasting control unit |
63L |
| U142 |
Valid without Digital Audio Broadcasting |
54F |
| U23 |
Valid for convertibles |
3C |
| U23 |
Valid for convertibles |
26C |
| U23 |
Valid for convertibles |
33C |
| U23 |
Valid for convertibles |
41D |
| U54 |
Valid for all except Japan |
6G |
| U611 |
Valid for Coupe |
3C |
| U611 |
Valid for Coupe |
20C |
| U611 |
Valid for Coupe |
41C |
| U928 |
Valid for England |
34C |
| W7 |
Right wheelhouse trunk ground point |
4E |
| W7 |
Right wheelhouse trunk ground point |
42E |
| W7/7 |
Right spare wheel well ground point |
4F |
| W7/7 |
Right spare wheel well ground point |
42F |
| Z28/34z1 |
TV tuner shielding connector sleeve |
7E |
| Z28/34z1 |
TV tuner shielding connector sleeve |
12E |
| Z28/34z2 |
TV tuner shielding connector sleeve |
9E |
| Z28/34z2 |
TV tuner shielding connector sleeve |
13E |
| Z35/10 |
MOST wake-up signal connector sleeve |
16E |
| Z35/10 |
MOST wake-up signal connector sleeve |
48E |
| Z4/23 |
Antenna circuit 30 connector sleeve |
19H |
