| A0 |
Color code key |
48L |
| A2 |
Radio |
16L |
| A2 |
Radio |
29L |

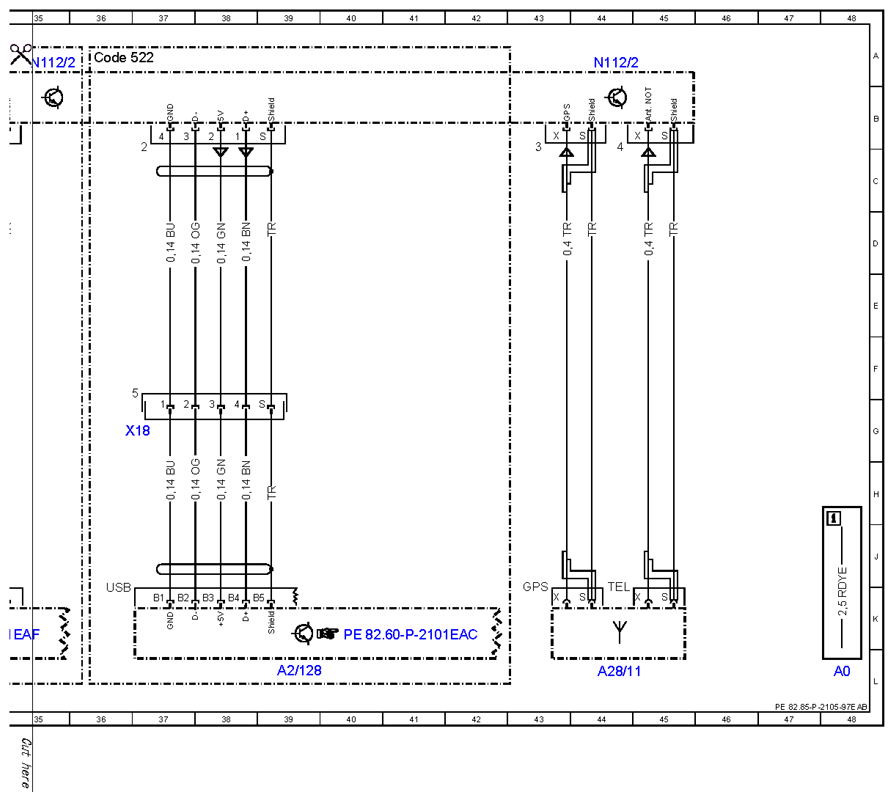

| A2/128 |
USB splitter |
39L |
| A28/11 |
Multifunction antenna |
44L |
| A40/3 |
COMAND control unit |
16L |
| A40/3 |
COMAND control unit |
29L |
| A40/3 |
COMAND control unit |
34L |
| CAN D |
Diagnostic CAN |
7K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
14D |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
27D |
| Code 522 |
Audio 20 radio |
14D |
| Code 522 |
Audio 20 radio |
27D |
| Code 522 |
Audio 20 radio |
36A |
| Code 531 |
COMAND APS |
14C |
| Code 531 |
COMAND APS |
27C |
| Code 531 |
COMAND APS |
32A |
| Code 810 |
Sound system |
9C |
| H4/27 |
Center instrument panel speaker |
25L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f87 |
Fuse 87 |
2L |

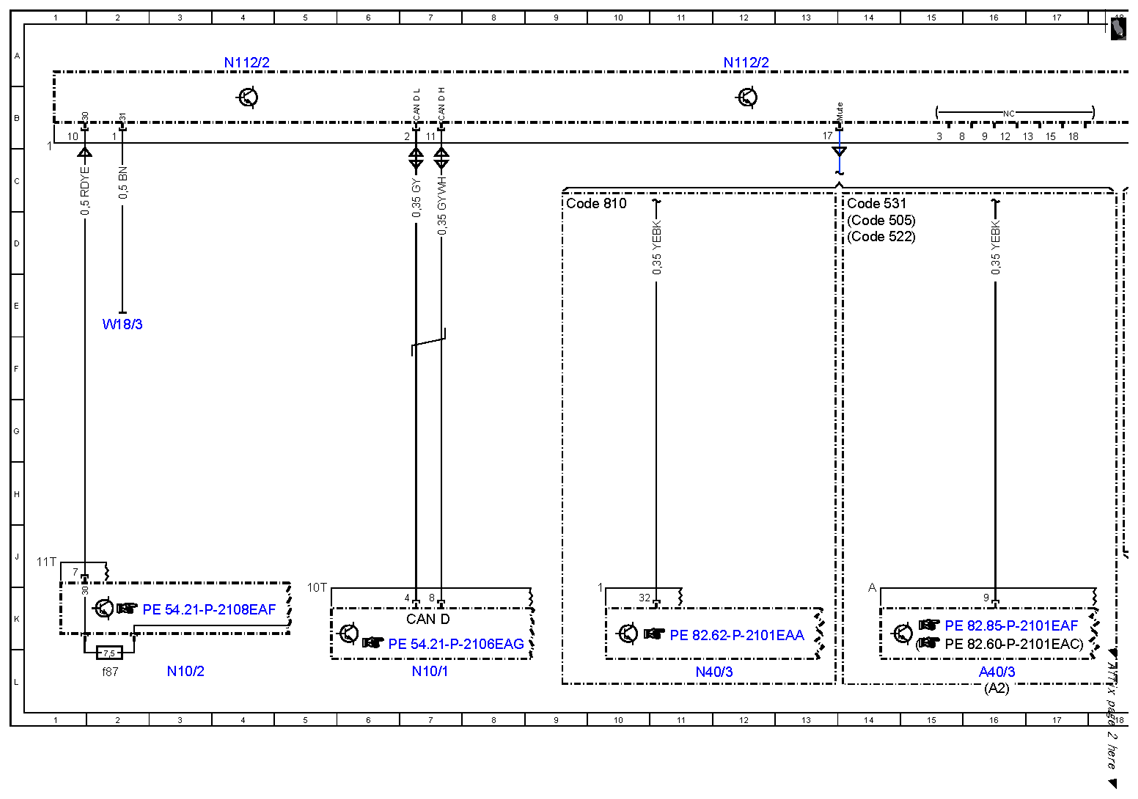

| N112/2 |
Telematics services communication module |
4A |
| N112/2 |
Telematics services communication module |
12A |
| N112/2 |
Telematics services communication module |
19A |
| N112/2 |
Telematics services communication module |
28A |
| N112/2 |
Telematics services communication module |
44A |
| N112/2 |
Telematics services communication module |
35A |
| N40/3 |
Sound system amplifier control unit |
11L |

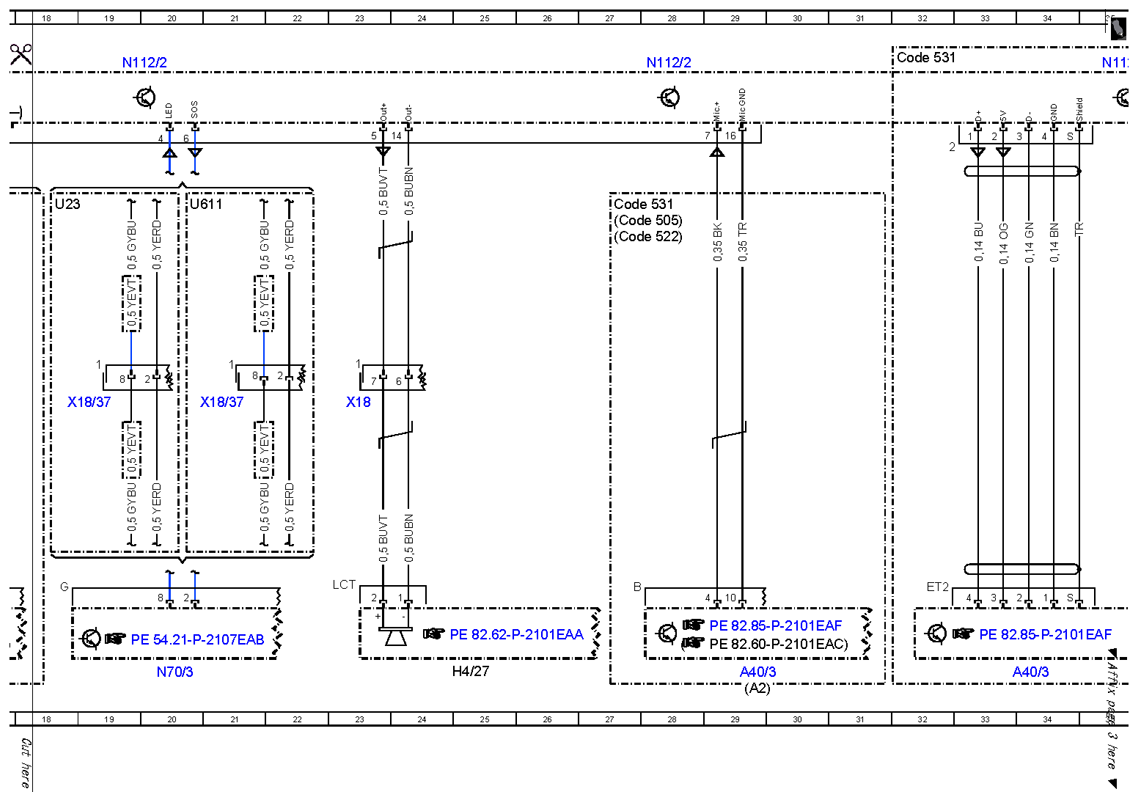

| N70/3 |
Overhead control panel electronics |
20L |
| U23 |
Valid for convertibles |
18C |
| U611 |
Valid for Coupe |
20C |
| W18/3 |
Left front seat crossmember ground point 2 |
2E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
23G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
37G |
| X18/37 |
Emergency call system button electrical connector |
19G |
| X18/37 |
Emergency call system button electrical connector |
21G |
