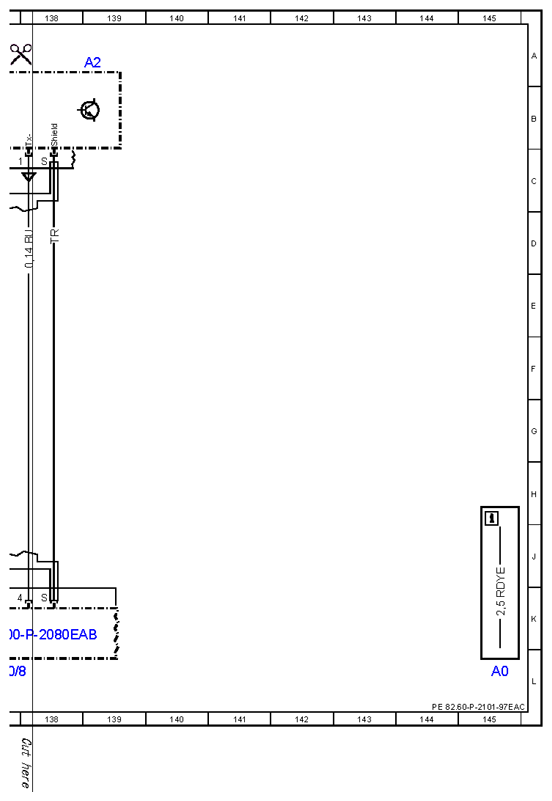

| A0 |
Color code key |
145L |
| A2 |
Radio |
4A |
| A2 |
Radio |
12A |
| A2 |
Radio |
20A |
| A2 |
Radio |
69A |
| A2 |
Radio |
85A |
| A2 |
Radio |
94A |
| A2 |
Radio |
109A |
| A2 |
Radio |
118A |
| A2 |
Radio |
125A |
| A2 |
Radio |
134A |
| A2 |
Radio |
139A |
| A2 |
Radio |
28A |
| A2 |
Radio |
36A |
| A2 |
Radio |
77A |
| A2 |
Radio |
45A |
| A2 |
Radio |
61A |
| A2 |
Radio |
101A |

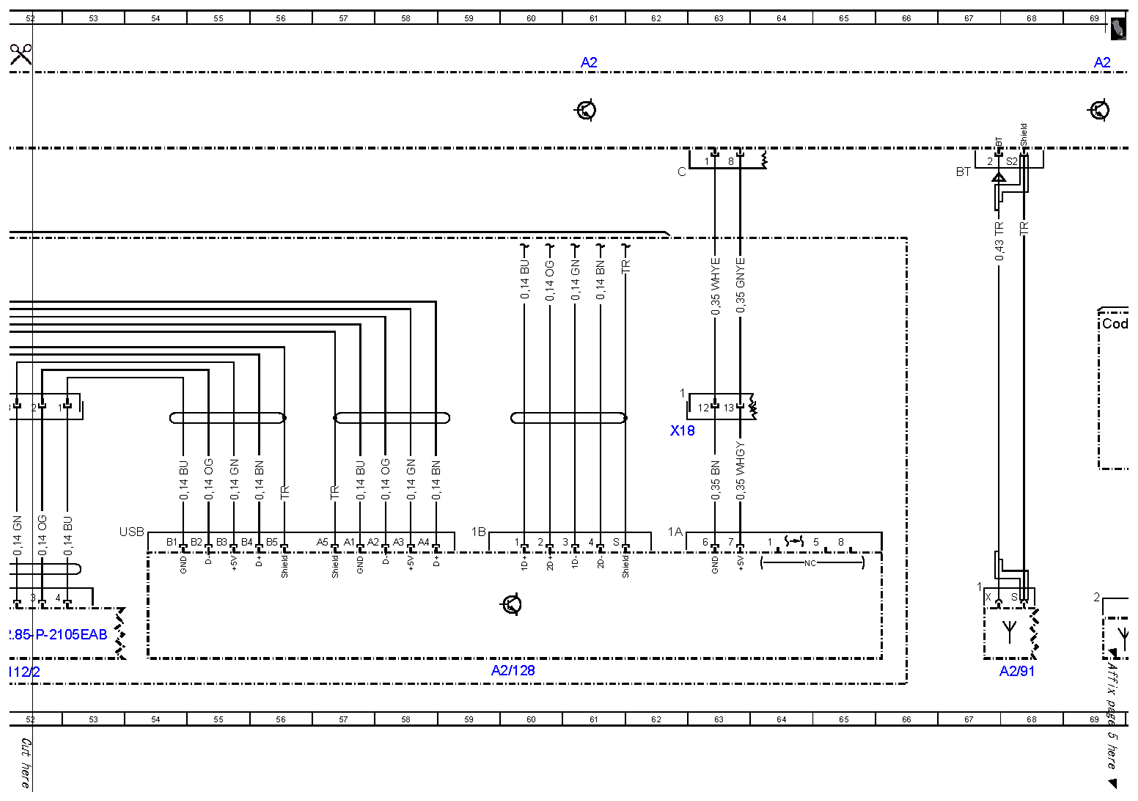

| A2/128 |
USB splitter |
60L |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
86L |
| A2/19 |
Rear window antenna FM antenna amplifier |
83L |

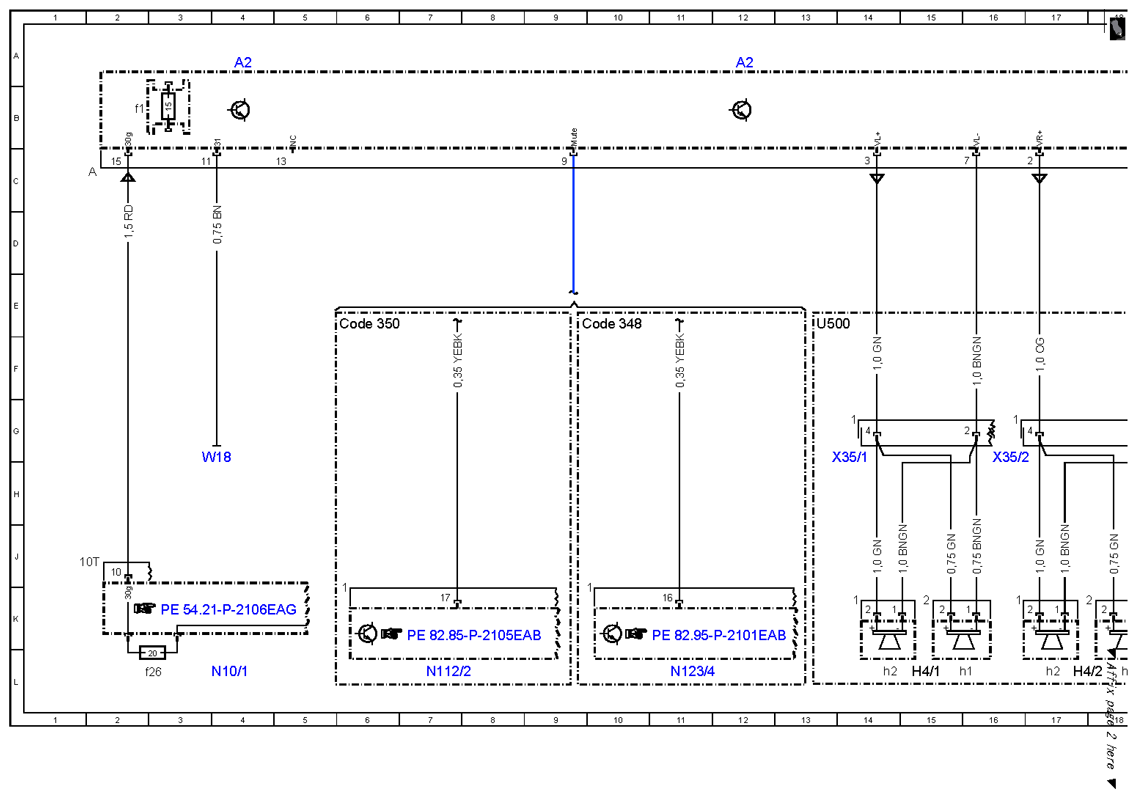

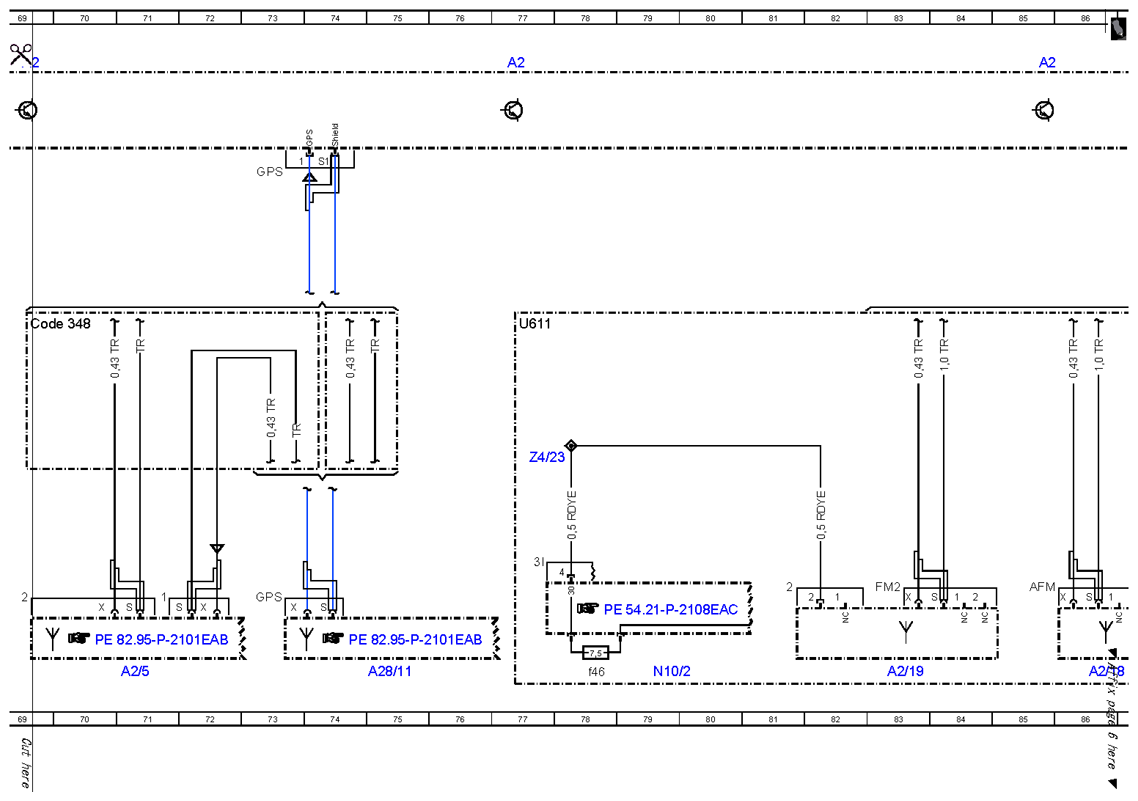

| A2/5 |
Global positioning system antenna splitter |
71L |

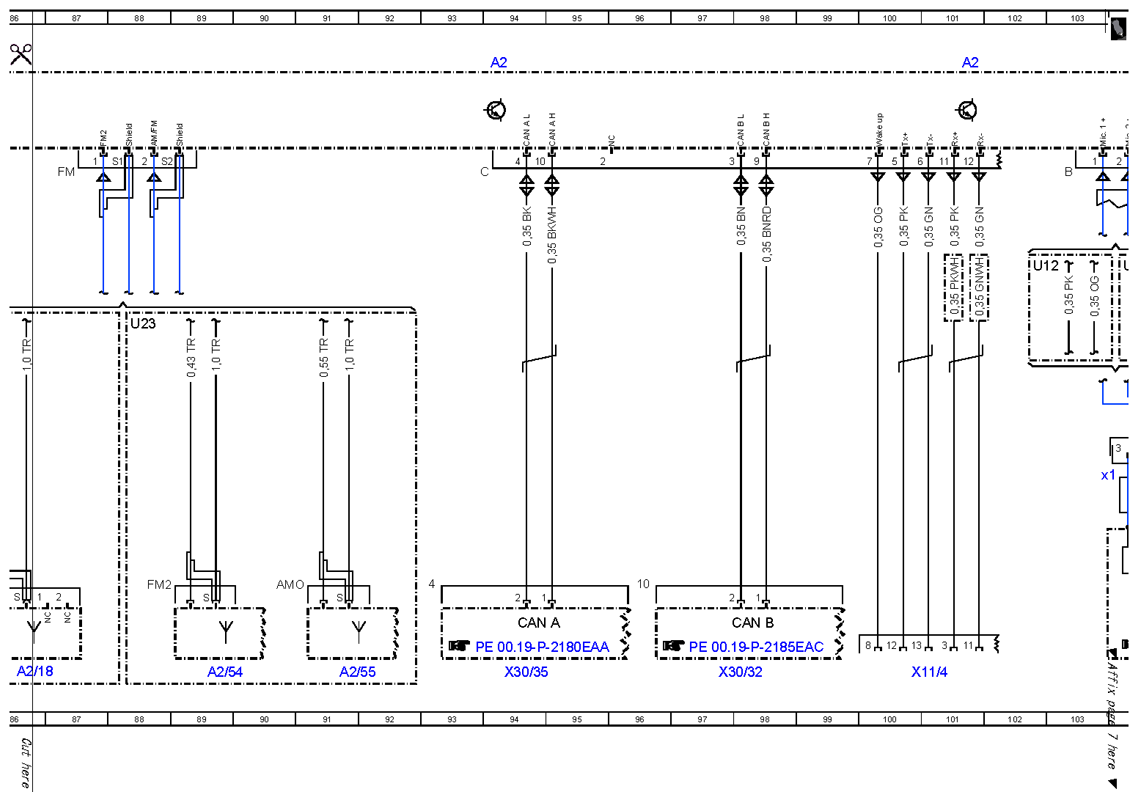

| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
89L |
| A2/55 |
FM, AM and CL [ZV] antenna amplifier |
91L |
| A2/91 |
Bluetooth antenna |
68L |
| A28/11 |
Multifunction antenna |
124L |
| A28/11 |
Multifunction antenna |
75L |
| A40/3f1 |
COMAND electrical fuse |
2B |
| A40/8 |
Audio/COMAND display |
137L |

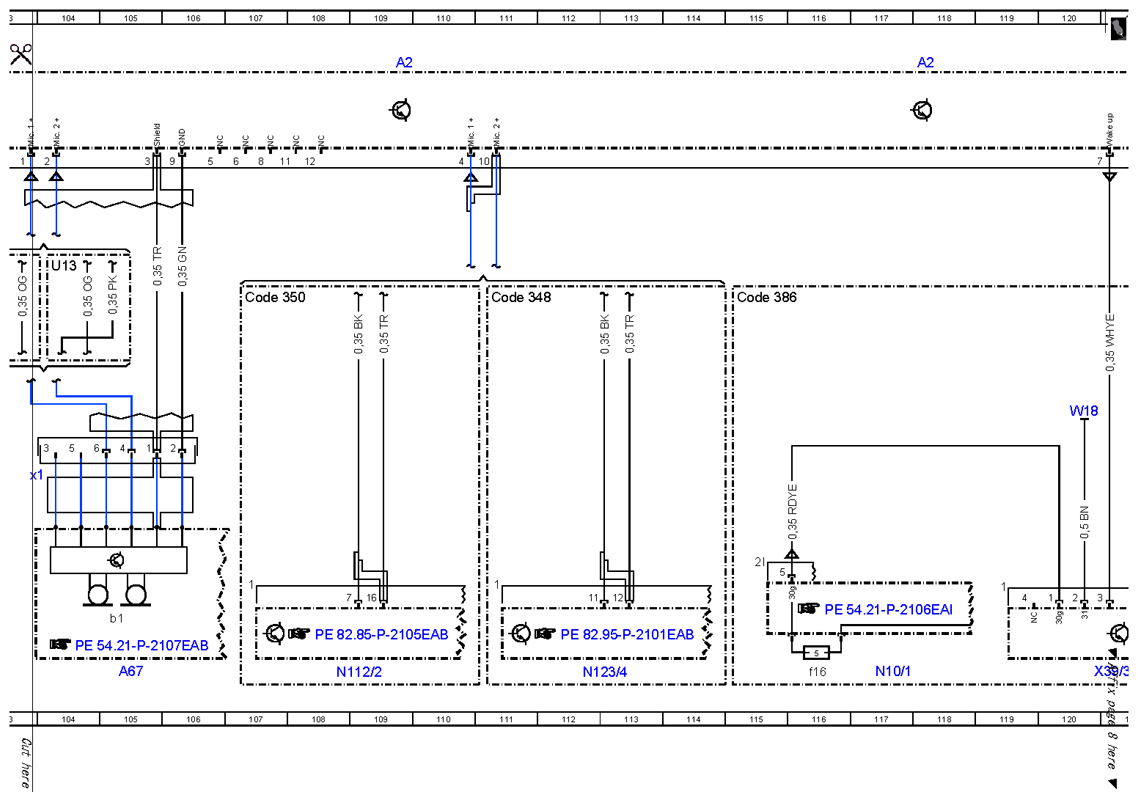

| A67 |
Inside rearview mirror |
105L |
| A67b1 |
Hands-free system microphone |
105K |
| A67x1 |
Inside rearview mirror unit electrical connector |
103H |

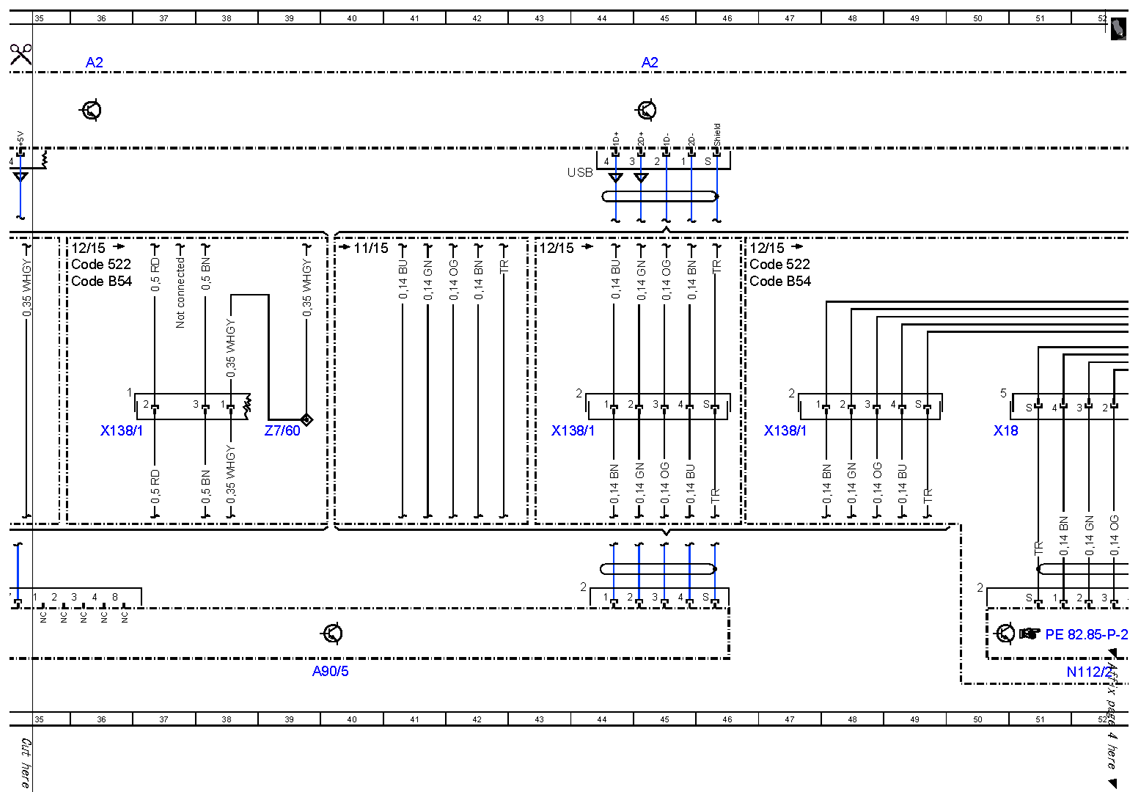

| A90/5 |
Multimedia connection unit |
40L |

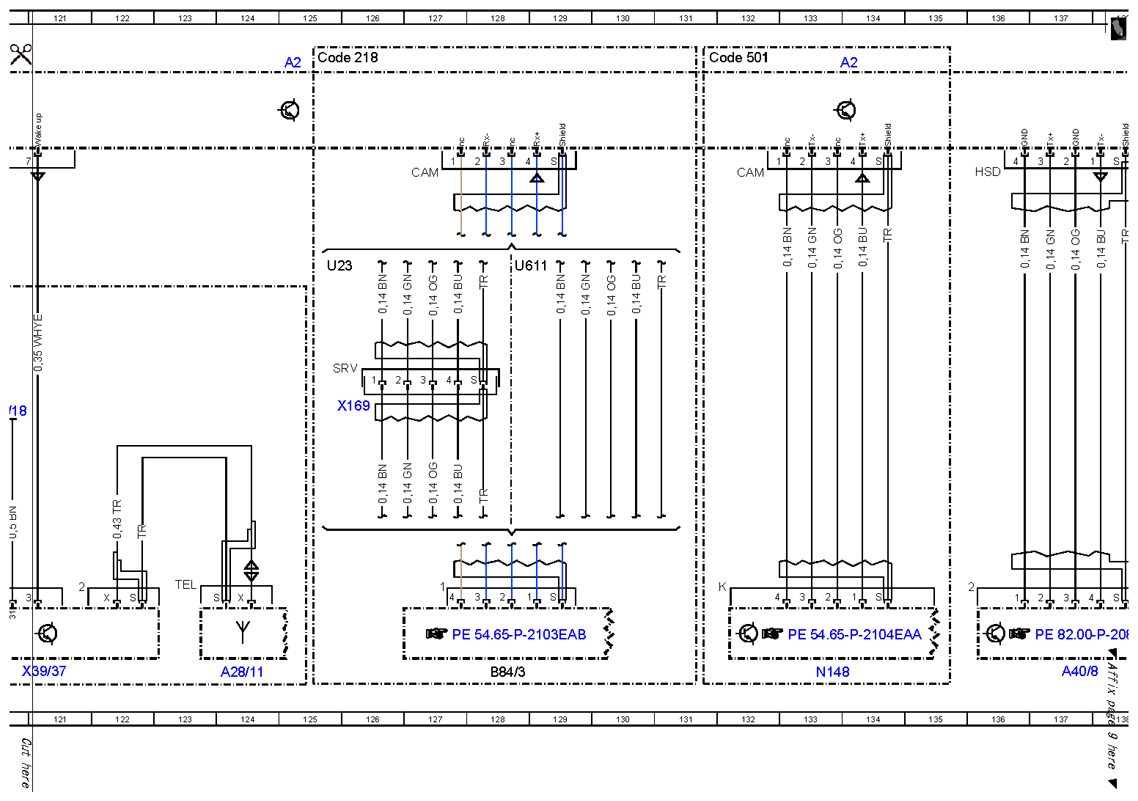

| B84/3 |
Backup camera |
128L |
| CAN A |
Telematics CAN |
94K |
| CAN B |
Interior CAN |
98K |
| Code 218 |
Backup camera |
125A |
| Code 348 |
Emergency call/assistance system |
9E |
| Code 348 |
Emergency call/assistance system |
111E |
| Code 348 |
Emergency call/assistance system |
69E |
| Code 350 |
E-call emergency call system Europe Generation 2 |
6E |
| Code 350 |
E-call emergency call system Europe Generation 2 |
107E |
| Code 386 |
Mobile phone |
115E |
| Code 501 |
360 degree camera |
131A |
| Code 522 |
Audio 20 radio |
46D |
| Code 522 |
Audio 20 radio |
36D |
| Code B54 |
Live Traffic Information |
46E |
| Code B54 |
Live Traffic Information |
36E |

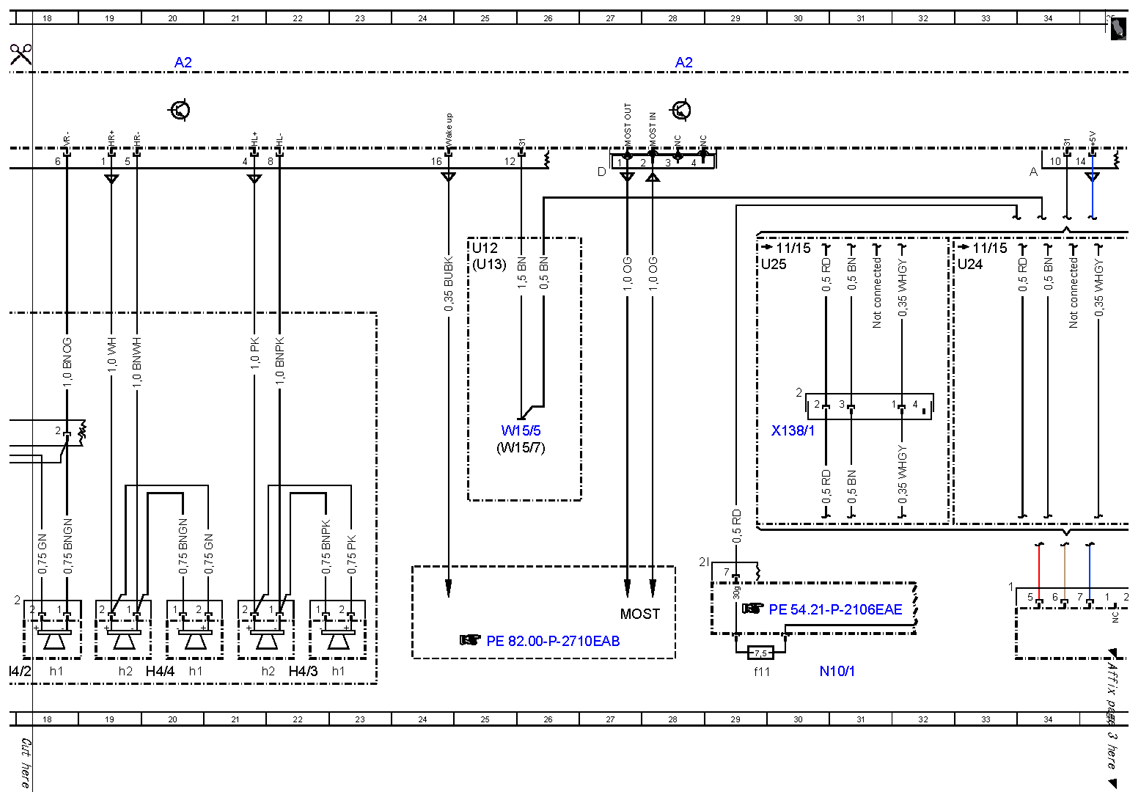

| H4/1 |
Left door speaker |
15L |
| H4/1h1 |
Left door tweeter |
15L |
| H4/1h2 |
Left door bass speaker |
14L |
| H4/2 |
Right door speaker |
17L |
| H4/2h1 |
Right door tweeter |
18L |
| H4/2h2 |
Right door bass speaker |
17L |
| H4/3 |
Left rear speaker |
22L |
| H4/3h1 |
Left rear tweeter |
23L |
| H4/3h2 |
Left rear bass speaker |
21L |
| H4/4 |
Right rear speaker |
20L |
| H4/4h1 |
Right rear tweeter |
20L |
| H4/4h2 |
Right rear bass speaker |
19L |
| MOST |
Media Oriented System Transport |
27K |
| N10/1 |
Front SAM control unit with fuse and relay module |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
117L |
| N10/1 |
Front SAM control unit with fuse and relay module |
30L |
| N10/1f11 |
Fuse 11 |
29L |
| N10/1f16 |
Fuse 16 |
116L |
| N10/1f26 |
Fuse 26 |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
79L |
| N10/2f46 |
Fuse 46 |
78L |
| N112/2 |
Telematics services communication module |
7L |
| N112/2 |
Telematics services communication module |
108L |
| N112/2 |
Telematics services communication module |
52L |
| N123/4 |
Emergency call system control unit |
11L |
| N123/4 |
Emergency call system control unit |
112L |
| N148 |
360° camera control unit |
133L |
| U12 |
Valid for left-hand drive vehicles |
102D |
| U12 |
Valid for left-hand drive vehicles |
25D |
| U13 |
Valid for right-hand drive vehicles |
104D |
| U13 |
Valid for right-hand drive vehicles |
25D |
| U23 |
Valid for convertibles |
88E |
| U23 |
Valid for convertibles |
125D |
| U24 |
Valid for manual transmission |
33D |
| U25 |
Valid for automatic transmission |
29D |
| U500 |
Not valid for sound system |
13E |
| U611 |
Valid for Coupe |
77E |
| U611 |
Valid for Coupe |
128D |
| W15/5 |
Left front footwell ground point |
25G |
| W15/7 |
Right front footwell ground point |
25G |
| W18 |
Left front seat crossmember ground point |
120G |
| W18 |
Left front seat crossmember ground point |
4H |
| X11/4 |
Diagnostic connector |
101L |
| X138/1 |
Front center console electrical connector |
30G |
| X138/1 |
Front center console electrical connector |
47G |
| X138/1 |
Front center console electrical connector |
44G |
| X138/1 |
Front center console electrical connector |
36G |
| X169 |
Backup camera electrical connector |
126G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
50G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
62G |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
97L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
94L |
| X35/1 |
Left front door electrical connector |
14H |
| X35/2 |
Right front door electrical connector |
16H |
| X39/37 |
Mobile phone electrical connector |
121L |
| Z4/23 |
Antenna circuit 30 connector sleeve |
77G |
| Z7/60 |
5V output connector sleeve |
39G |
