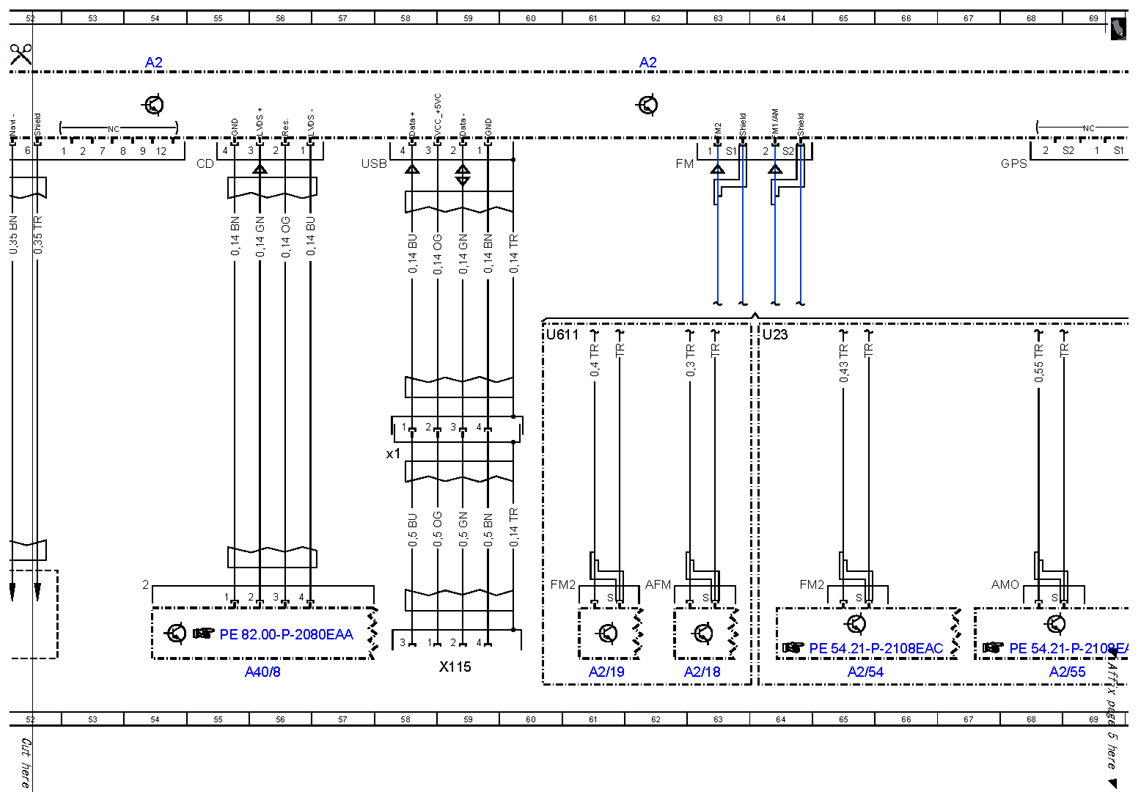

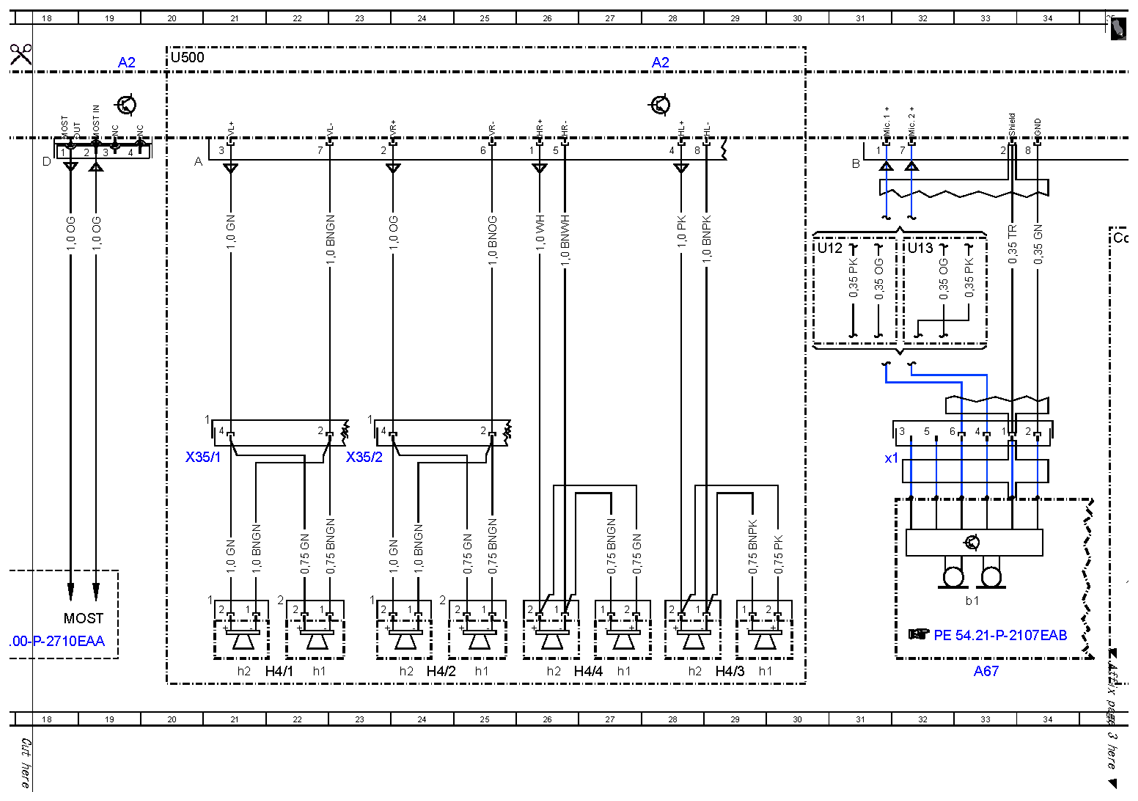

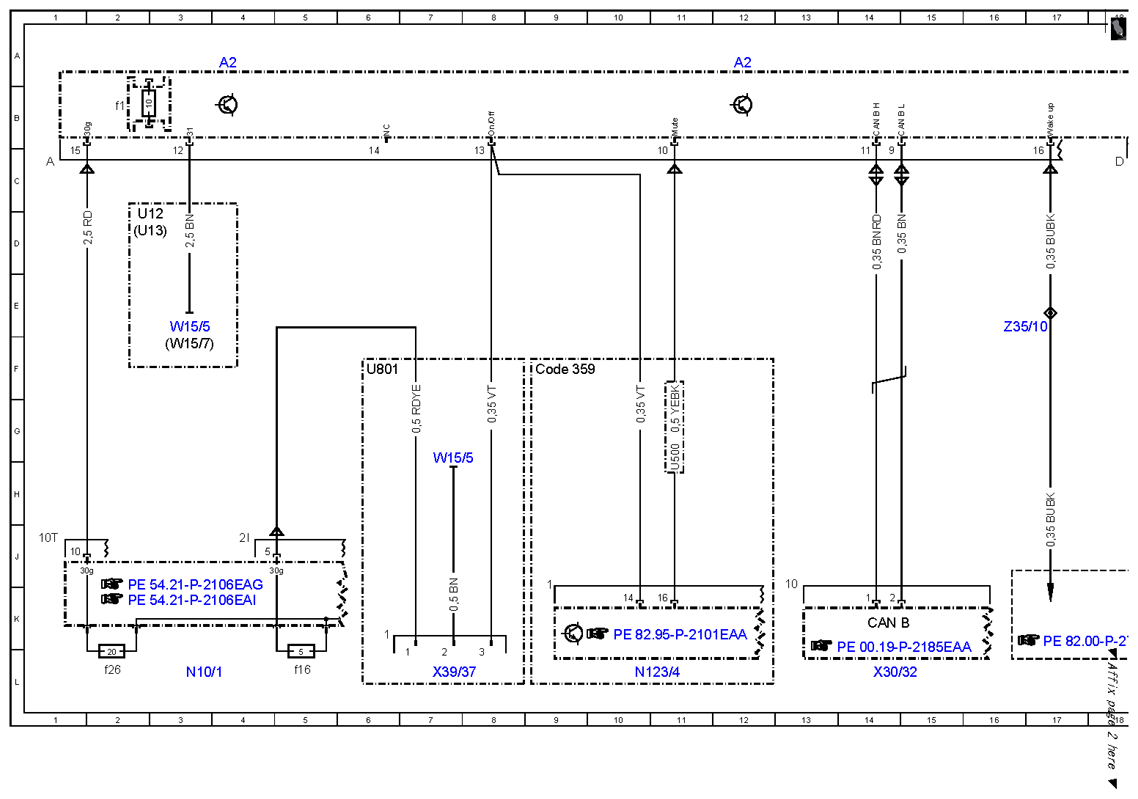

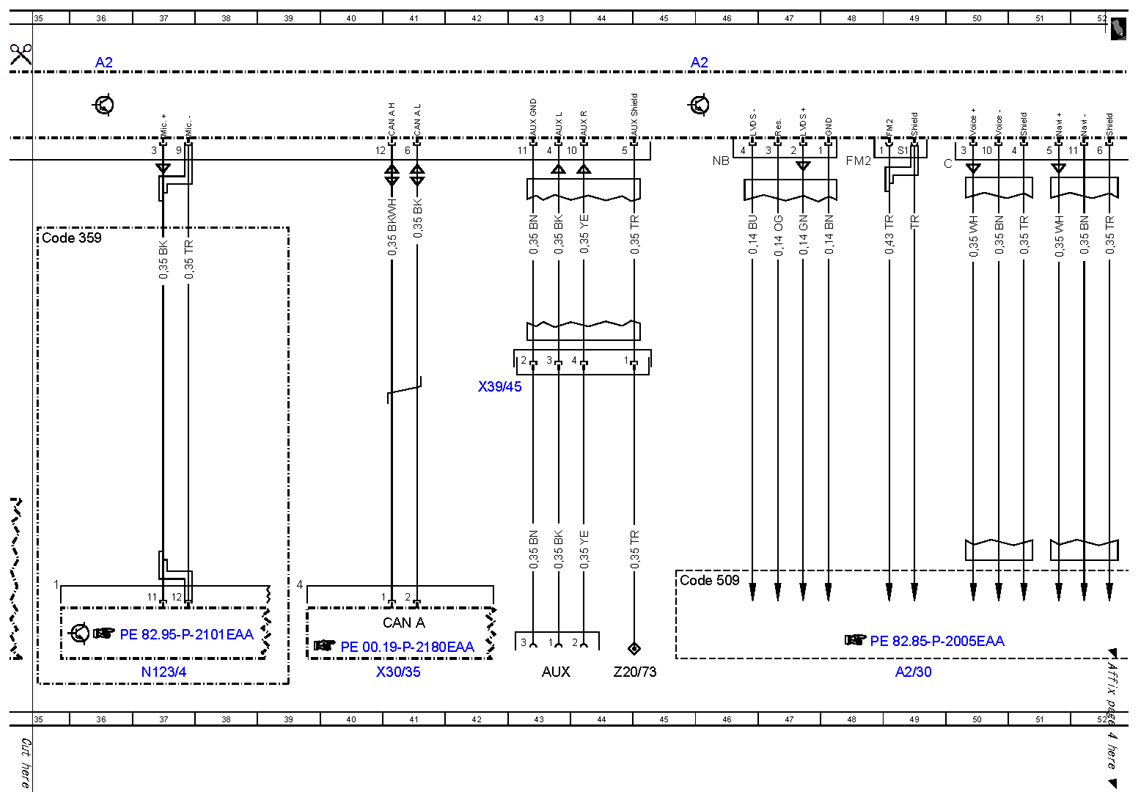

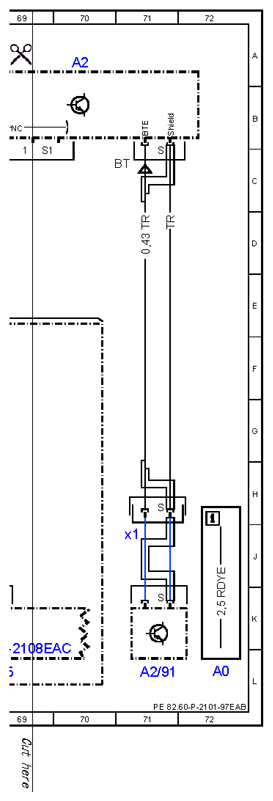

| A0 |
Color code key |
72L |
| A2 |
Radio |
4A |
| A2 |
Radio |
12A |
| A2 |
Radio |
19A |
| A2 |
Radio |
28A |
| A2 |
Radio |
36A |
| A2 |
Radio |
46A |
| A2 |
Radio |
54A |
| A2 |
Radio |
62A |
| A2 |
Radio |
70A |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
63L |
| A2/19 |
Rear window antenna FM antenna amplifier |
61L |
| A2/30 |
Navigation module |
49L |
| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
65L |
| A2/55 |
FM, AM and CL [ZV] antenna amplifier |
68L |
| A2/91 |
Bluetooth antenna |
71L |
| A2/91x1 |
Bluetooth antenna electrical connector |
71J |
| A2f1 |
Radio fuse |
2B |
| A40/8 |
Audio/COMAND display |
56L |
| A67 |
Inside rearview mirror |
33L |
| A67b1 |
Hands-free system microphone |
33K |
| A67x1 |
Inside rearview mirror unit electrical connector |
31H |
| CAN A |
Telematics CAN |
41K |
| CAN B |
Interior CAN |
14K |
| Code 359 |
TELEAID emergency call system |
9F |
| Code 359 |
TELEAID emergency call system |
35D |
| Code 509 |
Navigation module |
45J |
| H4/1 |
Left door speaker |
22L |
| H4/1h1 |
Left door tweeter |
22L |
| H4/1h2 |
Left door bass speaker |
21L |
| H4/2 |
Right door speaker |
24L |
| H4/2h1 |
Right door tweeter |
25L |
| H4/2h2 |
Right door bass speaker |
24L |
| H4/3 |
Left rear speaker |
29L |
| H4/3h1 |
Left rear tweeter |
29L |
| H4/3h2 |
Left rear bass speaker |
28L |
| H4/4 |
Right rear speaker |
27L |
| H4/4h1 |
Right rear tweeter |
27L |
| H4/4h2 |
Right rear bass speaker |
26L |
| MOST |
Media Oriented System Transport |
18K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
5L |
| N10/1f26 |
Fuse 26 |
2L |
| N123/4 |
Emergency call system control unit |
10L |
| N123/4 |
Emergency call system control unit |
37L |
| U12 |
Valid for left-hand drive vehicles |
2D |
| U12 |
Valid for left-hand drive vehicles |
30D |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
32D |
| U23 |
Valid for convertibles |
64F |
| U500 |
Not valid for sound system |
11H |
| U500 |
Not valid for sound system |
20A |
| U611 |
Valid for Coupe |
60F |
| U801 |
Valid for mobile phone preinstallation with universal interface |
6F |
| W15/5 |
Left front footwell ground point |
7H |
| W15/5 |
Left front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
3F |
| X115 |
USB electrical connector |
59L |
| X115x1 |
USB electrical connector connecting point |
58G |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
14L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
41L |
| X35/1 |
Left front door electrical connector |
20H |
| X35/2 |
Right front door electrical connector |
23H |
| X39/37 |
Mobile phone electrical connector |
7L |
| X39/45 |
AUX jack electrical connector |
42F |
| Z20/73 |
Tracer wire connector sleeve |
44L |
| Z35/10 |
MOST wake-up signal connector sleeve |
17E |
