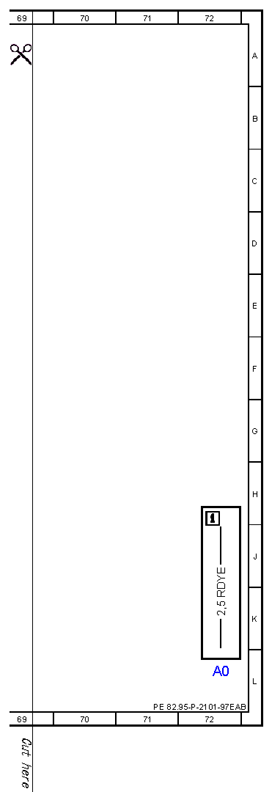

| A0 |
Color code key |
72L |
| A2 |
Radio |
16L |
| A2 |
Radio |
55L |

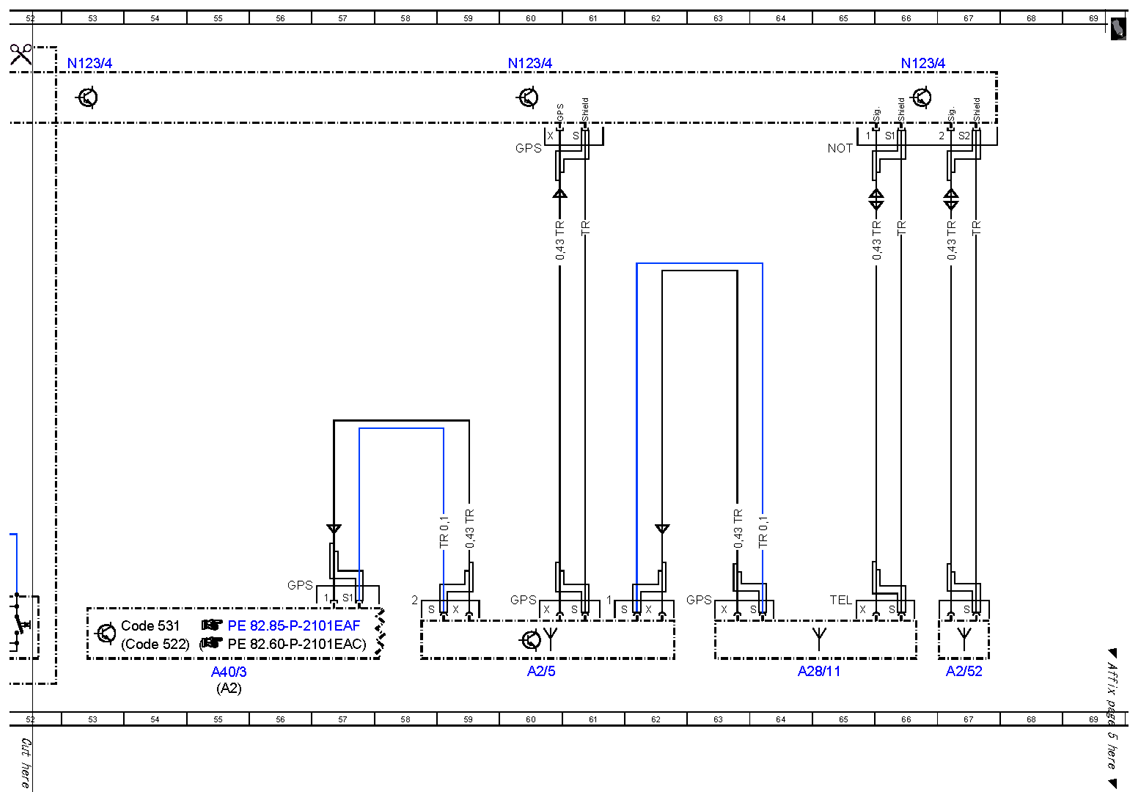

| A2/5 |
Global positioning system antenna splitter |
60L |
| A2/52 |
Emergency call system antenna |
67L |
| A28/11 |
Multifunction antenna |
64L |
| A40/3 |
COMAND control unit |
55L |
| A40/3 |
COMAND control unit |
16L |
| CAN D |
Diagnostic CAN |
10K |
| Code 522 |
Audio 20 radio |
13D |
| Code 522 |
Audio 20 radio |
53K |
| Code 531 |
COMAND APS |
13D |
| Code 531 |
COMAND APS |
53K |
| Code 810 |
Sound system |
18D |

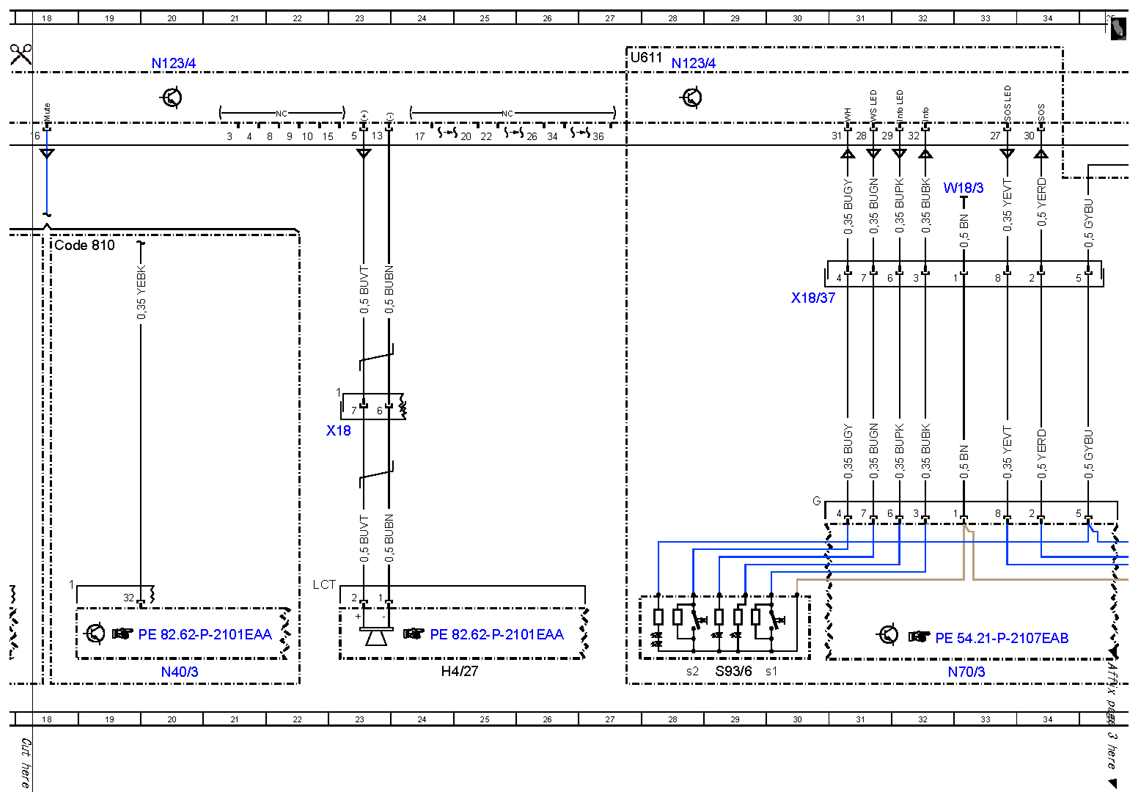

| H4/27 |
Center instrument panel speaker |
24L |
| N10/1 |
Front SAM control unit with fuse and relay module |
10L |
| N10/1 |
Front SAM control unit with fuse and relay module |
40L |

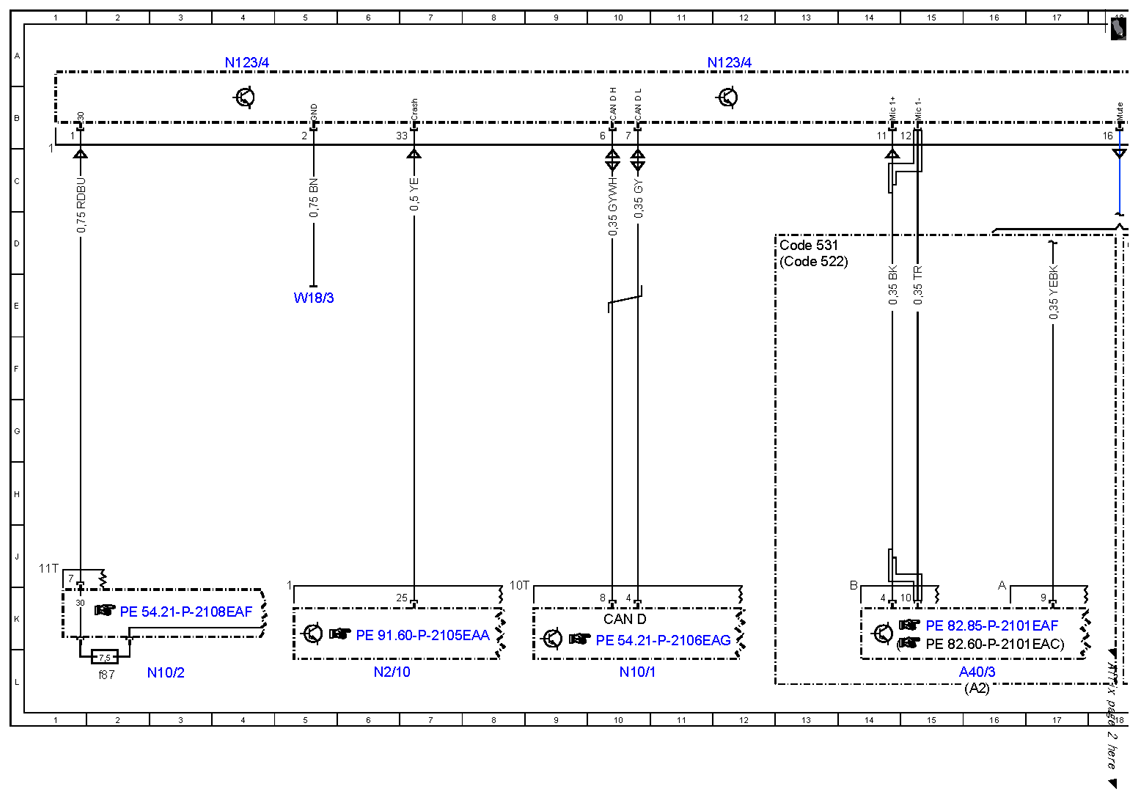

| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f87 |
Fuse 87 |
2L |
| N123/4 |
Emergency call system control unit |
4A |
| N123/4 |
Emergency call system control unit |
12A |
| N123/4 |
Emergency call system control unit |
20A |
| N123/4 |
Emergency call system control unit |
28A |
| N123/4 |
Emergency call system control unit |
36A |
| N123/4 |
Emergency call system control unit |
44A |
| N123/4 |
Emergency call system control unit |
60A |
| N123/4 |
Emergency call system control unit |
66A |
| N123/4 |
Emergency call system control unit |
53A |
| N2/10 |
Supplemental restraint system control unit |
6L |
| N40/3 |
Sound system amplifier control unit |
20L |
| N70/3 |
Overhead control panel electronics |
33L |
| N70/3 |
Overhead control panel electronics |
48L |

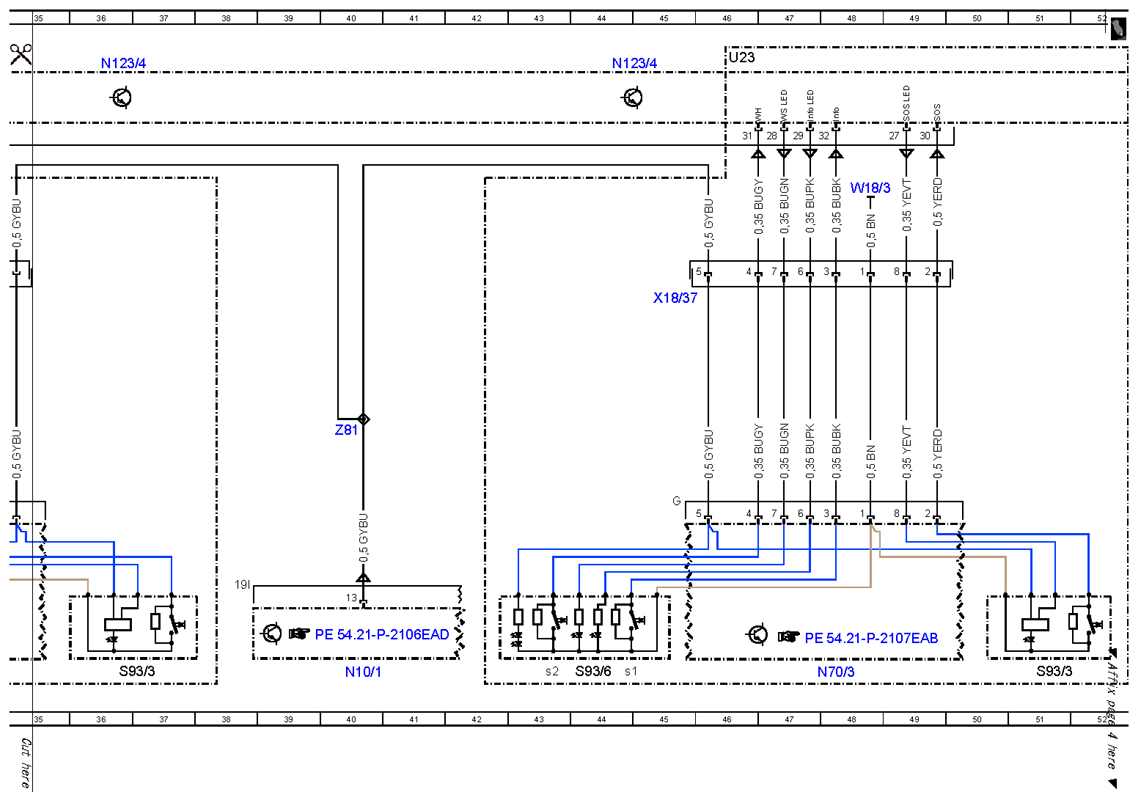

| S93/3 |
Emergency call system button |
36L |
| S93/3 |
Emergency call system button |
51L |
| S93/6 |
MB-Info and breakdown assistance button |
29L |
| S93/6 |
MB-Info and breakdown assistance button |
44L |
| S93/6s1 |
MB-Info button |
30L |
| S93/6s1 |
MB-Info button |
44L |
| S93/6s2 |
Breakdown assistance button |
28L |
| S93/6s2 |
Breakdown assistance button |
43L |
| U23 |
Valid for convertibles |
46A |
| U611 |
Valid for Coupe |
27A |
| W18/3 |
Left front seat crossmember ground point 2 |
33C |
| W18/3 |
Left front seat crossmember ground point 2 |
48C |
| W18/3 |
Left front seat crossmember ground point 2 |
5E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
23G |
| X18/37 |
Emergency call system button electrical connector |
30E |
| X18/37 |
Emergency call system button electrical connector |
45E |
| Z81 |
Circuit 58d connector sleeve |
40G |
