| A0 |
Color code key |
64L |
| A2 |
Radio |
45L |

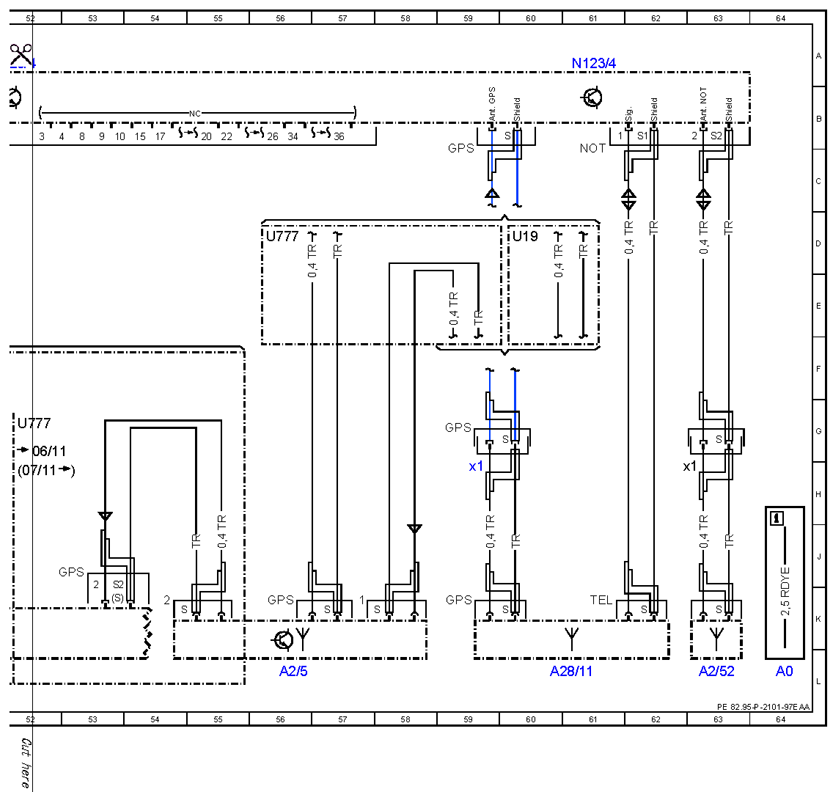

| A2/5 |
Global positioning system antenna splitter |
56L |
| A2/52 |
Emergency call system antenna |
63L |
| A2/52x1 |
Emergency call system antenna electrical connector |
63H |
| A28/11 |
Multifunction antenna |
60L |
| A28/11x1 |
Multifunction antenna electrical connector |
59H |
| A40/3 |
COMAND control unit |
50L |
| CAN D |
Diagnostic CAN |
13K |
| H4/27 |
Center instrument panel speaker |
8L |

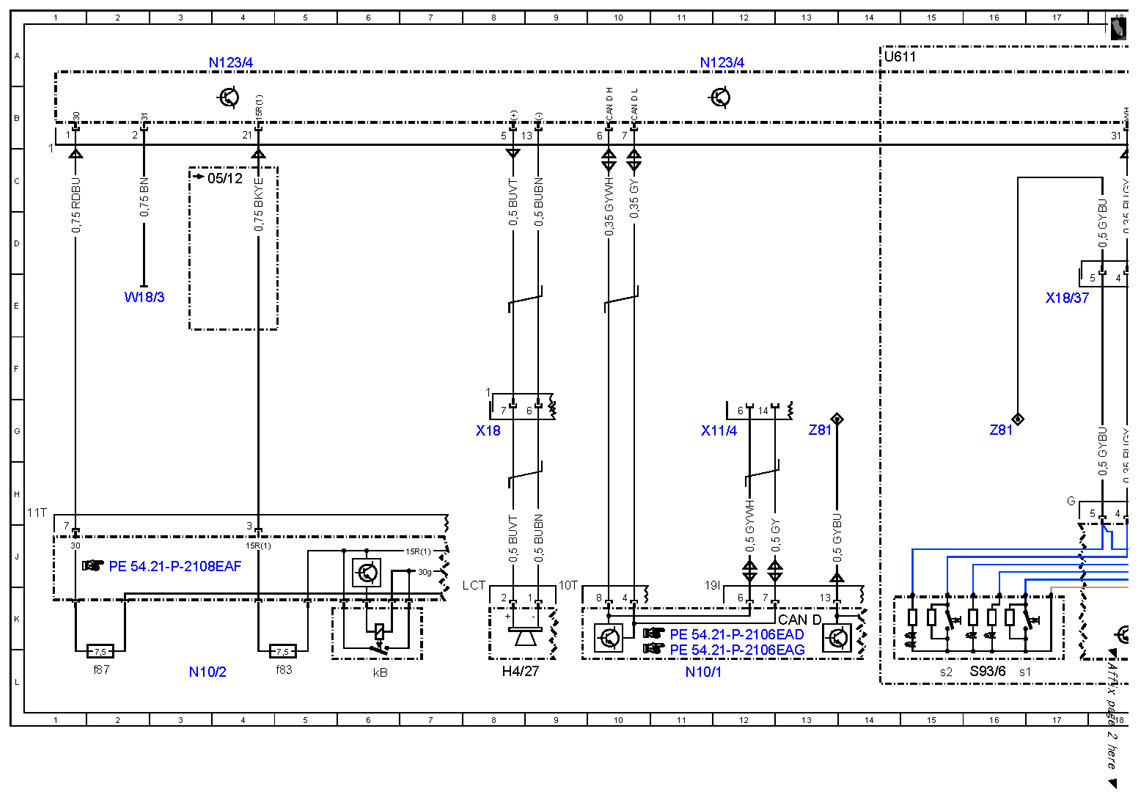

| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f83 |
Fuse 83 |
5L |
| N10/2f87 |
Fuse 87 |
2L |
| N10/2kB |
Circuit 15R relay (1) |
6L |

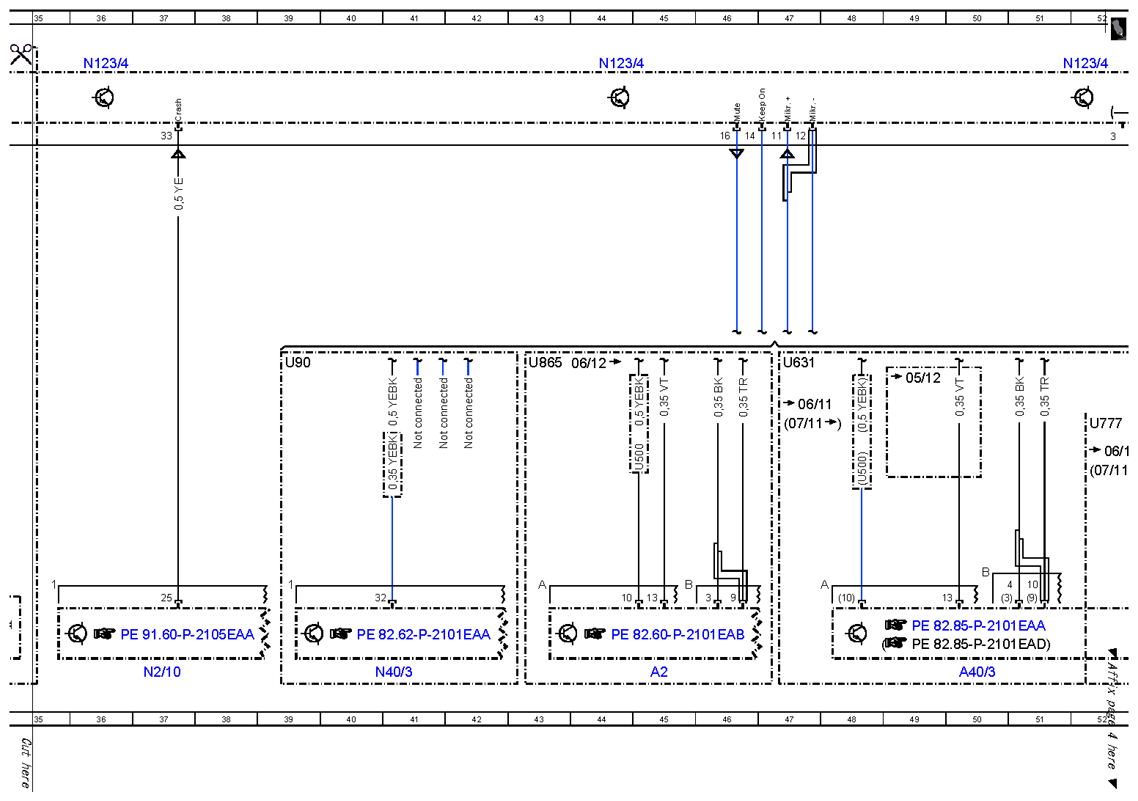

| N123/4 |
Emergency call system control unit |
4A |
| N123/4 |
Emergency call system control unit |
11A |
| N123/4 |
Emergency call system control unit |
20A |
| N123/4 |
Emergency call system control unit |
28A |
| N123/4 |
Emergency call system control unit |
36A |
| N123/4 |
Emergency call system control unit |
44A |
| N123/4 |
Emergency call system control unit |
52A |
| N123/4 |
Emergency call system control unit |
61A |
| N2/10 |
Supplemental restraint system control unit |
37L |
| N40/3 |
Sound system amplifier control unit |
41L |

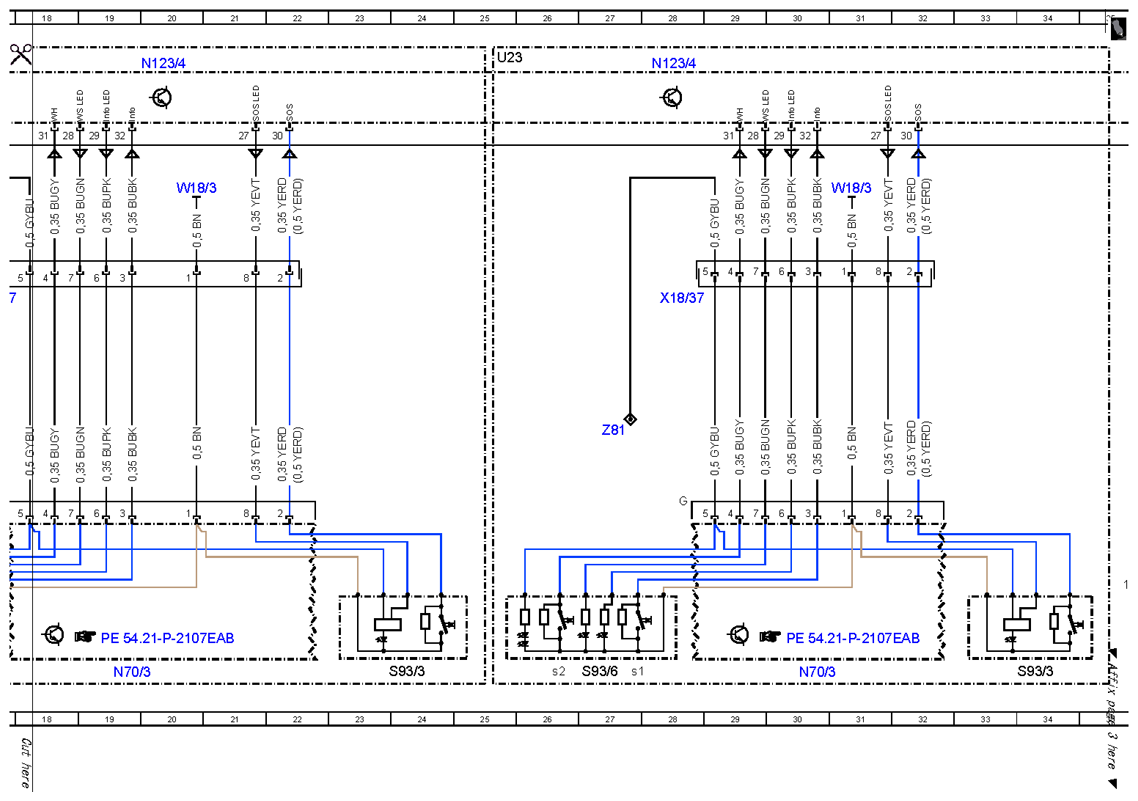

| N70/3 |
Overhead control panel electronics |
19L |
| N70/3 |
Overhead control panel electronics |
30L |
| S93/3 |
Emergency call system button |
24L |
| S93/3 |
Emergency call system button |
34L |
| S93/6 |
MB-Info and breakdown assistance button |
16L |
| S93/6 |
MB-Info and breakdown assistance button |
27L |
| S93/6s1 |
MB-Info button |
16L |
| S93/6s1 |
MB-Info button |
27L |
| S93/6s2 |
Breakdown assistance button |
15L |
| S93/6s2 |
Breakdown assistance button |
26L |
| U19 |
Valid for standard equipment |
60D |
| U23 |
Valid for convertibles |
25A |
| U500 |
Not valid for sound system |
45H |
| U500 |
Not valid for sound system |
48H |
| U611 |
Valid for Coupe |
14A |
| U631 |
Valid for COMAND |
47F |
| U777 |
Valid for navigation |
52G |
| U777 |
Valid for navigation |
56D |
| U865 |
Valid for Audio 20 |
43F |
| U90 |
Valid for sound system |
39F |
| W18/3 |
Left front seat crossmember ground point 2 |
2E |
| W18/3 |
Left front seat crossmember ground point 2 |
20C |
| W18/3 |
Left front seat crossmember ground point 2 |
31C |
| X11/4 |
Diagnostic connector |
12G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
8G |
| X18/37 |
Emergency call system button electrical connector |
17E |
| X18/37 |
Emergency call system button electrical connector |
28E |
| Z81 |
Circuit 58d connector sleeve |
13G |
| Z81 |
Circuit 58d connector sleeve |
16G |
| Z81 |
Circuit 58d connector sleeve |
27G |
