| A0 |
Color code key |
64L |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
50L |
| A2/19 |
Rear window antenna FM antenna amplifier |
48L |
| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
52L |
| A2/55 |
FM, AM and CL [ZV] antenna amplifier |
56L |
| A2/56 |
Radio with auto pilot system |
12A |
| A2/56 |
Radio with auto pilot system |
4A |
| A2/56 |
Radio with auto pilot system |
20A |
| A2/56 |
Radio with auto pilot system |
28A |
| A2/56 |
Radio with auto pilot system |
37A |
| A2/56 |
Radio with auto pilot system |
45A |
| A2/56 |
Radio with auto pilot system |
52A |
| A2/56 |
Radio with auto pilot system |
59A |
| A2/56f1 |
Electrical fuse, radio with auto pilot system |
2B |

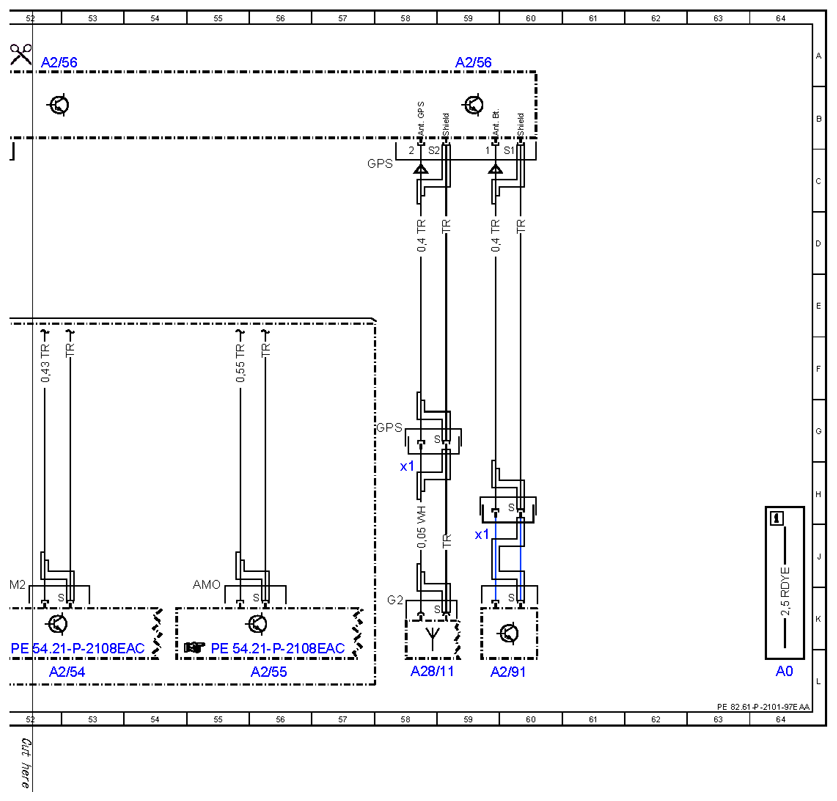

| A2/91 |
Bluetooth antenna |
59L |
| A2/91x1 |
Bluetooth antenna electrical connector |
59J |
| A28/11 |
Multifunction antenna |
58L |
| A28/11x1 |
Multifunction antenna electrical connector |
58H |

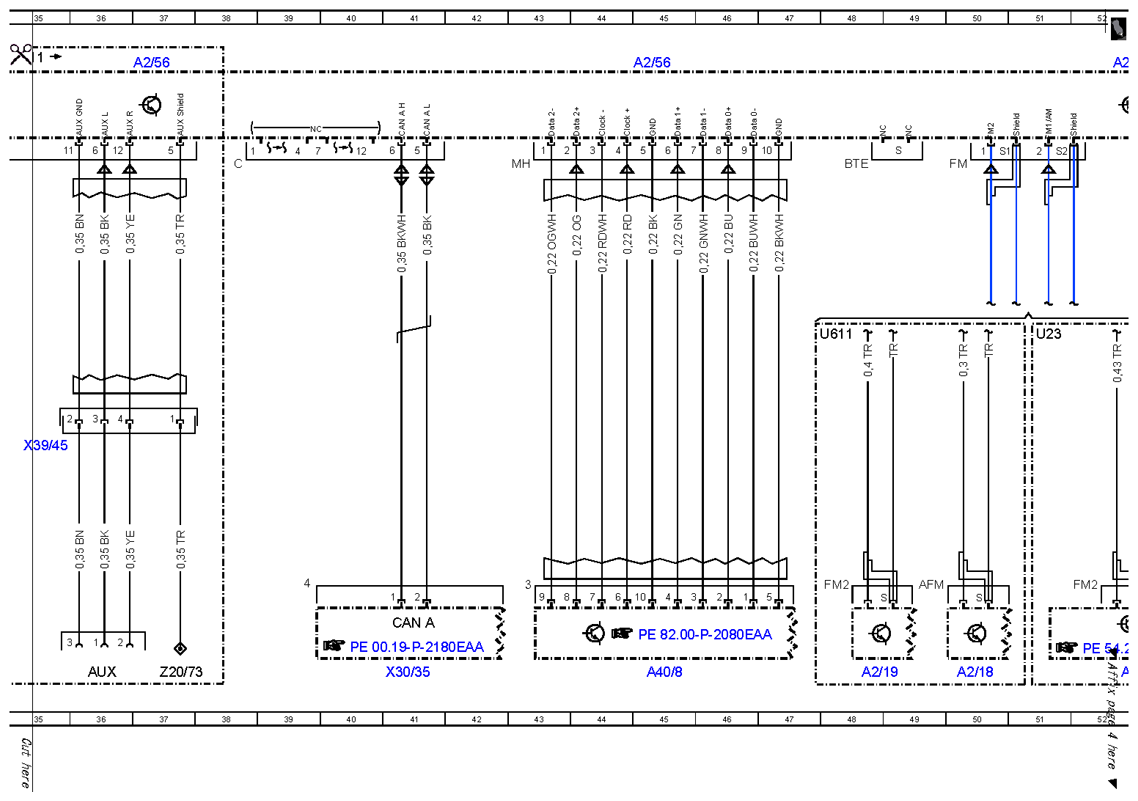

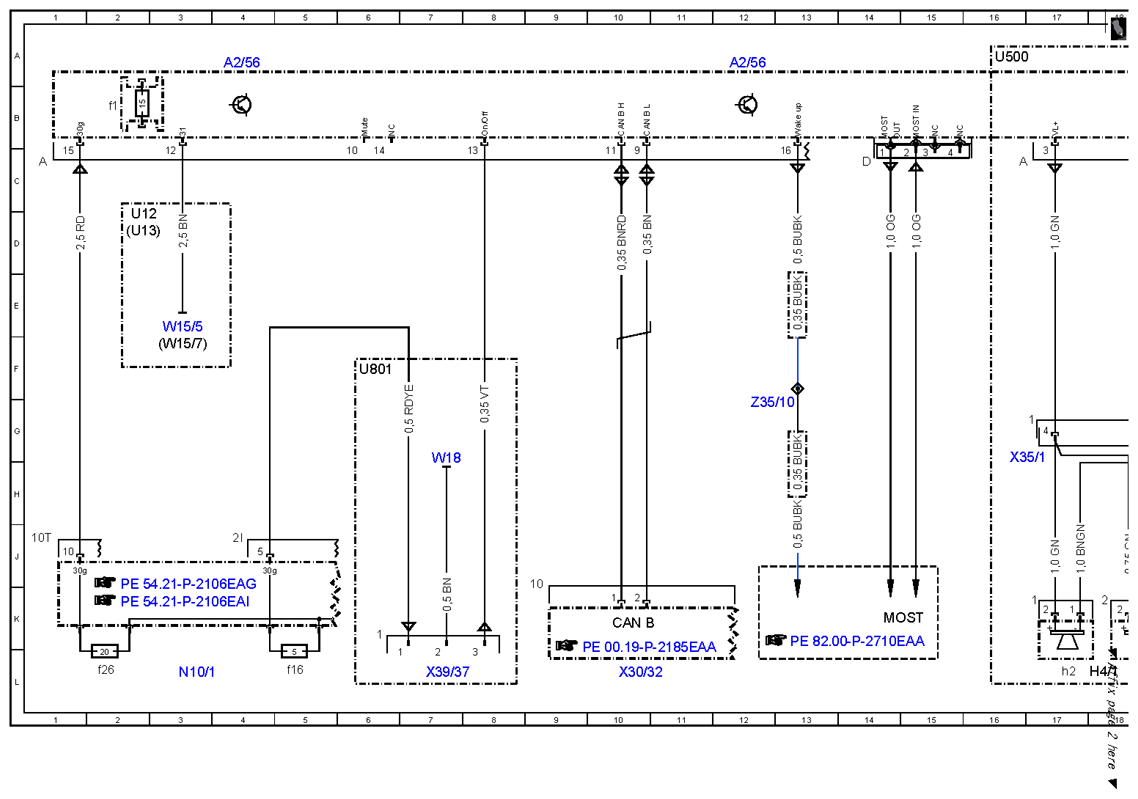

| A40/8 |
Audio/COMAND display |
45L |

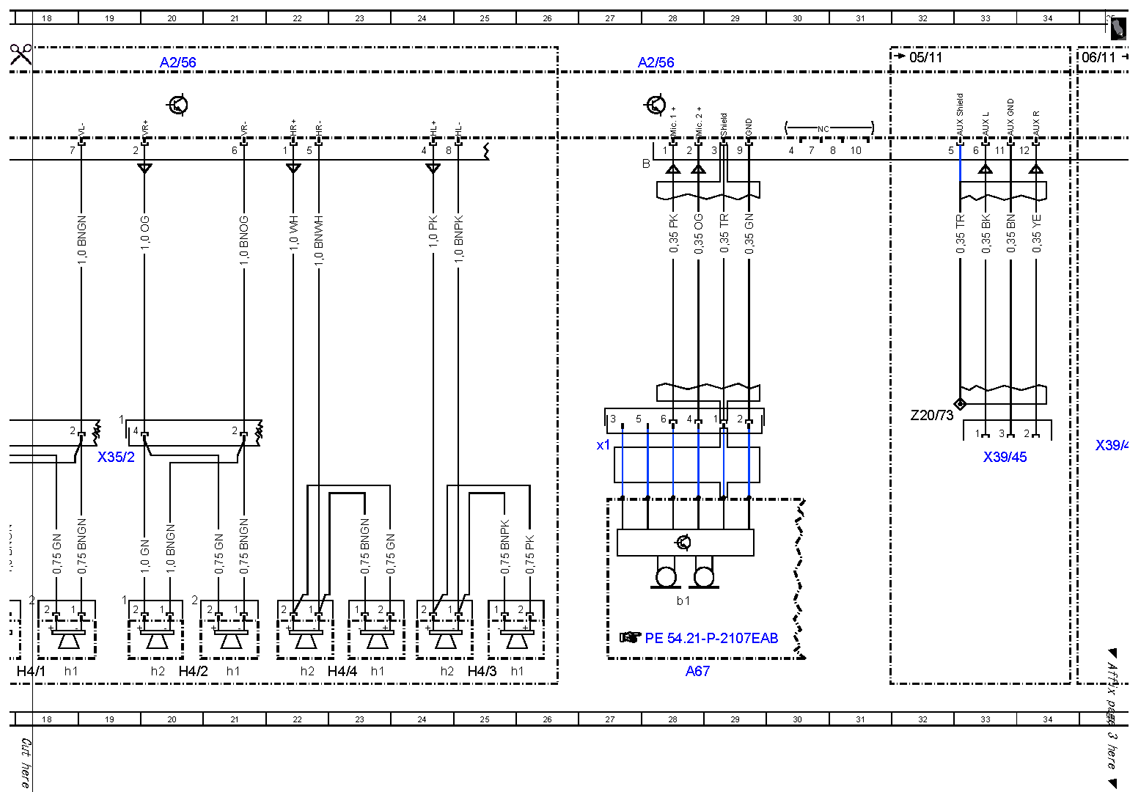

| A67 |
Inside rearview mirror |
28L |
| A67b1 |
Hands-free system microphone |
28K |
| A67x1 |
Inside rearview mirror unit electrical connector |
27G |
| CAN A |
Telematics CAN |
41K |
| CAN B |
Interior CAN |
10K |
| H4/1 |
Left door speaker |
18L |
| H4/1h1 |
Left door tweeter |
18L |
| H4/1h2 |
Left door bass speaker |
17L |
| H4/2 |
Right door speaker |
20L |
| H4/2h1 |
Right door tweeter |
21L |
| H4/2h2 |
Right door bass speaker |
20L |
| H4/3 |
Left rear speaker |
25L |
| H4/3h1 |
Left rear tweeter |
25L |
| H4/3h2 |
Left rear bass speaker |
24L |
| H4/4 |
Right rear speaker |
23L |
| H4/4h1 |
Right rear tweeter |
23L |
| H4/4h2 |
Right rear bass speaker |
22L |
| MOST |
Media Oriented System Transport |
14K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
5L |
| N10/1f26 |
Fuse 26 |
2L |
| U12 |
Valid for left-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U23 |
Valid for convertibles |
51F |
| U500 |
Not valid for sound system |
16A |
| U611 |
Valid for Coupe |
47F |
| U801 |
Valid for mobile phone preinstallation with universal interface |
6F |
| W15/5 |
Left front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
3F |
| W18 |
Left front seat crossmember ground point |
7H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
10L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
41L |
| X35/1 |
Left front door electrical connector |
17H |
| X35/2 |
Right front door electrical connector |
19H |
| X39/37 |
Mobile phone electrical connector |
7L |
| X39/45 |
AUX jack electrical connector |
33H |
| X39/45 |
AUX jack electrical connector |
35G |
| Z20/73 |
Tracer wire connector sleeve |
32G |
| Z20/73 |
Tracer wire connector sleeve |
37L |
| Z35/10 |
MOST wake-up signal connector sleeve |
12G |
