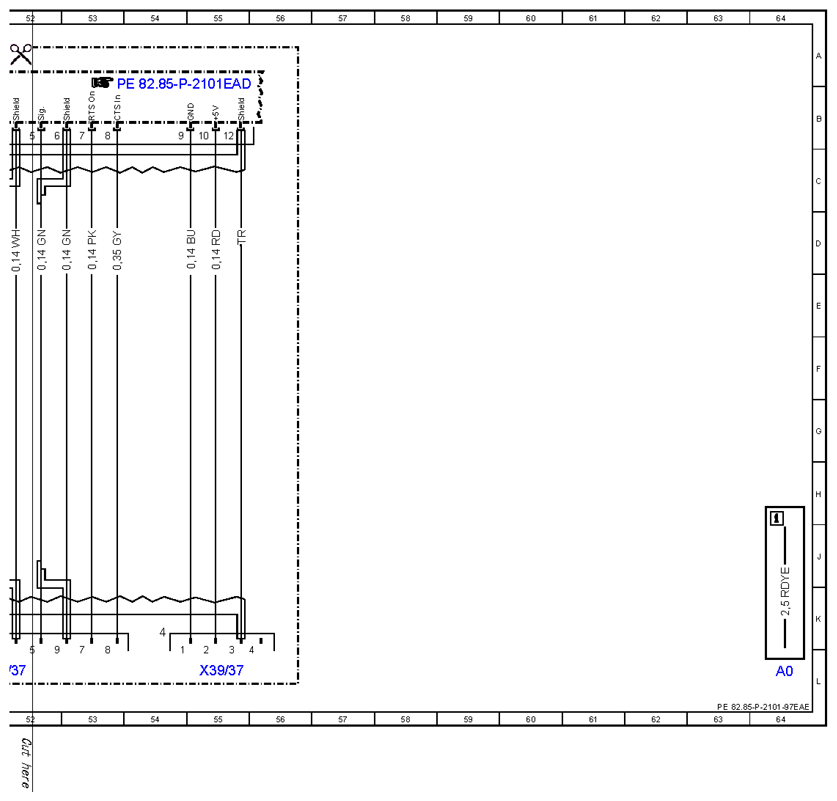

| A0 |
Color code key |
64L |
| A2/37 |
VICS control unit |
47L |
| A2/94 |
ETC/DSRC antenna |
43L |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
29A |
| A40/3 |
COMAND control unit |
45A |
| A40/3 |
COMAND control unit |
50A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
37A |

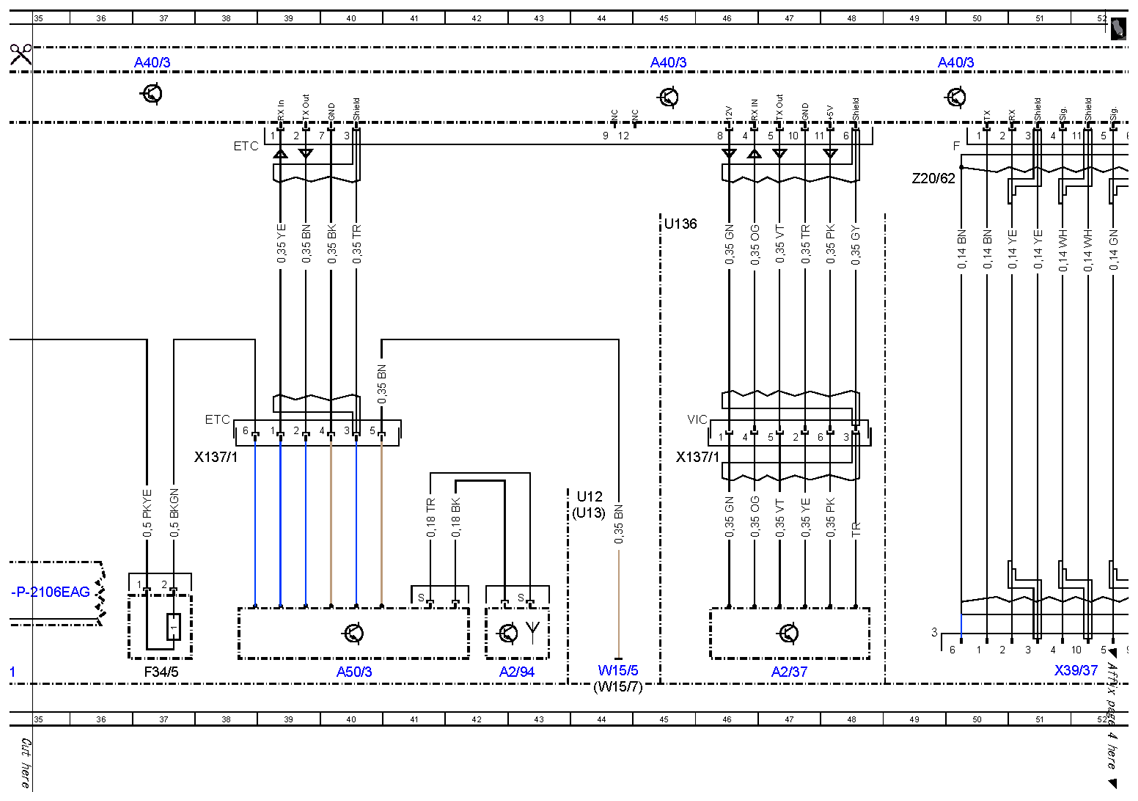

| A50/3 |
Electronic Toll Collection control unit |
40L |

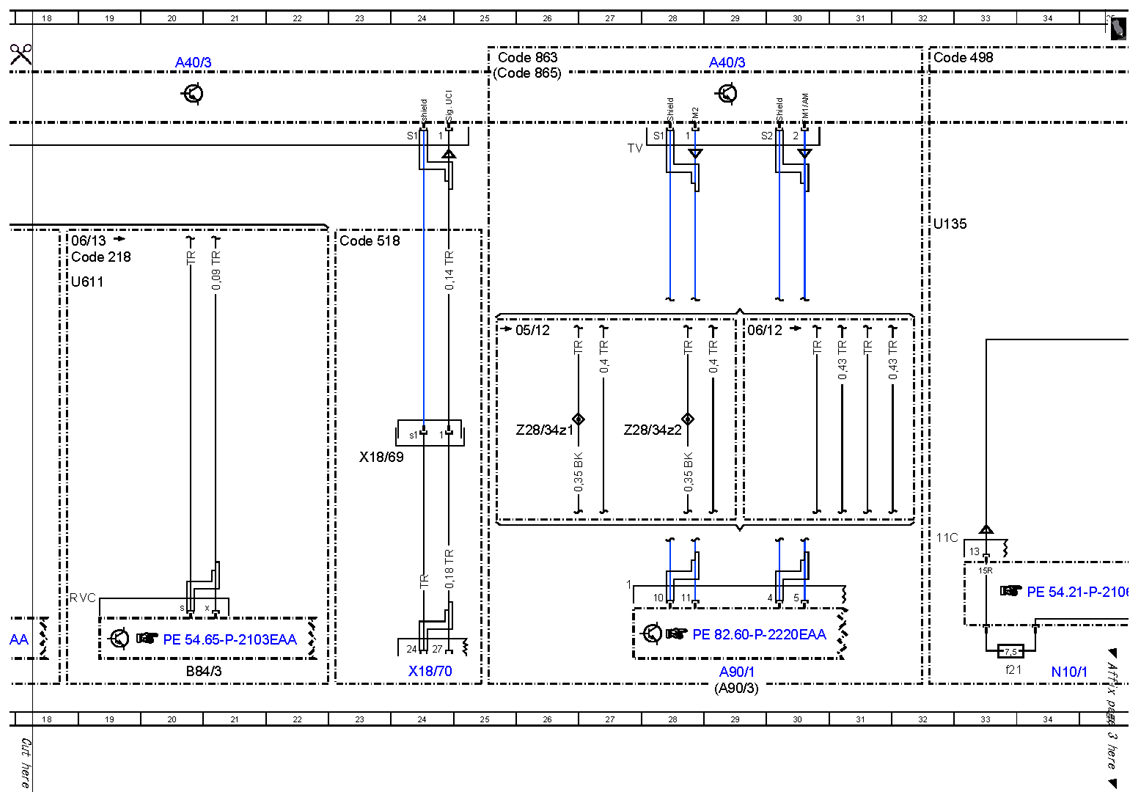

| A90/1 |
TV tuner (analog/digital) |
29L |
| A90/3 |
TV digital tuner |
29L |
| B84/3 |
Backup camera |
16L |
| B84/3 |
Backup camera |
20L |
| Code 218 |
Backup camera |
6D |
| Code 218 |
Backup camera |
14D |
| Code 218 |
Backup camera |
10D |
| Code 218 |
Backup camera |
18D |
| Code 498 |
Japan version |
32A |
| Code 498 |
Japan version |
6E |
| Code 501 |
360 degree camera |
1D |
| Code 518 |
Media Interface |
23D |
| Code 863 |
Digital/analog TV tuner |
25A |
| Code 865 |
TV tuner (digital) |
25A |
| F34/5 |
Electronic Toll Collection preinstallation electrical fuse |
37L |
| N10/1 |
Front SAM control unit with fuse and relay module |
34L |
| N10/1f21 |
Fuse 21 |
33L |

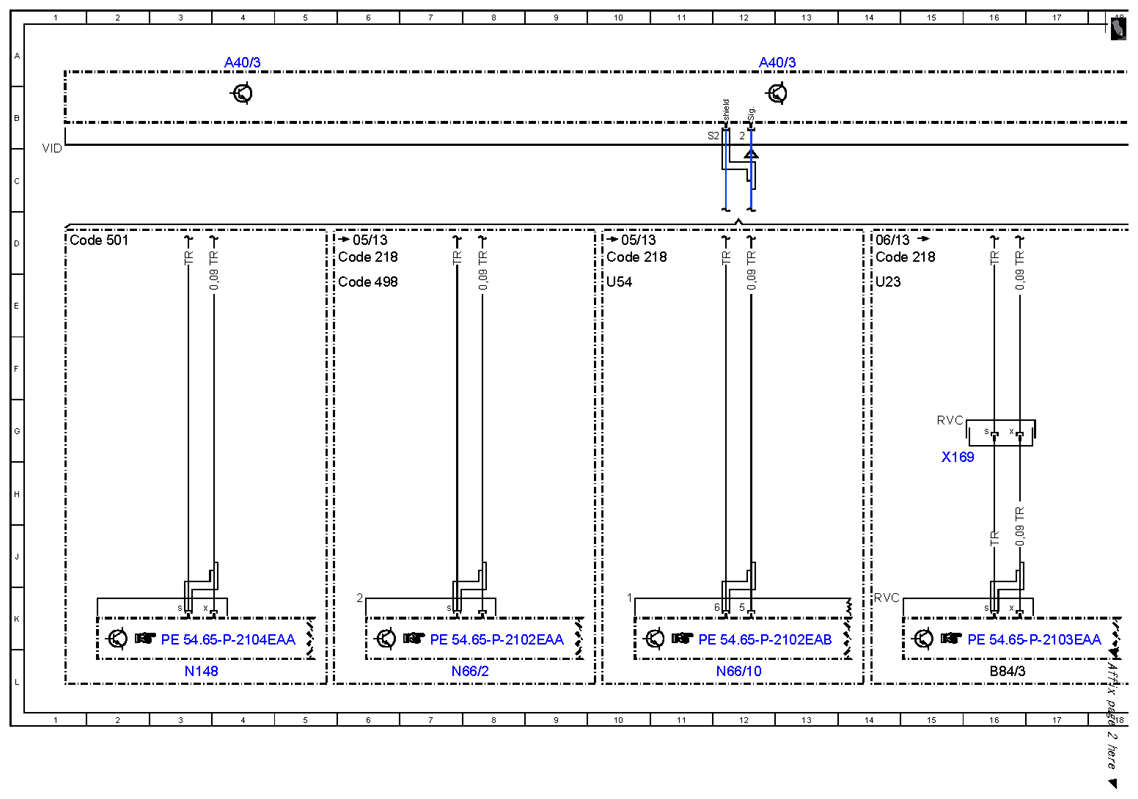

| N148 |
360° camera control unit |
3L |
| N66/10 |
Backup camera voltage supply module |
12L |
| N66/2 |
Backup camera control unit |
7L |
| U12 |
Valid for left-hand drive vehicles |
44H |
| U13 |
Valid for right-hand drive vehicles |
44H |
| U135 |
Valid for Electronic Toll Collection |
32D |
| U136 |
Valid for Vehicle Information and Communication System (VICS) |
45D |
| U23 |
Valid for convertibles |
14E |
| U54 |
Valid for all except Japan |
10E |
| U611 |
Valid for Coupe |
18E |
| W15/5 |
Left front footwell ground point |
44L |
| W15/7 |
Right front footwell ground point |
44L |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
38H |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
46H |
| X169 |
Backup camera electrical connector |
15H |
| X18/69 |
Video media interface electrical connector |
23H |
| X18/70 |
Media interface electrical connector |
24L |
| X39/37 |
Mobile phone electrical connector |
52L |
| X39/37 |
Mobile phone electrical connector |
55L |
| Z20/62 |
Screening end connector sleeve |
49C |
| Z28/34z1 |
TV tuner shielding connector sleeve |
26G |
| Z28/34z2 |
TV tuner shielding connector sleeve |
28G |
