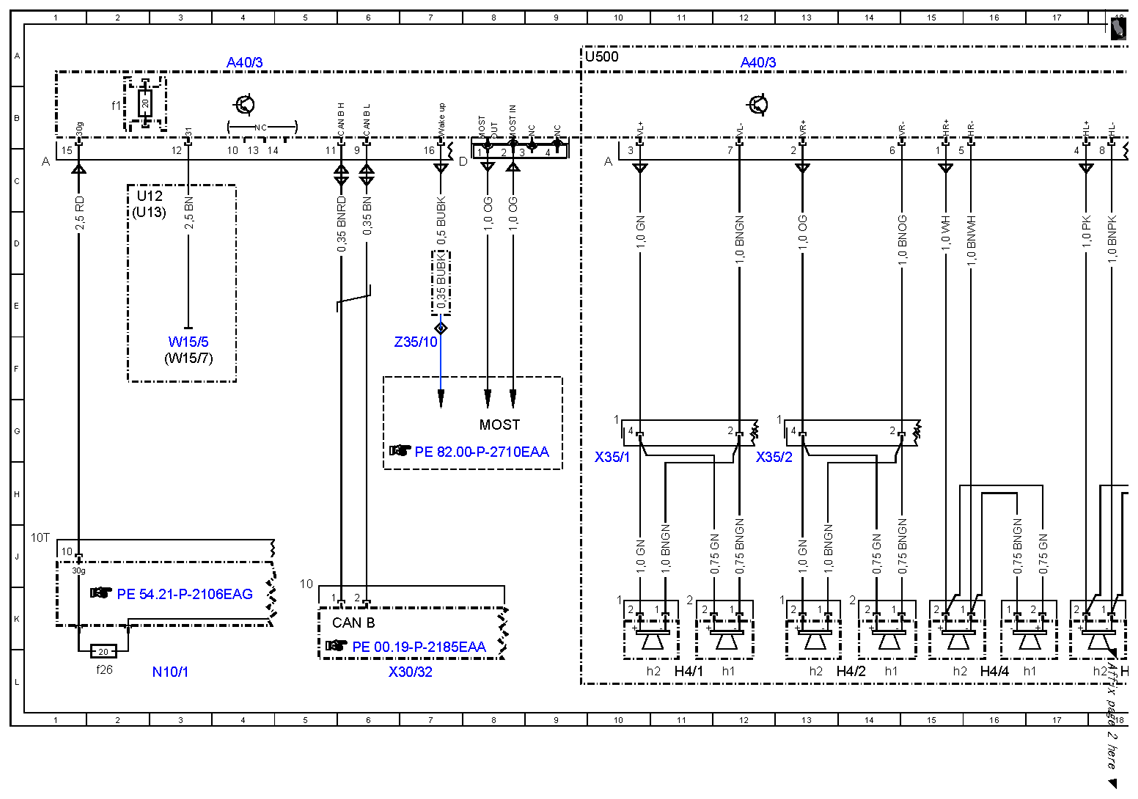

| A0 |
Color code key |
64L |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
51L |
| A2/19 |
Rear window antenna FM antenna amplifier |
49L |

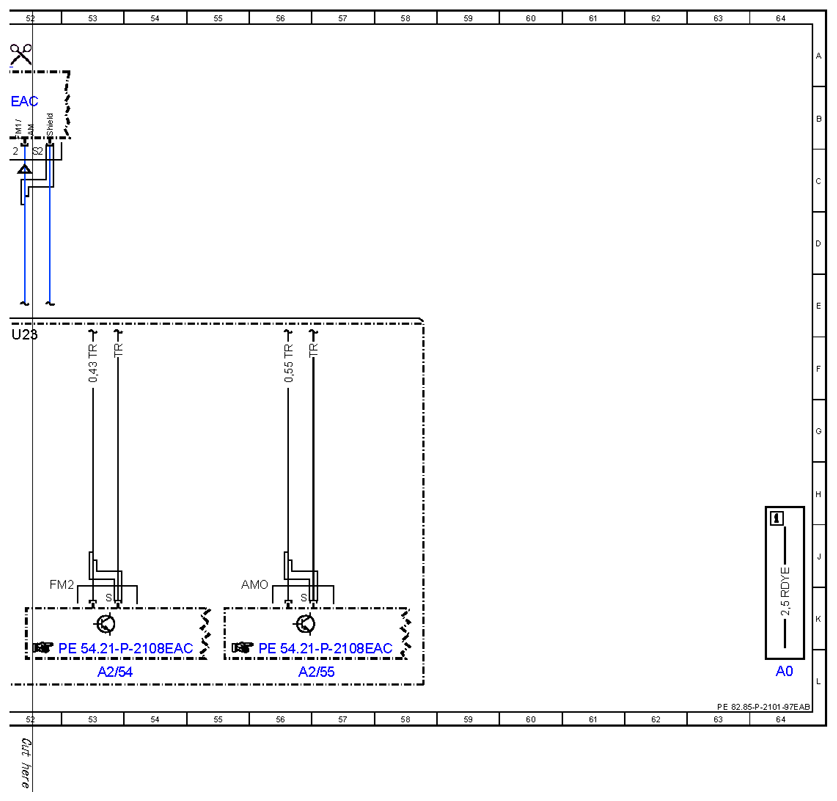

| A2/54 |
TV 3, FM2 and DAB band III antenna amplifier |
53L |
| A2/55 |
FM, AM and CL [ZV] antenna amplifier |
56L |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
29A |
| A40/3 |
COMAND control unit |
36A |
| A40/3 |
COMAND control unit |
44A |
| A40/3 |
COMAND control unit |
51A |
| A40/3f1 |
COMAND electrical fuse |
2B |
| A40/8 |
Audio/COMAND display |
39L |

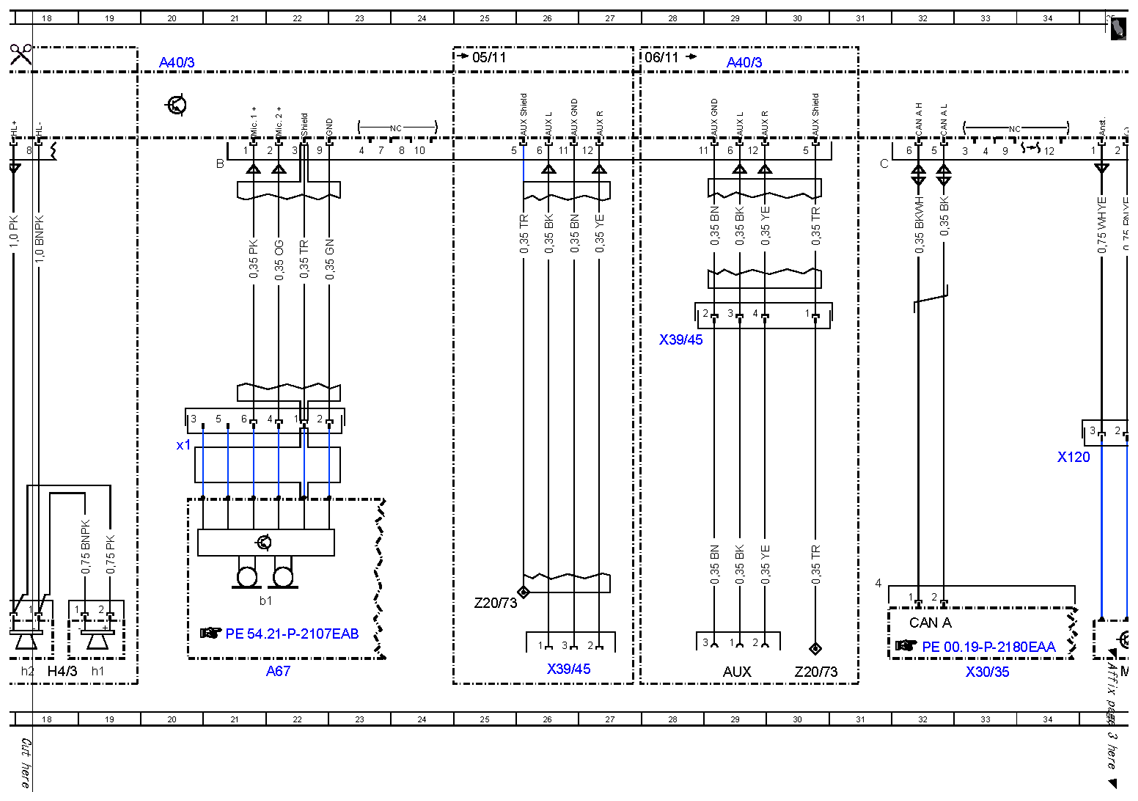

| A67 |
Inside rearview mirror |
22L |
| A67b1 |
Hands-free system microphone |
21K |
| A67x1 |
Inside rearview mirror unit electrical connector |
20G |
| A90/3 |
TV digital tuner |
43L |
| CAN A |
Telematics CAN |
32K |
| CAN B |
Interior CAN |
6K |
| Code 218 |
Backup camera |
45J |
| H4/1 |
Left door speaker |
11L |
| H4/1h1 |
Left door tweeter |
12L |
| H4/1h2 |
Left door bass speaker |
11L |
| H4/2 |
Right door speaker |
14L |
| H4/2h1 |
Right door tweeter |
14L |
| H4/2h2 |
Right door bass speaker |
13L |
| H4/3 |
Left rear speaker |
18L |
| H4/3h1 |
Left rear tweeter |
19L |
| H4/3h2 |
Left rear bass speaker |
18L |
| H4/4 |
Right rear speaker |
16L |
| H4/4h1 |
Right rear tweeter |
17L |
| H4/4h2 |
Right rear bass speaker |
15L |

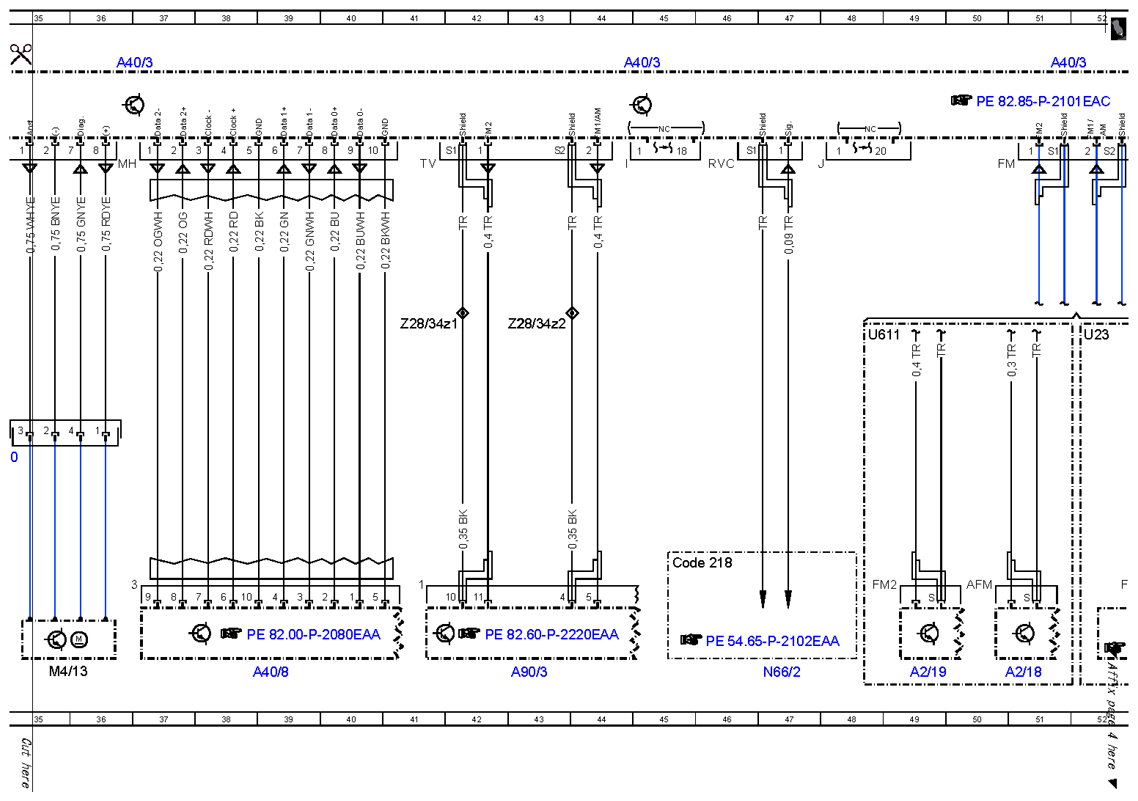

| M4/13 |
COMAND fan motor |
35L |
| MOST |
Media Oriented System Transport |
8G |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f26 |
Fuse 26 |
2L |
| N66/2 |
Backup camera control unit |
47L |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U23 |
Valid for convertibles |
52F |
| U500 |
Not valid for sound system |
9A |
| U611 |
Valid for Coupe |
48F |
| W15/5 |
Left front footwell ground point |
3F |
| W15/7 |
Right front footwell ground point |
3F |
| X120 |
Radio fan electrical connector |
34H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
7L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
33L |
| X35/1 |
Left front door electrical connector |
10H |
| X35/2 |
Right front door electrical connector |
12H |
| X39/45 |
AUX jack electrical connector |
26L |
| X39/45 |
AUX jack electrical connector |
28F |
| Z20/73 |
Tracer wire connector sleeve |
30L |
| Z20/73 |
Tracer wire connector sleeve |
25K |
| Z28/34z1 |
TV tuner shielding connector sleeve |
41E |
| Z28/34z2 |
TV tuner shielding connector sleeve |
43E |
| Z35/10 |
MOST wake-up signal connector sleeve |
7F |
