| A0 |
Color code key |
15L |

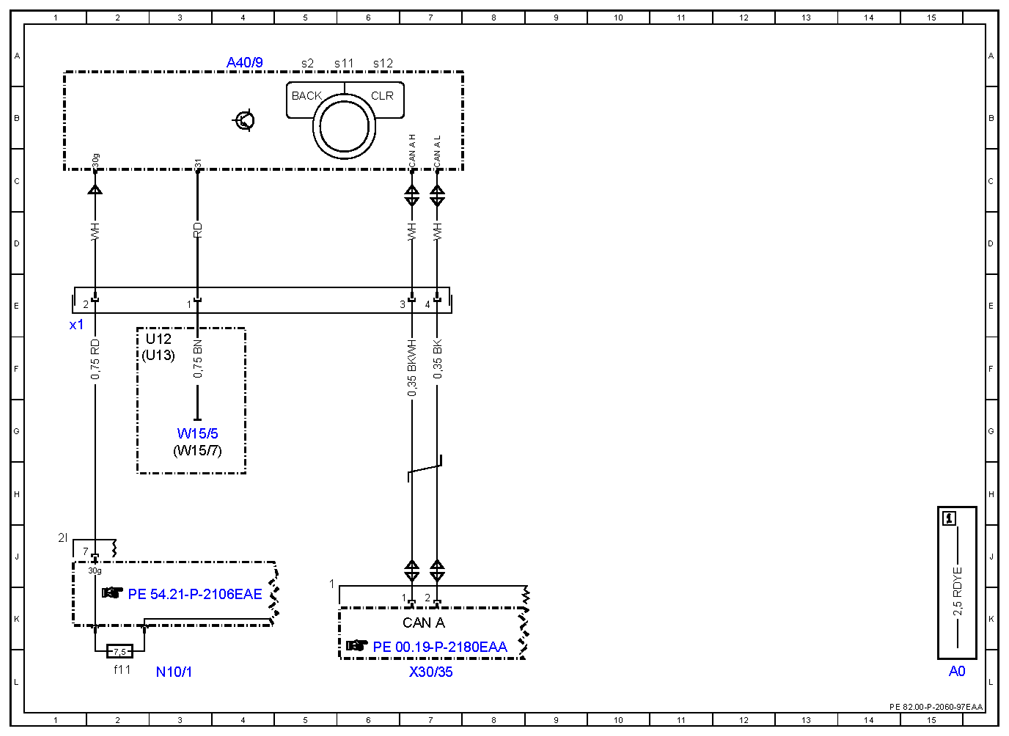

| A40/9 |
Audio/COMAND control panel |
4A |
| A40/9s11 |
Audio/COMAND controller |
6A |
| A40/9s12 |
"Delete" button |
6A |
| A40/9s2 |
"Back" button |
5A |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
1E |
| CAN A |
Telematics CAN |
7K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f11 |
Fuse 11 |
2L |
| U12 |
Valid for left-hand drive vehicles |
2F |
| U13 |
Valid for right-hand drive vehicles |
2F |
| W15/5 |
Left front footwell ground point |
3G |
| W15/7 |
Right front footwell ground point |
3G |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
7L |
