| A0 |
Color code key |
64L |
| B22/7 |
Left rear level sensor |
30L |
| Code 460 |
Canada version |
4F |
| Code 460 |
Canada version |
35F |
| Code 494 |
USA version |
4F |
| Code 494 |
USA version |
35F |

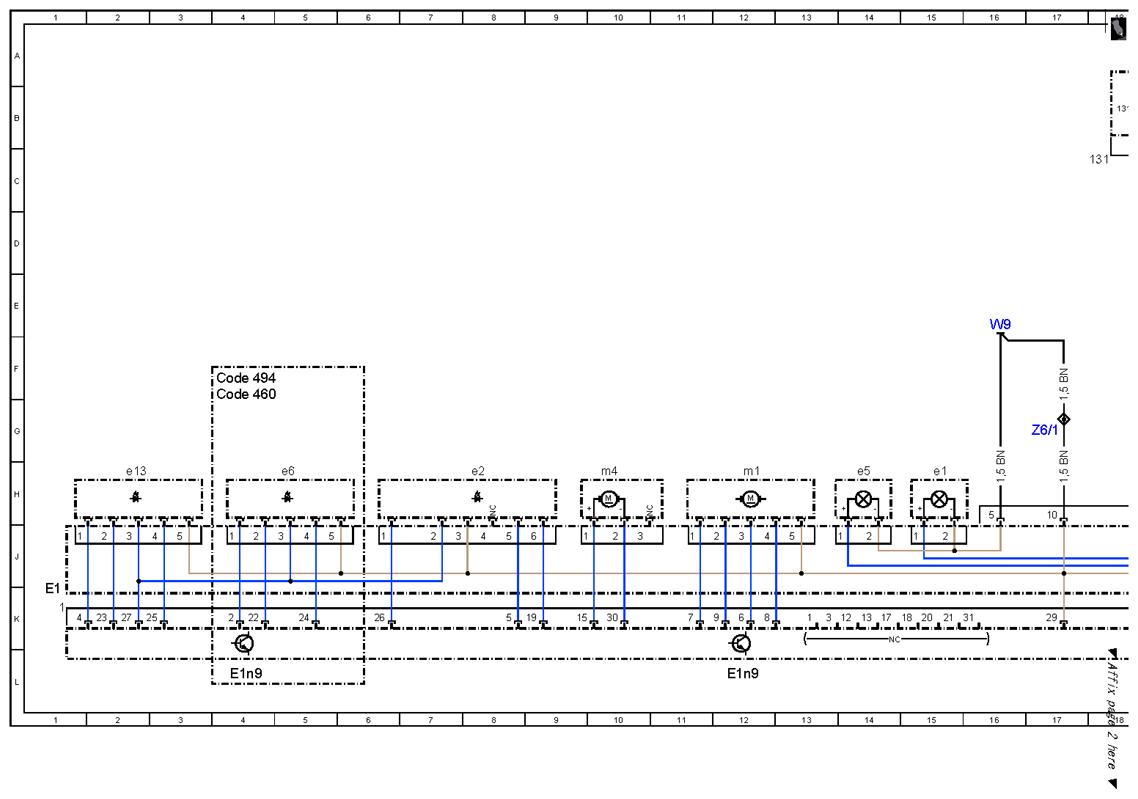

| E1 |
Left front lamp unit |
1K |
| E1 |
Left front lamp unit |
1K |
| E1e1 |
Left high beam |
15H |
| E1e13 |
Left parking light and daytime running light |
2H |
| E1e2 |
Left low beam |
8H |
| E1e5 |
Left front turn signal lamp |
14H |
| E1e6 |
Left front side-marker lamp |
5H |
| E1m1 |
Left headlamp range adjustment actuator motor |
12H |
| E1m4 |
Left LED signaling lights actuation module fan motor |
10H |
| E1n9 |
Left headlamp control unit |
4L |
| E1n9 |
Left headlamp control unit |
12L |
| E1n9 |
Left headlamp control unit |
20L |
| E1n9 |
Left headlamp control unit |
28L |
| E2 |
Right front lamp unit |
32K |
| E2 |
Right front lamp unit |
32K |

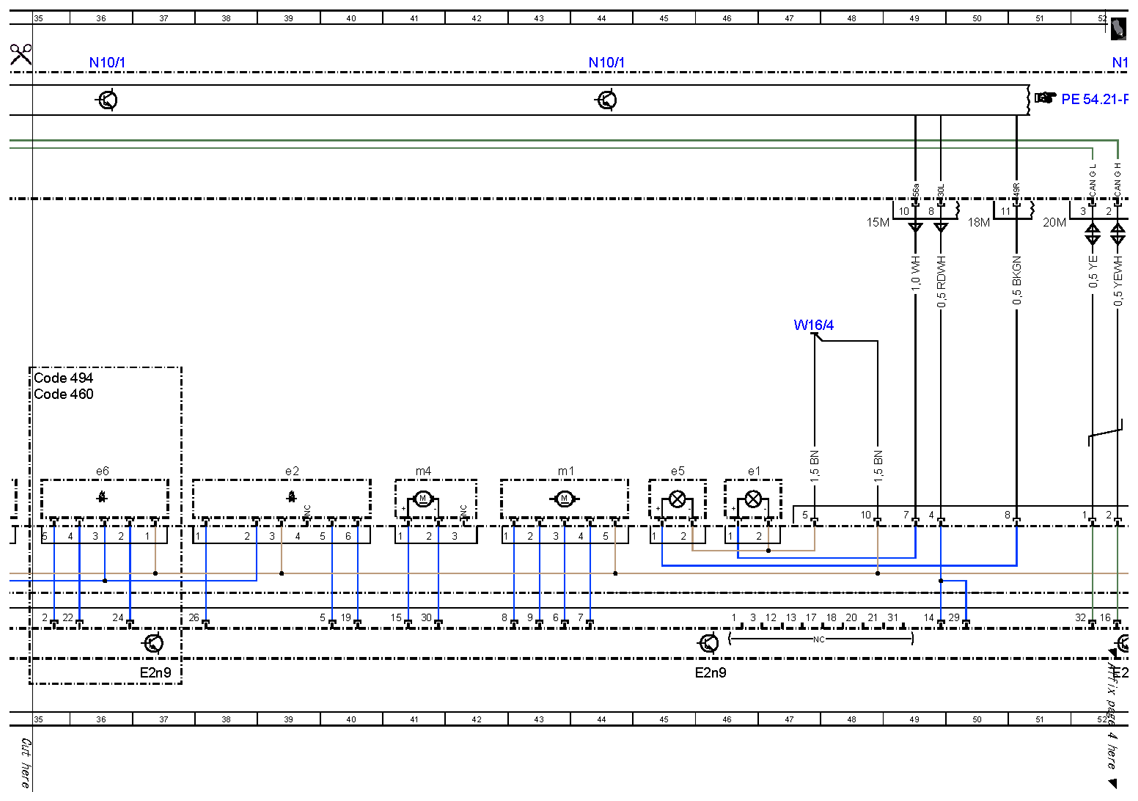

| E2e1 |
Right high beam |
46H |
| E2e13 |
Right parking light and daytime running light |
34H |
| E2e2 |
Right low beam |
39H |
| E2e5 |
Right front turn signal lamp |
45H |
| E2e6 |
Right front side-marker lamp |
36H |
| E2m1 |
Right headlamp range adjustment actuator motor |
43H |
| E2m4 |
Right LED signaling lights actuation module fan motor |
41H |
| E2n9 |
Right headlamp control unit |
33L |
| E2n9 |
Right headlamp control unit |
37L |
| E2n9 |
Right headlamp control unit |
46L |
| E2n9 |
Right headlamp control unit |
52L |
| E2n9 |
Right headlamp control unit |
56L |

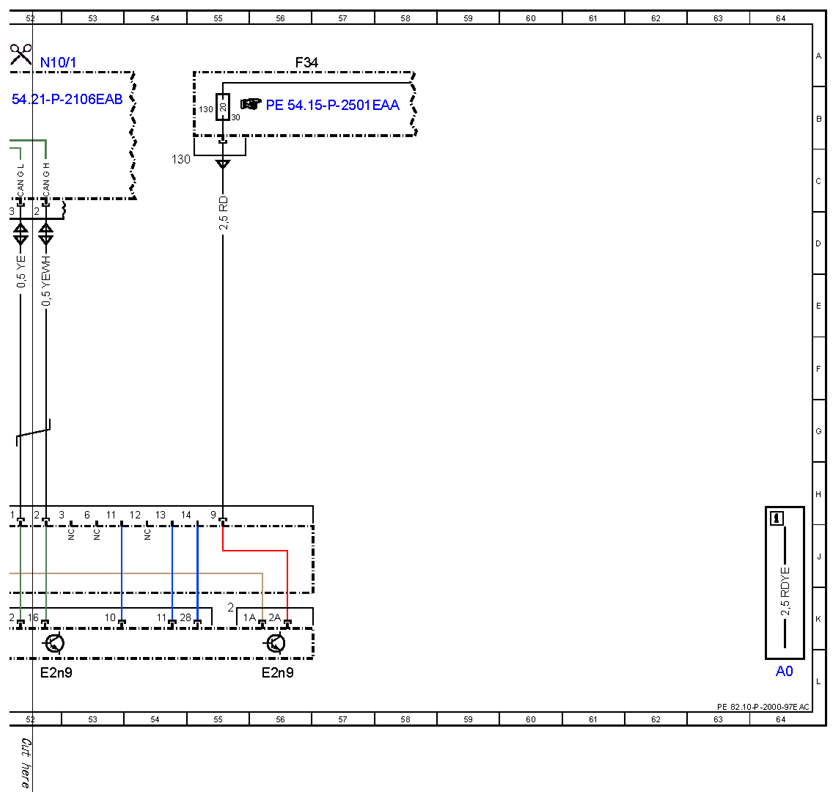

| F34 |
Interior fuse box |
20A |
| F34 |
Interior fuse box |
56A |
| F34f130 |
Fuse 130 |
55B |
| F34f131 |
Fuse 131 |
18B |

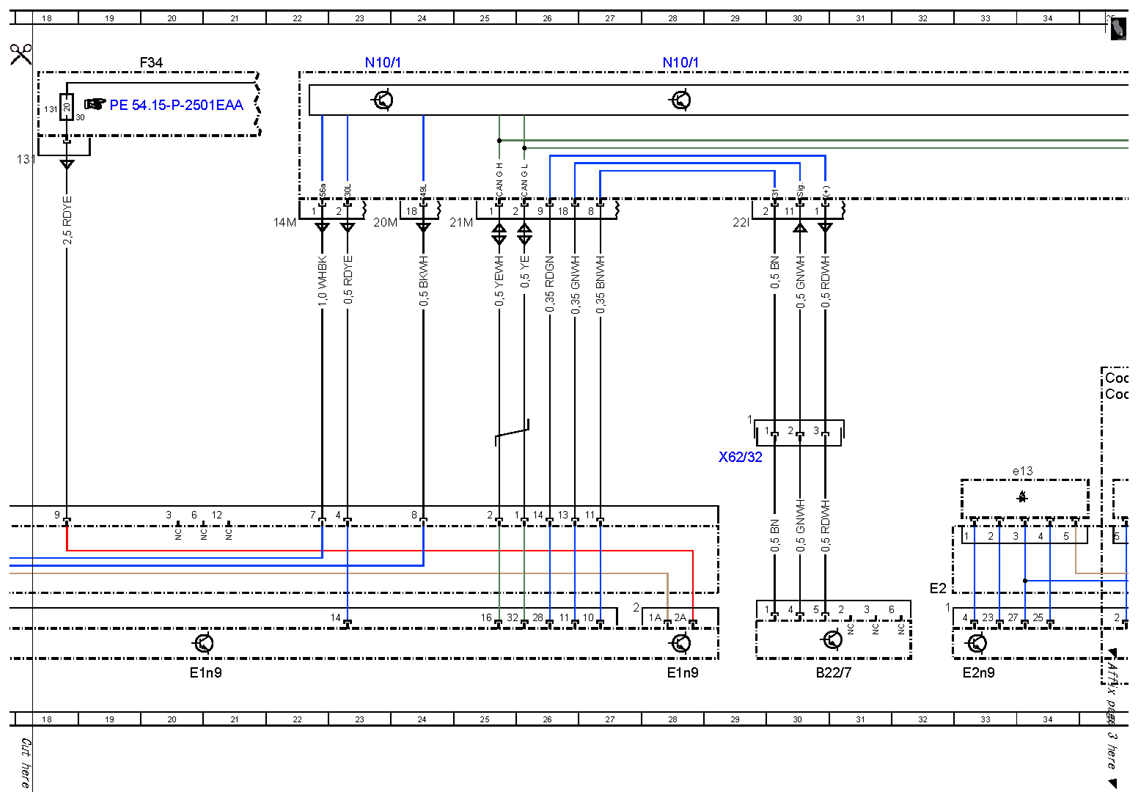

| N10/1 |
Front SAM control unit with fuse and relay module |
23A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| W16/4 |
Right wheelhouse ground point |
47E |
| W9 |
Left front ground point (at lamp unit) |
16E |
| X62/32 |
Rear axle electrical connector, left distributor |
29H |
| Z6/1 |
Circuit 31 connector sleeve |
17G |
