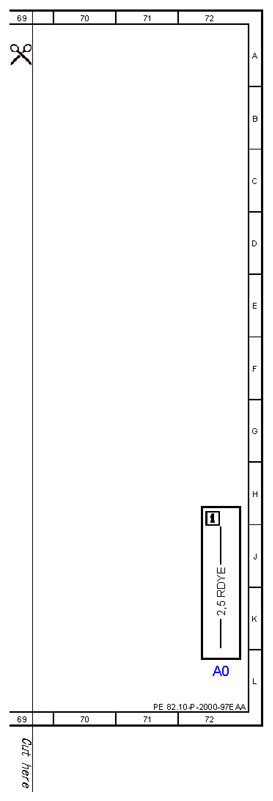

| A0 |
Color code key |
72L |

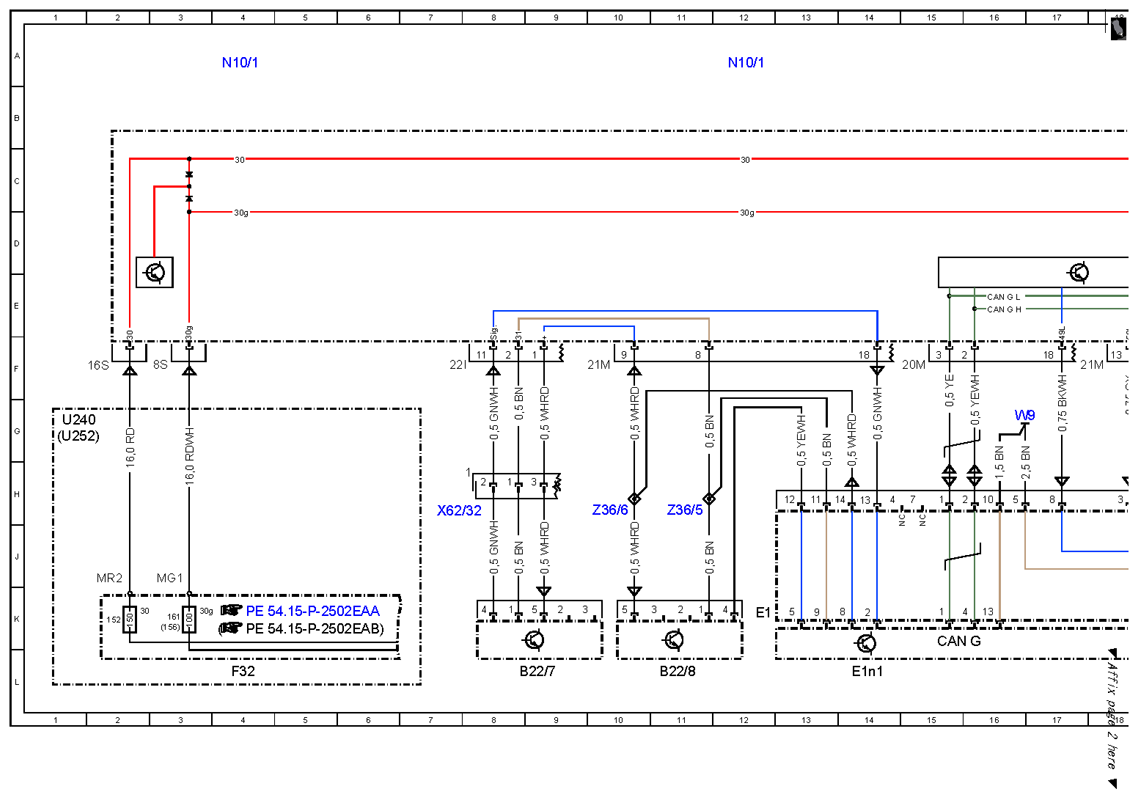

| B22/7 |
Left rear level sensor |
9L |
| B22/8 |
Left front level sensor |
11L |
| CAN G |
Front end CAN |
15K |
| CAN G |
Front end CAN |
33K |
| E1 |
Left front lamp unit |
12K |
| E1e10 |
Left xenon bulb with integrated ignition module |
29H |
| E1e3 |
Left front standing and parking lamp |
21H |
| E1e5 |
Left front turn signal lamp |
22H |
| E1e9 |
Left cornering illumination |
23H |
| E1l1 |
Left high beam solenoid |
28H |
| E1m1 |
Left headlamp range adjustment actuator motor |
25H |
| E1m2 |
Left active curve illumination actuator motor |
26H |
| E1m3 |
Left light distribution actuator motor |
24H |
| E1n1 |
Left xenon lamp control unit |
14L |
| E1n1 |
Left xenon lamp control unit |
22L |
| E1n1 |
Left xenon lamp control unit |
29L |
| E2 |
Right front lamp unit |
30K |
| E2e10 |
Right xenon bulb with integrated ignition module |
46H |
| E2e3 |
Right front standing and parking lamp |
38H |
| E2e5 |
Right front turn signal lamp |
39H |
| E2e9 |
Right cornering illumination |
40H |
| E2l1 |
Right high beam solenoid |
45H |
| E2m1 |
Right headlamp range adjustment actuator motor |
43H |
| E2m2 |
Right active curve illumination actuator motor |
44H |
| E2m3 |
Right light distribution actuator motor |
41H |
| E2n1 |
Right xenon light control unit |
37L |
| E2n1 |
Right xenon light control unit |
31L |
| E2n1 |
Right xenon light control unit |
46L |
| F32 |
Front electrical prefuse box |
4L |
| F32f152 |
Prefuse 152 |
2K |
| F32f156 |
Prefuse 156 |
3K |
| F32f161 |
Prefuse 161 |
3K |
| LIN 1 |
Instrument panel LIN |
49J |
| LIN 1 |
Instrument panel LIN |
48F |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
21A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1f18 |
Fuse 18 |
51A |

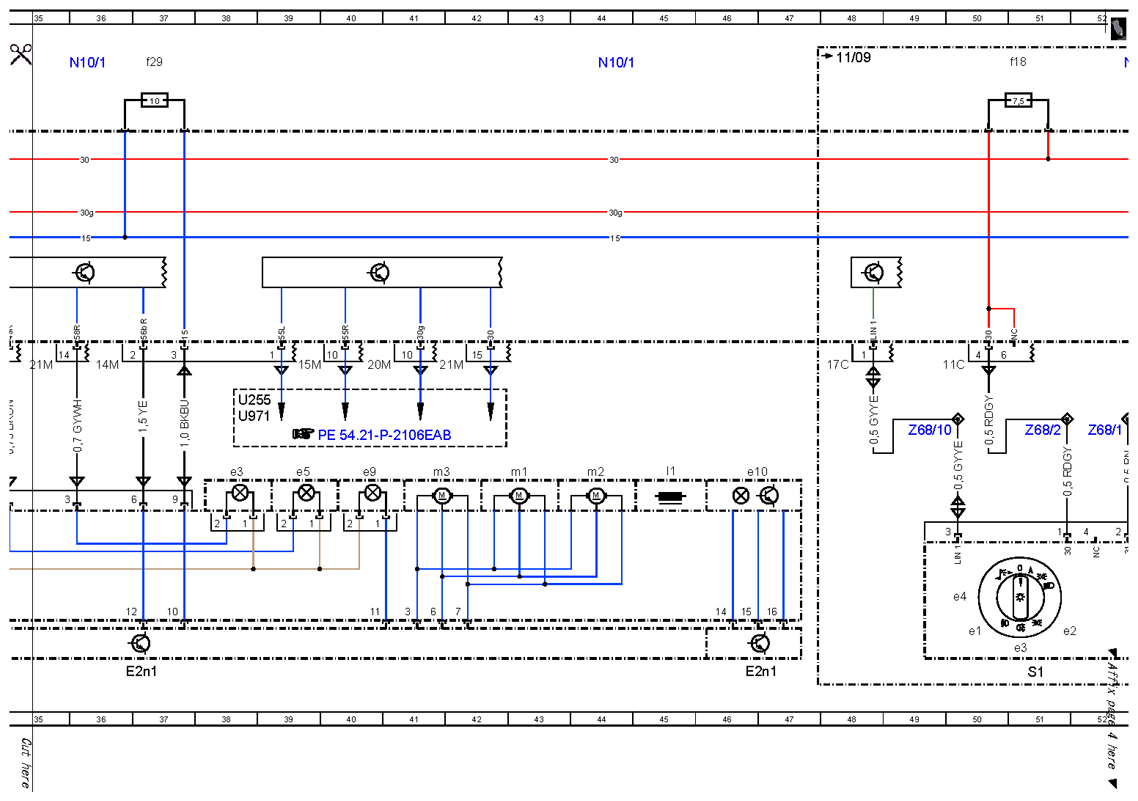

| N10/1f29 |
Fuse 29 |
37A |

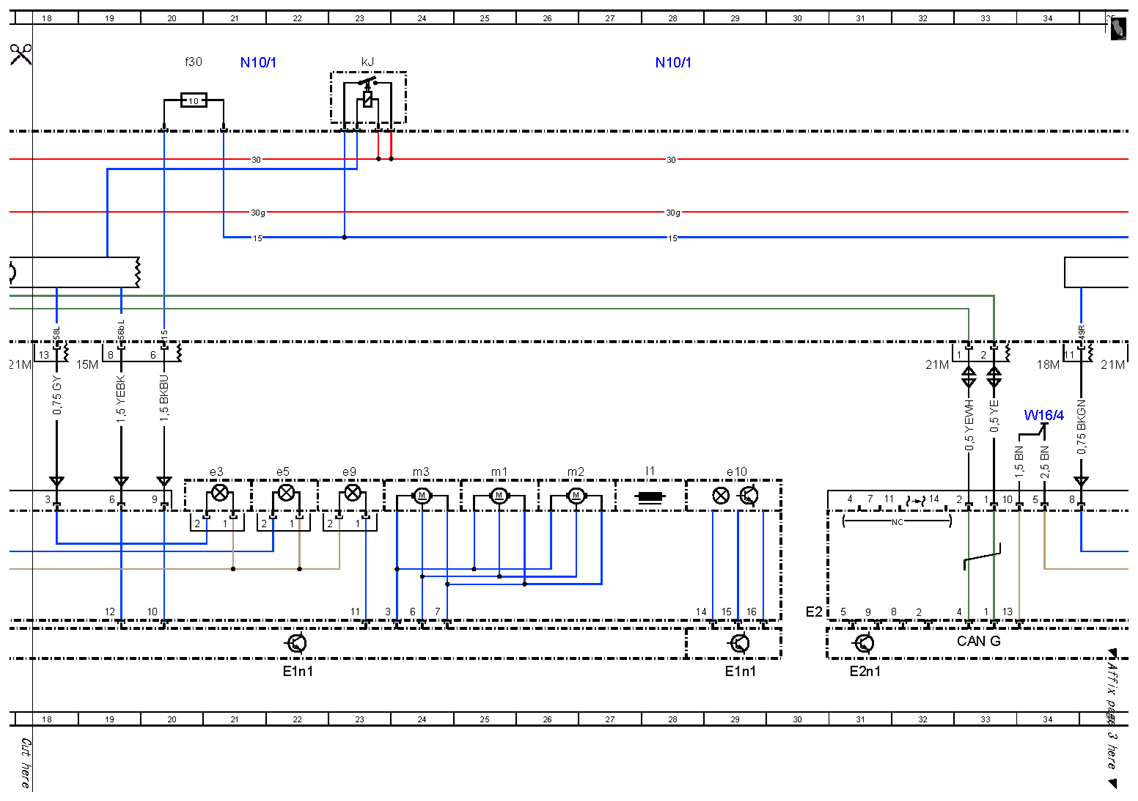

| N10/1f30 |
Fuse 30 |
20A |

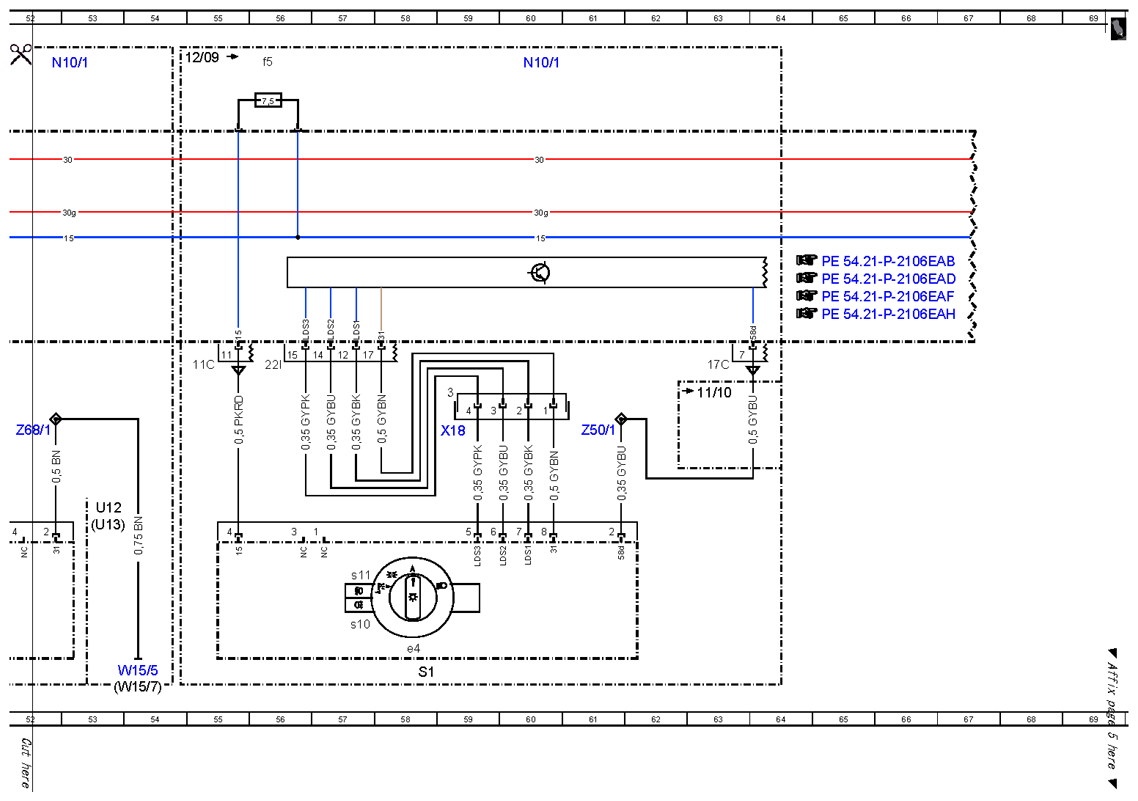

| N10/1f5 |
Fuse 5 |
56A |
| N10/1kJ |
Circuit 15 relay |
23A |
| S1 |
Exterior lights switch |
51L |
| S1 |
Exterior lights switch |
58L |
| S1e1 |
Front fog lamps indicator lamp |
50K |
| S1e2 |
Rear fog lamp indicator lamp |
51K |
| S1e3 |
Standing lamps indicator lamp |
51L |
| S1e4 |
Switch illumination |
58L |
| S1e4 |
Switch illumination |
50K |
| S1s10 |
Rear fog light button |
57K |
| S1s11 |
Front fog lamp button |
57J |
| U12 |
Valid for left-hand drive vehicles |
53H |
| U13 |
Valid for right-hand drive vehicles |
53J |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U252 |
Valid for ECO start/stop function |
1G |
| U255 |
Valid for front fog lamps |
38G |
| U971 |
Valid for daytime running lamps |
38G |
| W15/5 |
Left front footwell ground point |
54L |
| W15/7 |
Right front footwell ground point |
54L |
| W16/4 |
Right wheelhouse ground point |
34G |
| W9 |
Left front ground point (at lamp unit) |
16G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
59G |
| X62/32 |
Rear axle electrical connector, left distributor |
7H |
| Z36/5 |
Headlamp range adjustment sensor ground connector sleeve |
11H |
| Z36/6 |
Sensor voltage supply connector sleeve |
10H |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
61G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
52G |
| Z68/10 |
Instrument panel LIN connector sleeve |
49G |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
51G |
