Wiring diagram of MOST bus - PE82.00-P-2710-97EAB

Code:	Designation:	Position:
A0	Color code key	23L
A2	Radio	12A
A2	Radio	19A
A2	Radio	4A
A40/3	COMAND control unit	12A
A40/3	COMAND control unit	19A
A40/3	COMAND control unit	4A
A90/4	Tuner unit	9L
Code 536	SIRIUS satellite radio	6G
Code 537	Digital radio	6H
Code 810	Sound system	1G
Code 810	Sound system	1C
Code 810	Sound system	12G
Code 865	TV tuner (digital)	6H
N40/3	Sound system amplifier control unit	4L
N40/3	Sound system amplifier control unit	15L
U500	Not valid for sound system	6C
Z35/10	MOST wake-up signal connector sleeve	5E

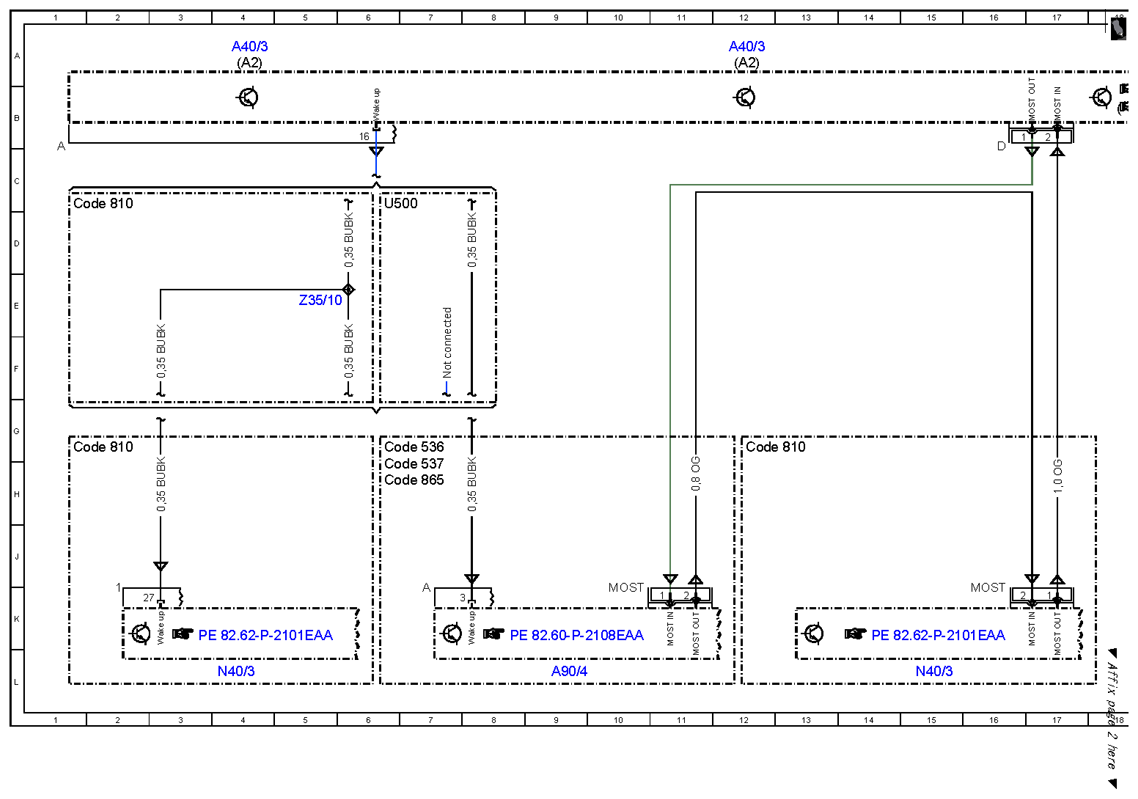

Fig 1: MOST Bus Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

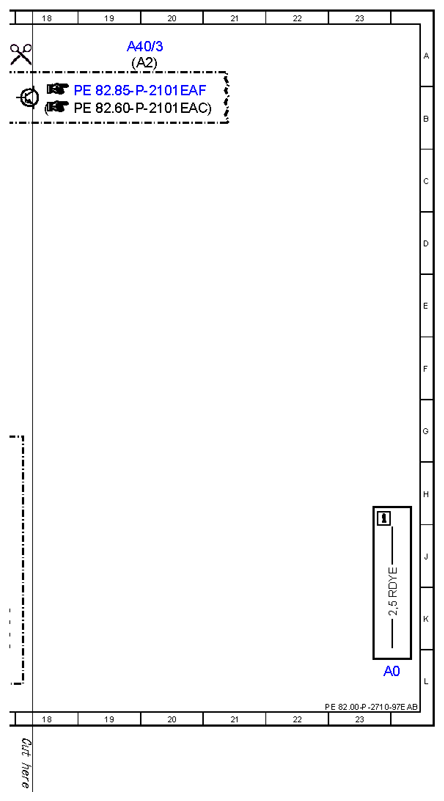

Fig 2: MOST Bus Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
