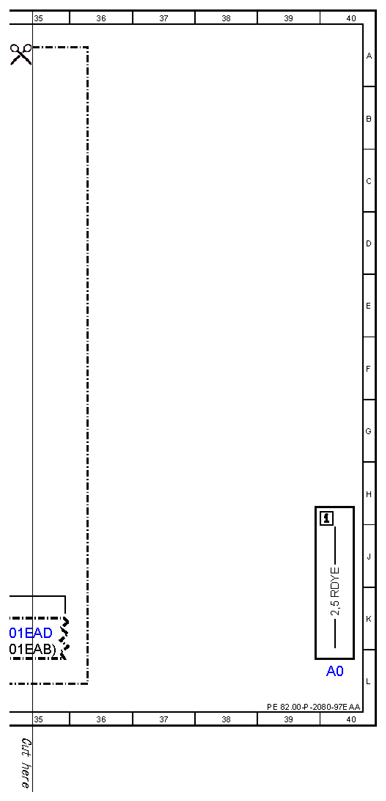

| A0 |
Color code key |
40L |
| A2 |
Radio |
13L |
| A2 |
Radio |
34L |
| A2/56 |
Radio with auto pilot system |
13L |

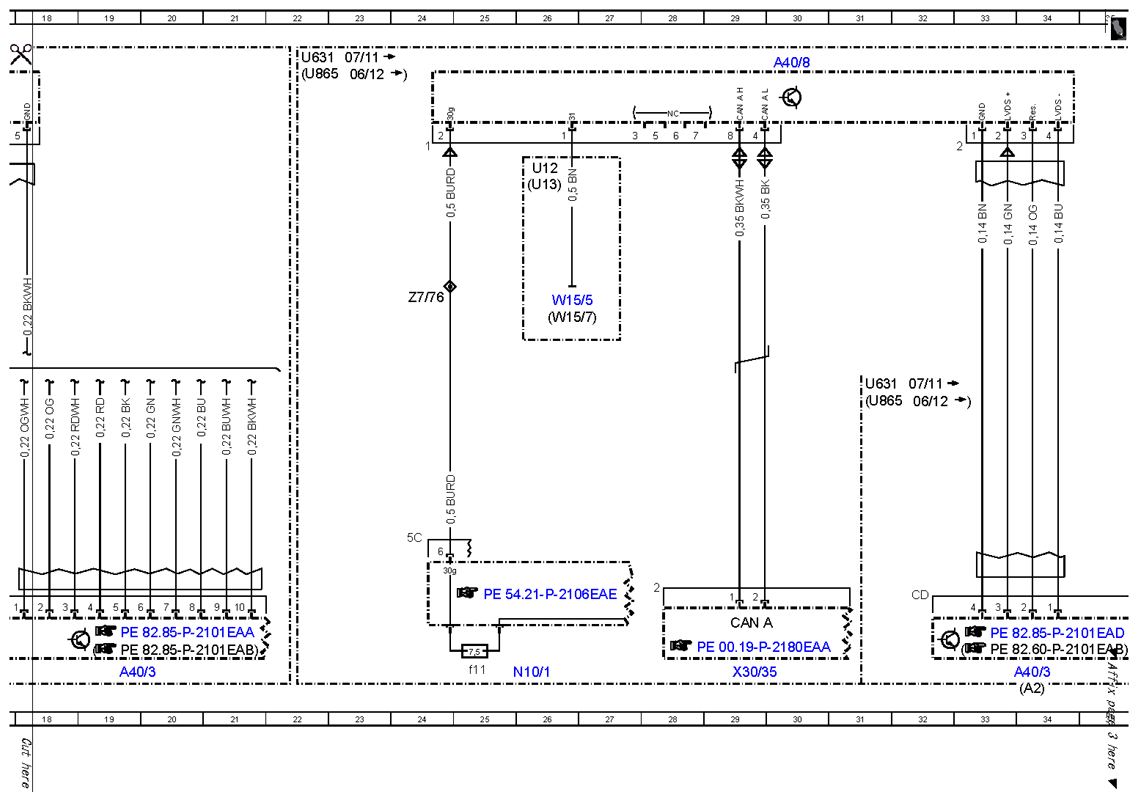

| A40/3 |
COMAND control unit |
19L |
| A40/3 |
COMAND control unit |
34L |

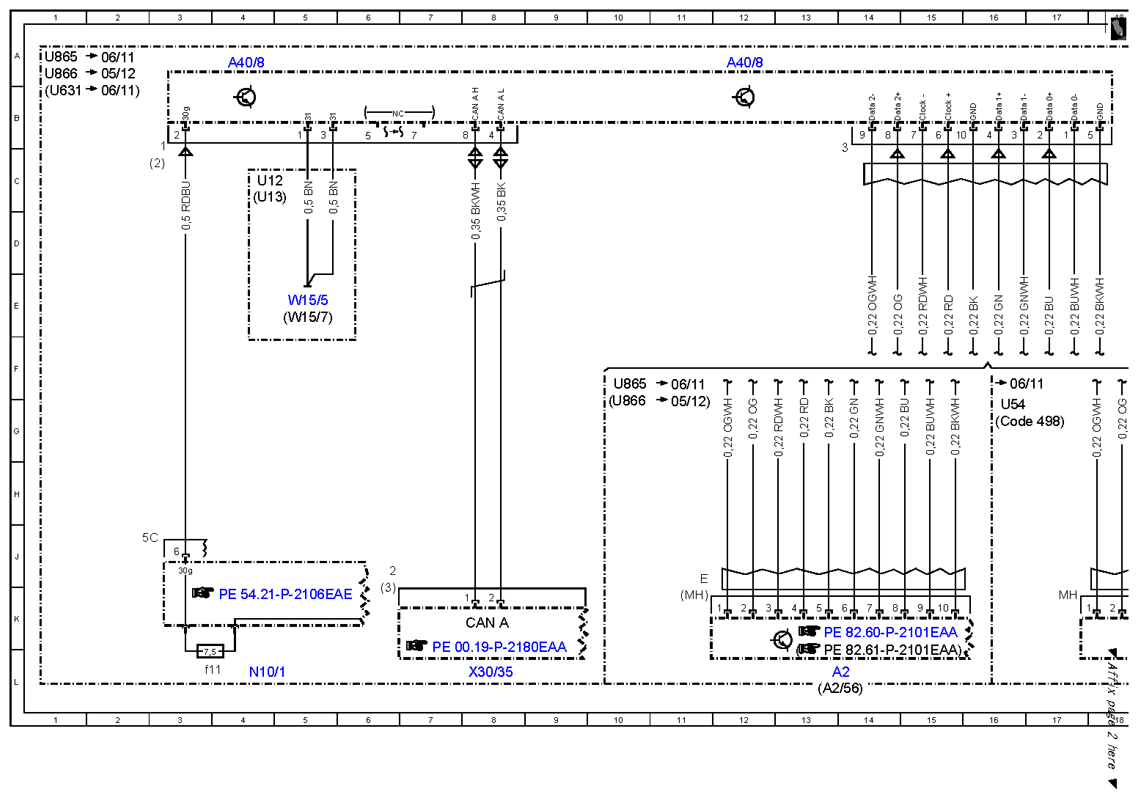

| A40/8 |
Audio/COMAND display |
4A |
| A40/8 |
Audio/COMAND display |
12A |
| A40/8 |
Audio/COMAND display |
30A |
| CAN A |
Telematics CAN |
8K |
| CAN A |
Telematics CAN |
29K |
| Code 498 |
Japan version |
16G |
| N10/1 |
Front SAM control unit with fuse and relay module |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
26L |
| N10/1f11 |
Fuse 11 |
3L |
| N10/1f11 |
Fuse 11 |
25L |
| U12 |
Valid for left-hand drive vehicles |
4C |
| U12 |
Valid for left-hand drive vehicles |
26C |
| U13 |
Valid for right-hand drive vehicles |
4C |
| U13 |
Valid for right-hand drive vehicles |
26C |
| U54 |
Valid for all except Japan |
16G |
| U631 |
Valid for COMAND |
1B |
| U631 |
Valid for COMAND |
31F |
| U631 |
Valid for COMAND |
22A |
| U865 |
Valid for Audio 20 |
10F |
| U865 |
Valid for Audio 20 |
1A |
| U865 |
Valid for Audio 20 |
31G |
| U865 |
Valid for Audio 20 |
22A |
| U866 |
Valid for Audio 50 |
10G |
| U866 |
Valid for Audio 50 |
1A |
| W15/5 |
Left front footwell ground point |
5E |
| W15/5 |
Left front footwell ground point |
26E |
| W15/7 |
Right front footwell ground point |
5E |
| W15/7 |
Right front footwell ground point |
26E |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
8L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
29L |
| Z7/76 |
Cockpit circuit 30G connector sleeve |
24E |
