Removing and installing headlamp for daytime running light - AR82.10-P-2300EW

MODEL 207 up to model year 2014

MODEL 212 (except 212.077/277) up to model year 2014

MODEL 218 up to model year 2015

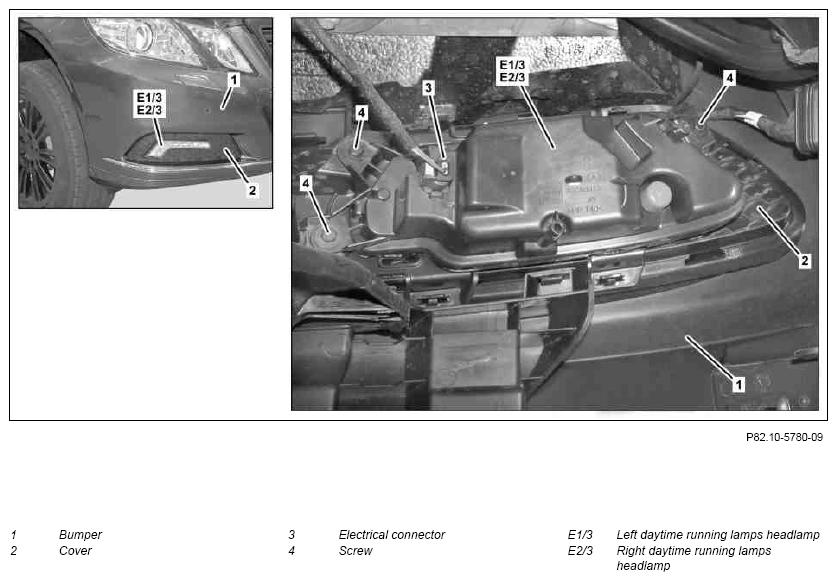

Fig 1: Identifying Daytime Running Light Headlamp Remove/Install Components - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle on MODEL 212 with CODE 622 (Intelligent Light System (right-hand traffic))

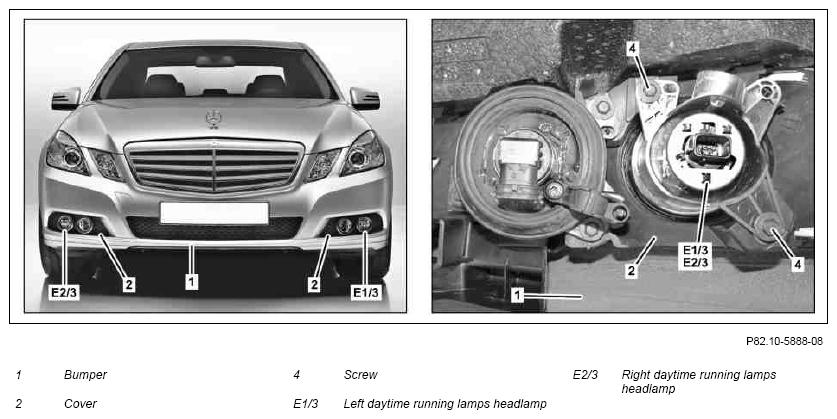

Fig 2: Identifying Daytime Running Light Headlamp Remove/Install Components - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle on MODEL 212 except CODE 622 (Intelligent Light System (right-hand traffic))

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift
2	Loosen left and right fender liner in area of bumper (1) and lift out with assembly wedge until the left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) can be removed	Mounting wedge	Fig 3
3	Disconnect electrical connector (3)
4	Unscrew screws/bolts (4) and remove left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) from cover (2)	The number of bolts (4) differs according to the vehicle equipment. Ensure that left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) is seated correctly in cover (2).
5	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
