Remove/install speaker in rear shelf - AR82.62-P-7836EC
MODEL 207.3 with CODE (810) Sound system

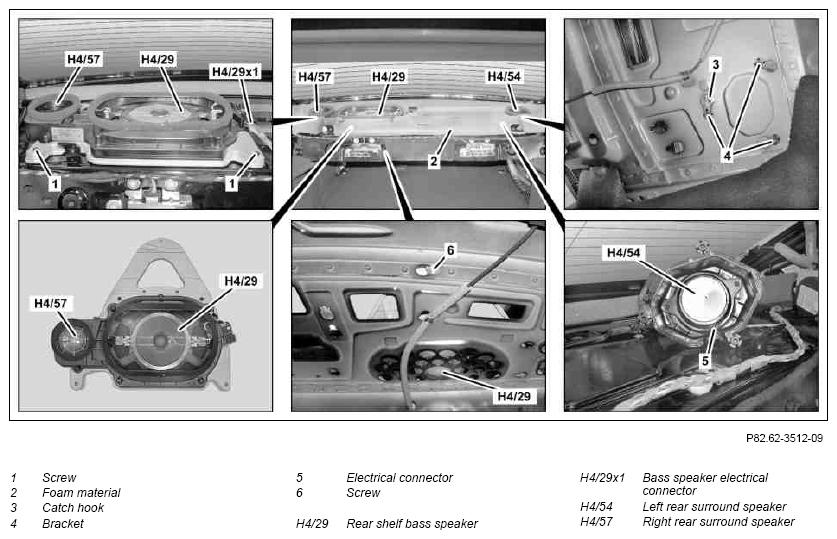

Shown with removed rear shelf
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Remove rear shelf | On vehicles without code (540) Roller sun blind | AR68.30-P-4580EC |
| 1.2 | Detach and lift rear shelf, until the rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57) or left rear surround speaker (H4/54) is accessible | On vehicles with code (540) Roller sun blind | AR68.30-P-4580EC |
| 2 | Fold foam (2) to rear, until the rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57) or left rear surround speaker (H4/54) is accessible | On vehicles with code (540) Roller sun blind | |
| 3 | Open catch hooks (3) and release holder (4) for left rear surround speaker (H4/54) by turning in clockwise direction | When removing left rear surround speaker (H4/54). | |
| 4 | Lift left rear surround speaker (H4/54), detach electrical connector (5) and remove left rear surround speaker (H4/54) | When removing left rear surround speaker (H4/54). | |
| 5 | Detach electrical connector for bass speaker (H4/29x1) | When removing the rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57). | |
| 6 | Remove bolt (6) | When removing the rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57). | |
| 7 | Remove screws (1) and them remove rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57) | When removing the rear shelf bass speaker (H4/29) with right rear surround speaker (H4/57). | |
| 8 | Install in the reverse order |
