Remove/install satellite radio control unit - AR82.60-P-7545CW
MODEL 204.0, 207.4 with CODE (494) USA version with CODE (536) SIRIUS satellite radio
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

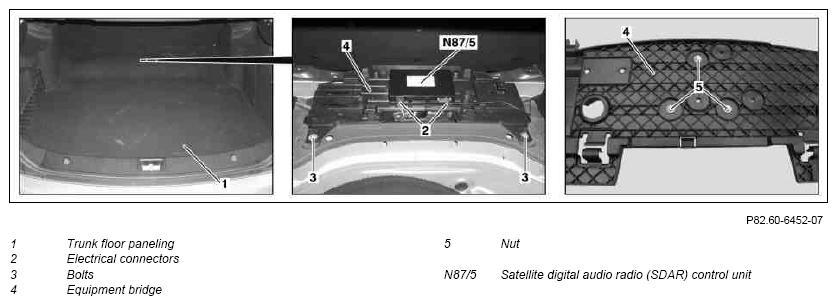

| 1 | Remove trunk floor paneling (1) | Model 204.0 | AR68.30-P-4600CW |
| 2 | Remove underbody flap | ||
| 3 | Separate electrical connectors (2) | ||
| 4 | Remove bolts (3) and remove equipment bridge (4) | ||
| 5 | Turn equipment bridge (4) over and unscrew nut (5) | ||
| 6 | Remove satellite digital audio radio (SDAR) control unit (N87/5) | ||
| 7 | Install in the reverse order |
