Remove/install center high-mounted stop lamp - AR82.10-P-5375EG
MODEL 207

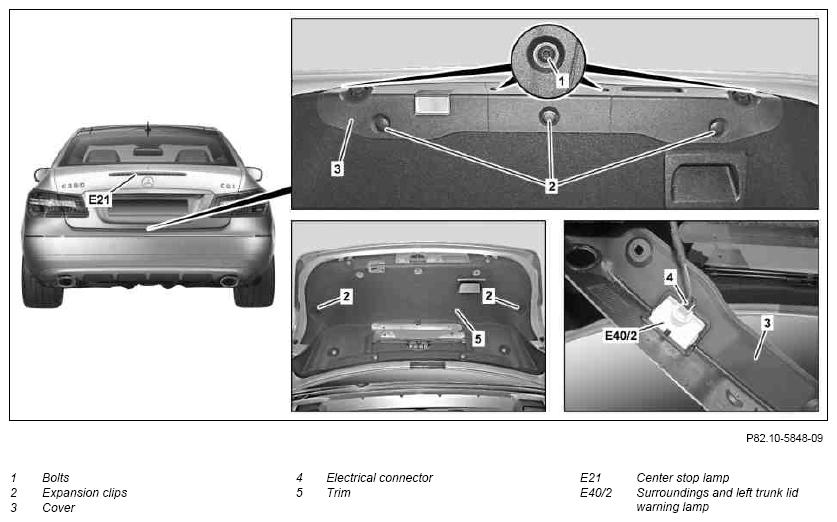

Shown on model 207.3
Shown with removed trunk lid lining
| Remove/install | |||
| 1 | Remove screws (1) at cover (3) | ||
| 2 | Remove expansion clips (2) | ||
| 3 | Remove cover (3) and detach electrical connector (4) | ||
| 4 | Swivel trim (5) far enough until the center brake lamp (E21) is accessible | ||

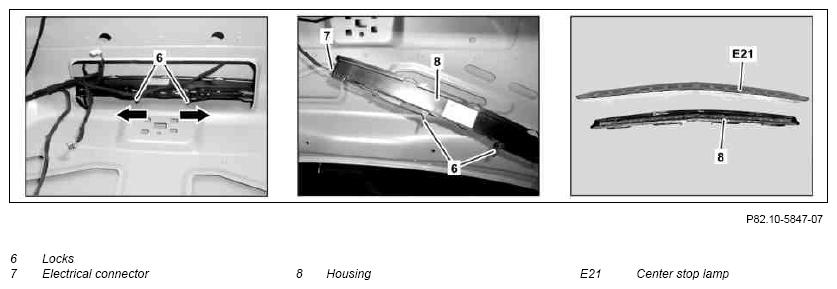

| 5 | Press locks (6) in direction of the arrow and remove housing (8) of center brake lamp (E21) from trunk lid until the electrical connector (7) is accessible | ||
| 6 | Disconnect electrical connector (7) | ||
| 7 | Carefully detach center brake lamp (E21) from trunk lid and remove outwards | ||
| 8 | Install in the reverse order |
