Remove/install backup antenna for Tele-Aid emergency call system - AR82.95-P-0004EWA
MODEL 207.3 with CODE (494) USA version
| Remove/install | |||
| 1 | Open soft top | ||
| 2 | Remove cover behind rear head restraints | ||
| 3 | Unclip top cover between the rear head restraints | ||

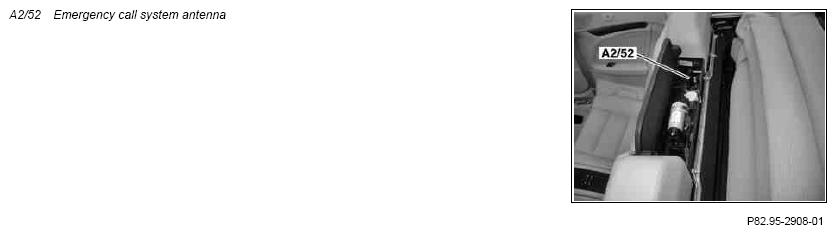

| 4 | Rotate emergency call system antenna (A2/52) counterclockwise and remove from above | ||
| 5 | Disconnect electrical connector | ||
| 6 | Install in the reverse order |
