Retrofit illuminated door sill molding - AZ82.20-P-0001EC

MODEL 207.3/4

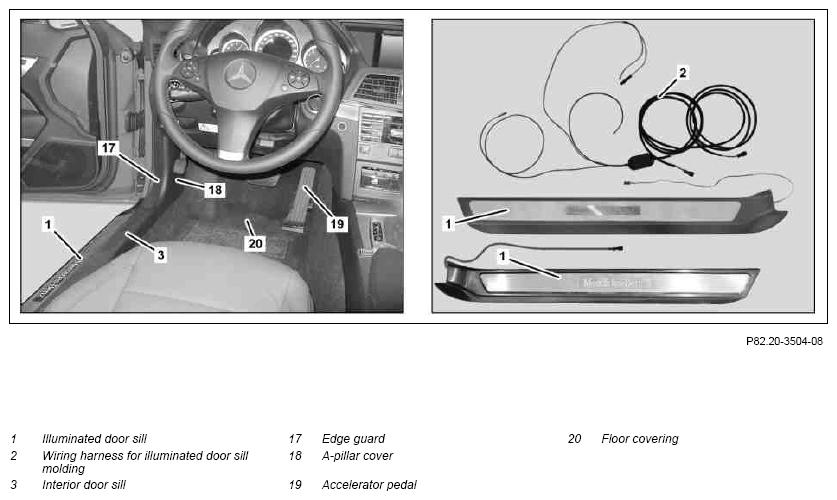

Fig 1: Identifying Illuminated Door Sill Molding Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by contact with parts conducting high voltages.	Do not touch live parts. Persons who carry electronic implants (e.g. cardiac pacemakers) must not perform any work on these components.	AS00.00-Z-0020-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move back driver seat and front passenger seat
2	Disconnect battery ground line
			AR54.10-P-0003EW
3	Remove interior door sill (3) on left and right	When installing the interior door sill (3), make sure that the ribbon cable of the illuminated door sill molding (1) lies close against the panel edge of the entrance.
4	Detach edge guard (17) at left and right in area of door sill and cover on A-pillars (18)	When installing the edge guard (17), make sure that the ribbon cable of the illuminated door sill molding (1) lies close against the panel edge of the entrance.
5	Remove left and right door sill	The door sills are no longer required
6	Remove A-pillar paneling (18) from bottom of left and right A-pillar
7	Remove cover below right dashboard
			AR68.10-P-1520CW
8	Remove cover below left of instrument panel
9	Remove accelerator pedal (19)
10	Remove floor covering (20) on left and right of footwell
11	Detach footrest in passenger footwell and turn around	Do not disconnect electrical connectors from control units on footrest.
12	Detach front SAM control unit with fuse and relay module and place to one side
			AR54.21-P-1260CW
	Install
13	Retrofit wiring harness of illuminated door sill molding (2)		AZ82.20-P-0001-04EC
14	Retrofit illuminated door sill moldings (1)		AZ82.20-P-0001-01EC
15	Install remaining parts	Operation steps 12 to 6 and 4 to 1.
16	Perform function check on illuminated door sill moldings (1)	Opening the doors activates the illuminated door sill moldings (1).
17	Remove protective foil from illuminated door sill moldings (1)
18	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001EC " note under field organization texts to DG 82.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (please refer EPC)	Illuminated door sill moldings	1
