Retrofit iPhone kit - AZ82.70-P-0013EC

MODEL 207.3/4 with CODE 386 (Convenience telephony) with CODE 518 (Media Interface)

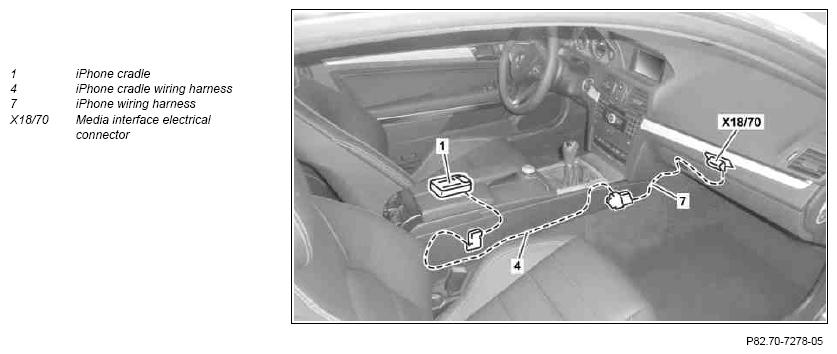

Fig 1: Identifying Iphone Cradle Wiring Harness

Courtesy of MERCEDES-BENZ USA

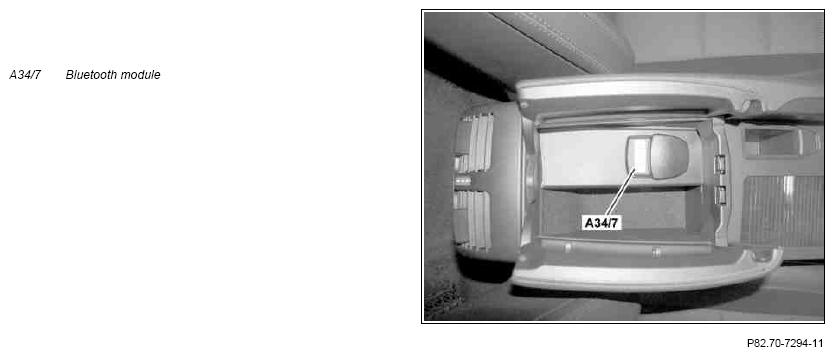

Fig 2: Identifying Bluetooth Module

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove center console
			AR68.20-P-2000CW
2	Unclip and remove mount with Bluetooth module (A34/7) from center console	Mounting wedge	Figure
3	Detach right cover below instrument panel
			AR68.10-P-1520CW
	Install
4	Retrofit iPhone kit wiring harness		AZ82.70-P-0013-01EC
		Rechargeable screwdriver, rechargeable drill
5	Fasten right cover below instrument panel
			AR68.10-P-1520CW
6	Install center console
			AR68.20-P-2000CW
7	Check iPhone kit for proper operation
8	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "iPhone kit retrofitted as per AZ82.70-P-0013EC " note under field organization text to design group 82.

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
