Cavity preservation following repair work - AR97.20-P-1500EC

MODEL 207

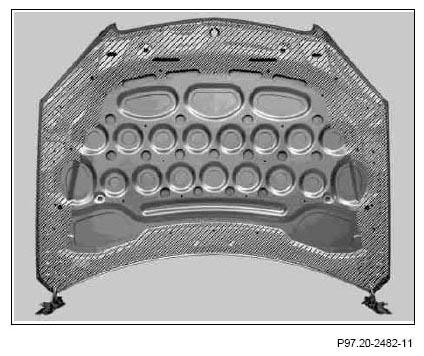

Shown on model 204.0 Engine hood

Shown on model 212.0 Liftgate

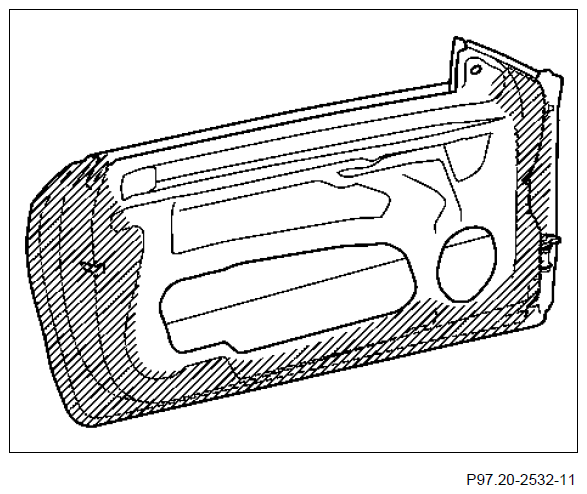

Driver door

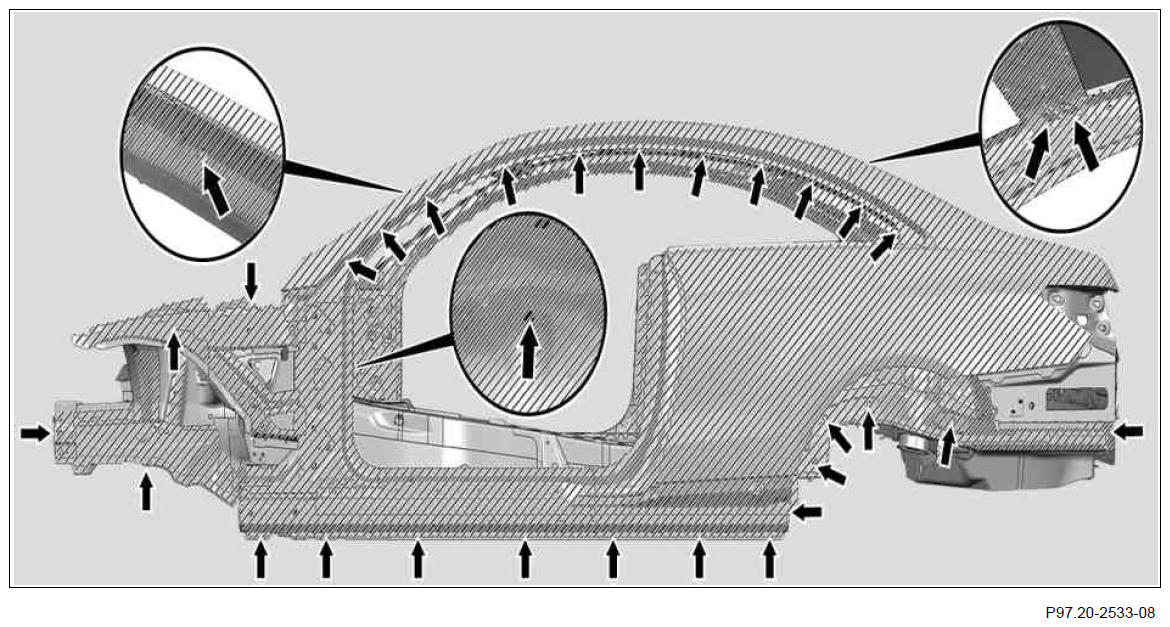

Front upper longitudinal member, A-pillar, C-pillar, side wall paneling and side bottom longitudinal member

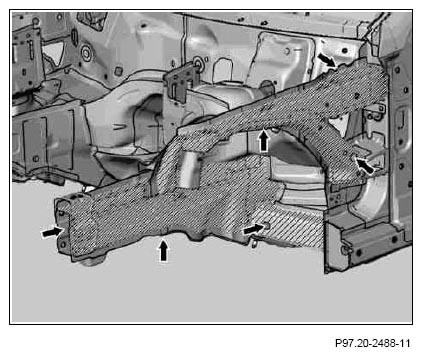

Shown on model 204.0 front longitudinal member

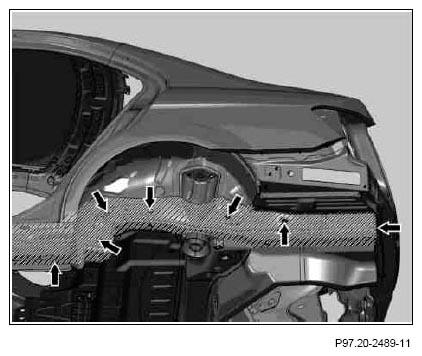

Shown on model 204.0 rear longitudinal member

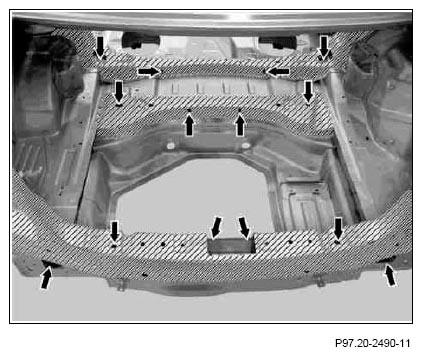

Shown on model 204.0 Rear end assembly

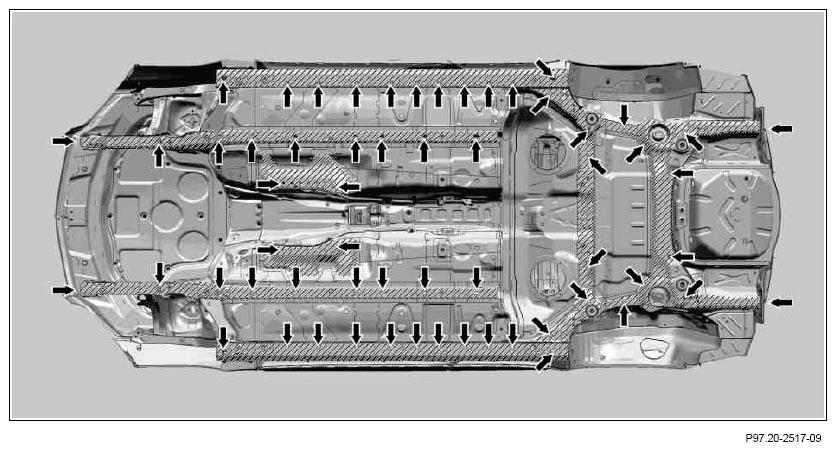

Shown on model 204.0 Underfloor

	Risk of explosion  and poisoning caused by solvent vapors and gasses. Risk of injury  to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
1	Perform repair preservation	Apply cavity preservation agent in marked areas, from inside, only after completing sealing and paintwork, however, before assembly work. Apply repair preservation agent twice with a drying time of 5 minutes in between. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly.
	Processing instructions for cavity preservation agent		AP97.20-P-0640-01A
	Cavity protection, general		GF98.00-P-2045A
		Preservation agent	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes	The processing temperature should not be less than 15 °C. Additional preservation measures may be required, depending on the repair area, deviating from the standard cavity preservation shown.

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
