Adaptive Brake (ABR) location of components - GF42.47-P-0001-02CA

MODEL 207.3/4

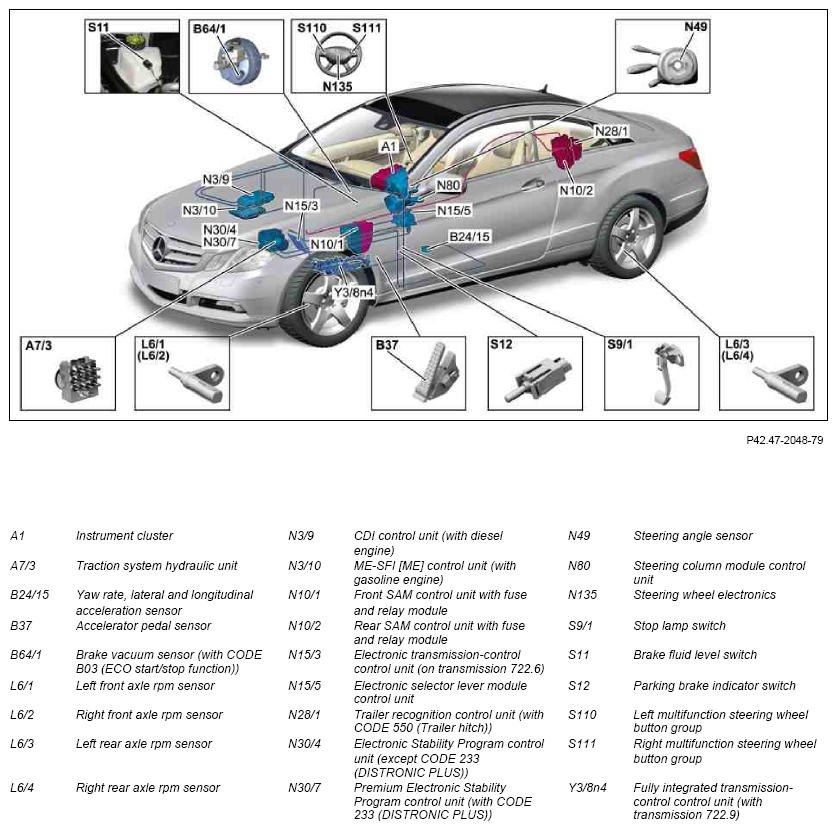

Fig 1: Adaptive Brake Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 207.3 up to 31.5.10

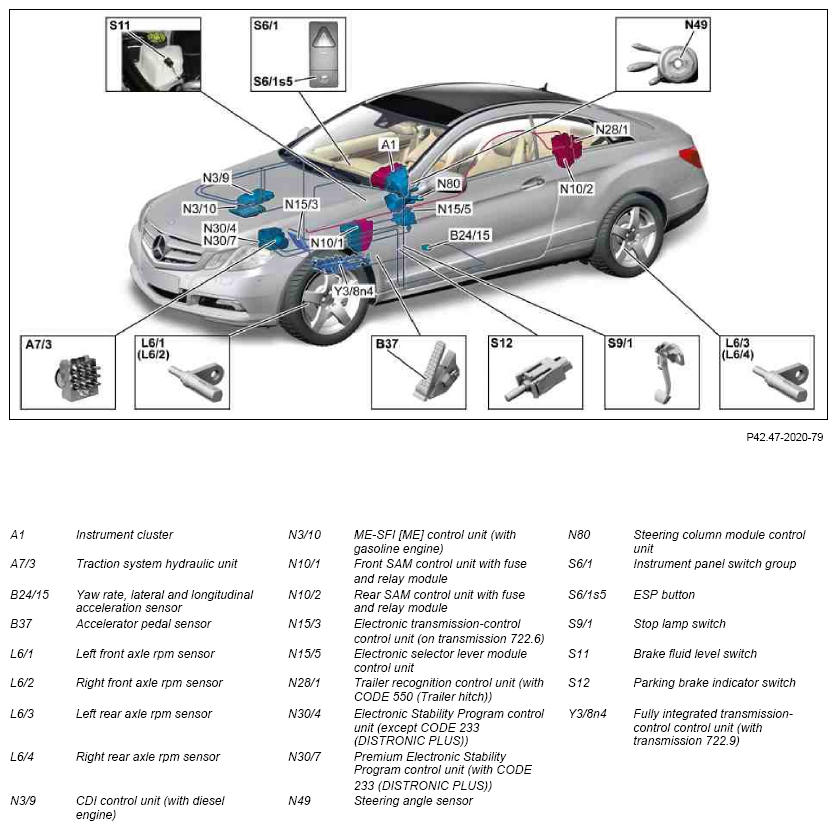

Fig 2: Adaptive Brake Components Location - Shown On Model 207.3

Courtesy of MERCEDES-BENZ USA

Shown on model 207.3 as of 1.6.10

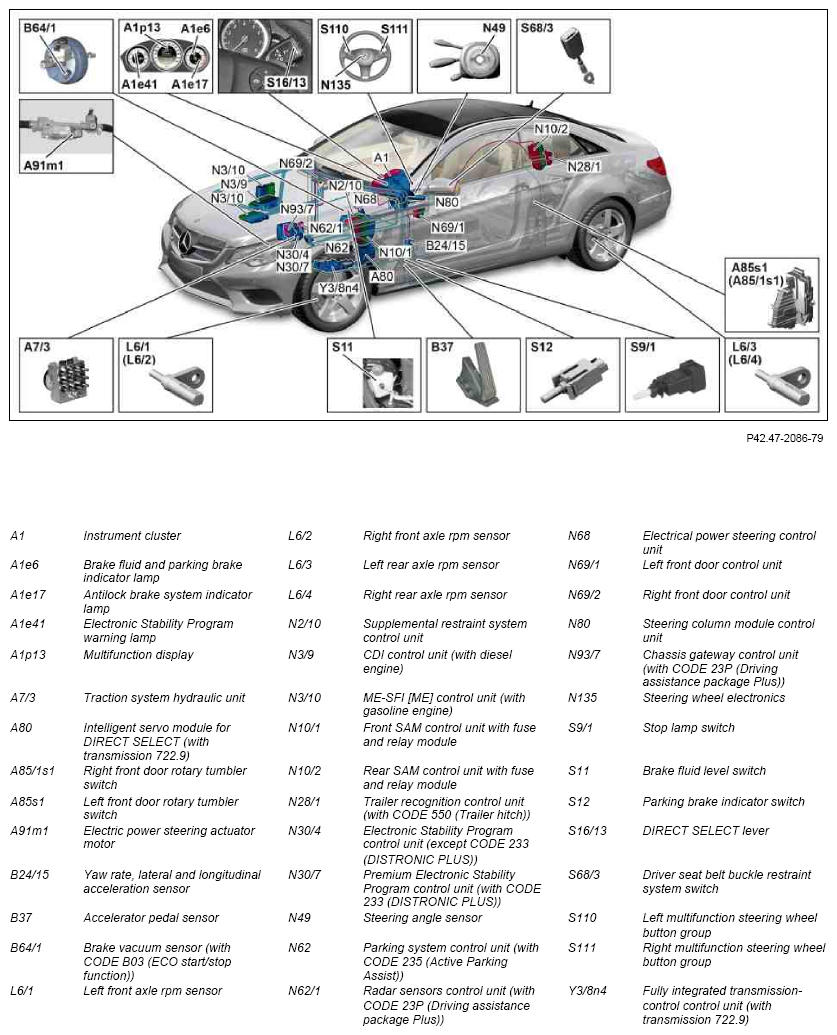

Fig 3: Adaptive Brake Components Location - Shown On Model 207.3

Courtesy of MERCEDES-BENZ USA

Shown as of model year 2014
