Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03CA

MODEL 207.3/4

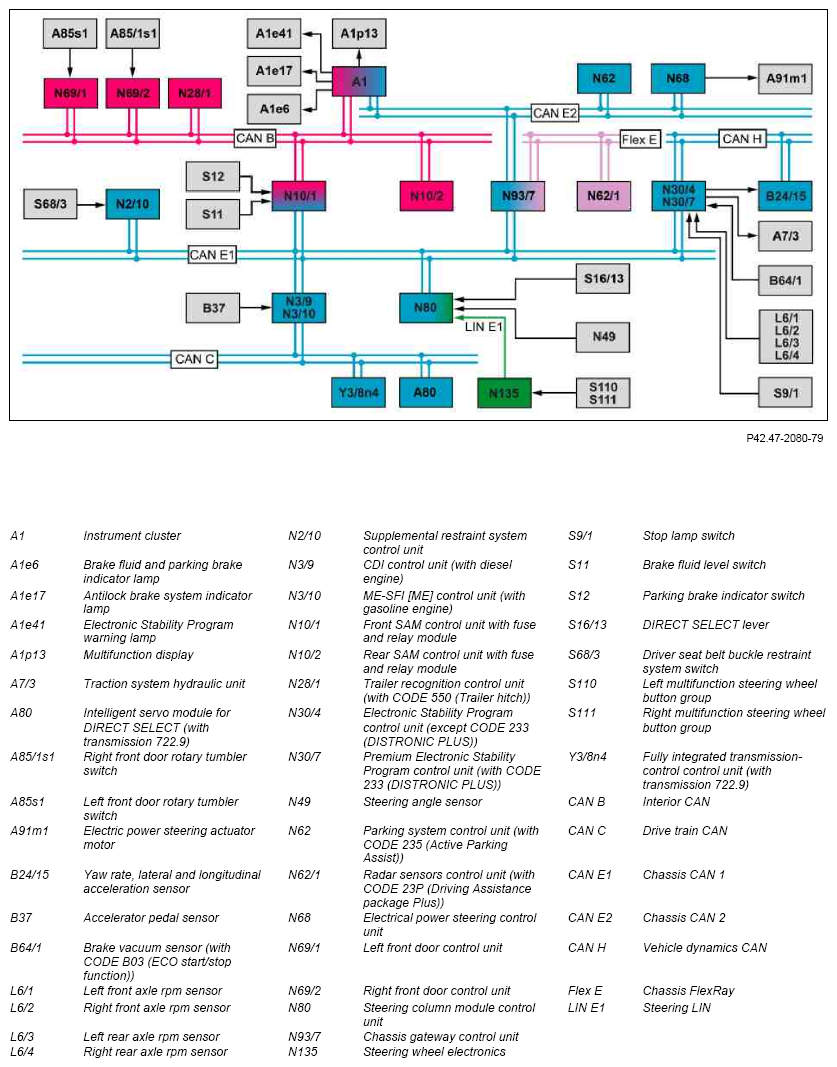

Fig 1: Adaptive Brake - Block Diagram

Courtesy of MERCEDES-BENZ USA

Shown up to 31.5.10

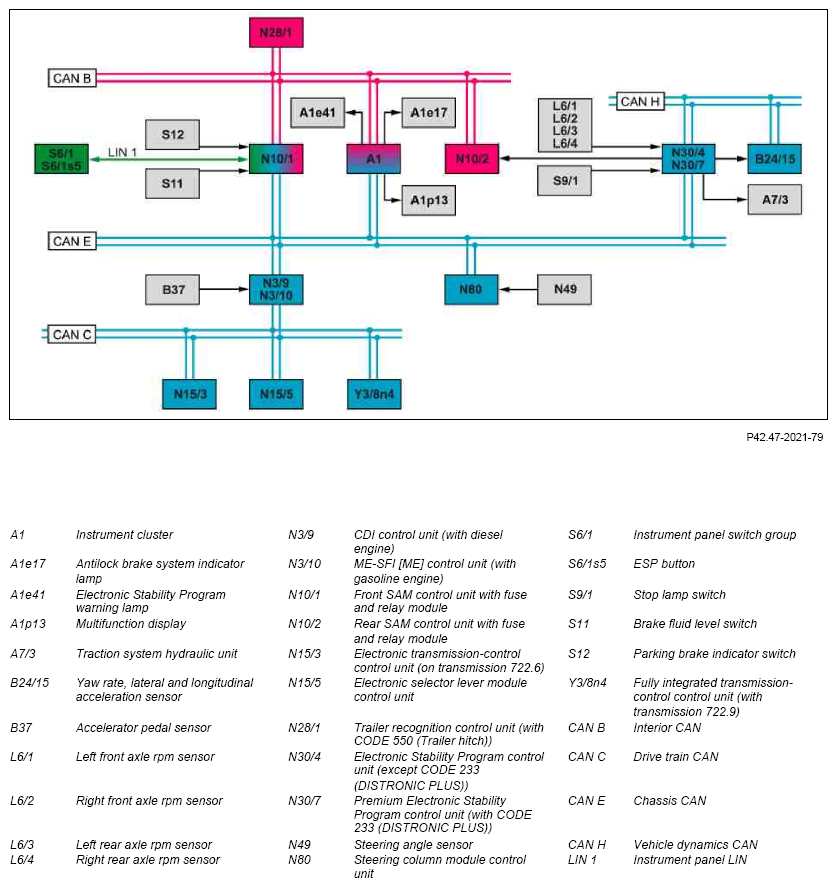

Fig 2: Adaptive Brake - Block Diagram

Courtesy of MERCEDES-BENZ USA

Illustration shows as of 1.6.10 up to 31.5.13

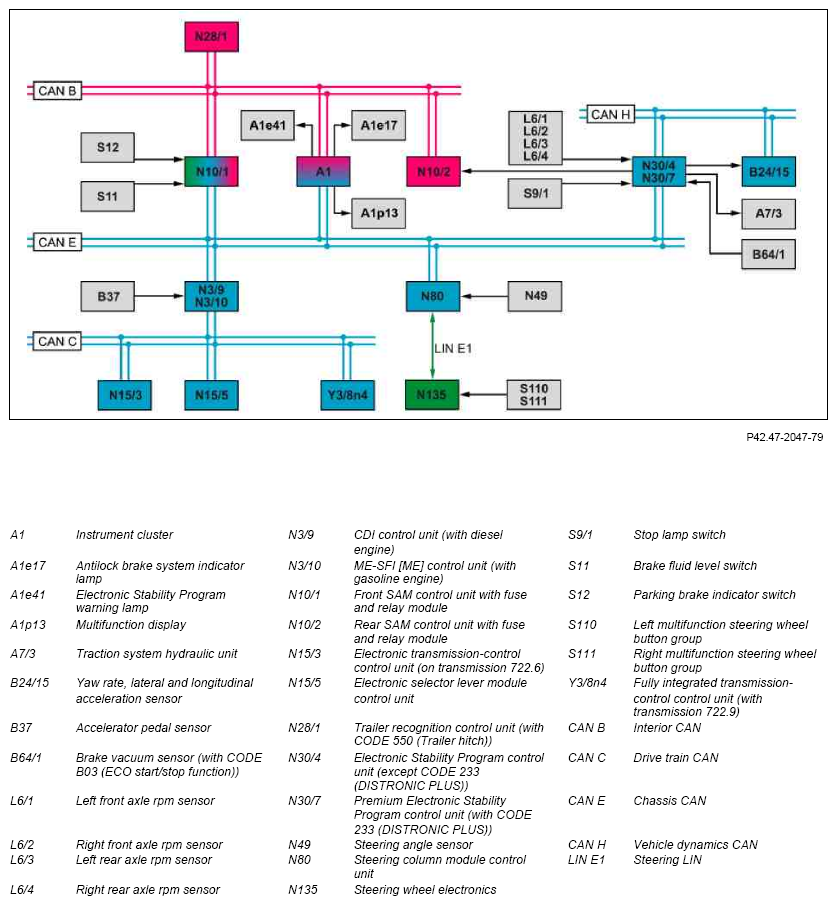

Fig 3: Adaptive Brake - Block Diagram

Courtesy of MERCEDES-BENZ USA

Shown as of model year 2014
