| A0 |
Color code key |
32L |
| A63 |
Trailer hitch release |
27L |
| CAN B |
Interior CAN |
13K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
9L |
| N10/2f53 |
Fuse 53 |
5L |
| N10/2f54 |
Fuse 54 |
3L |
| N10/2f56 |
Fuse 56 |
7L |
| N10/2f57 |
Fuse 57 |
4L |
| N10/2f58 |
Fuse 58 |
2L |
| N10/2f89 |
Fuse 89 |
8L |

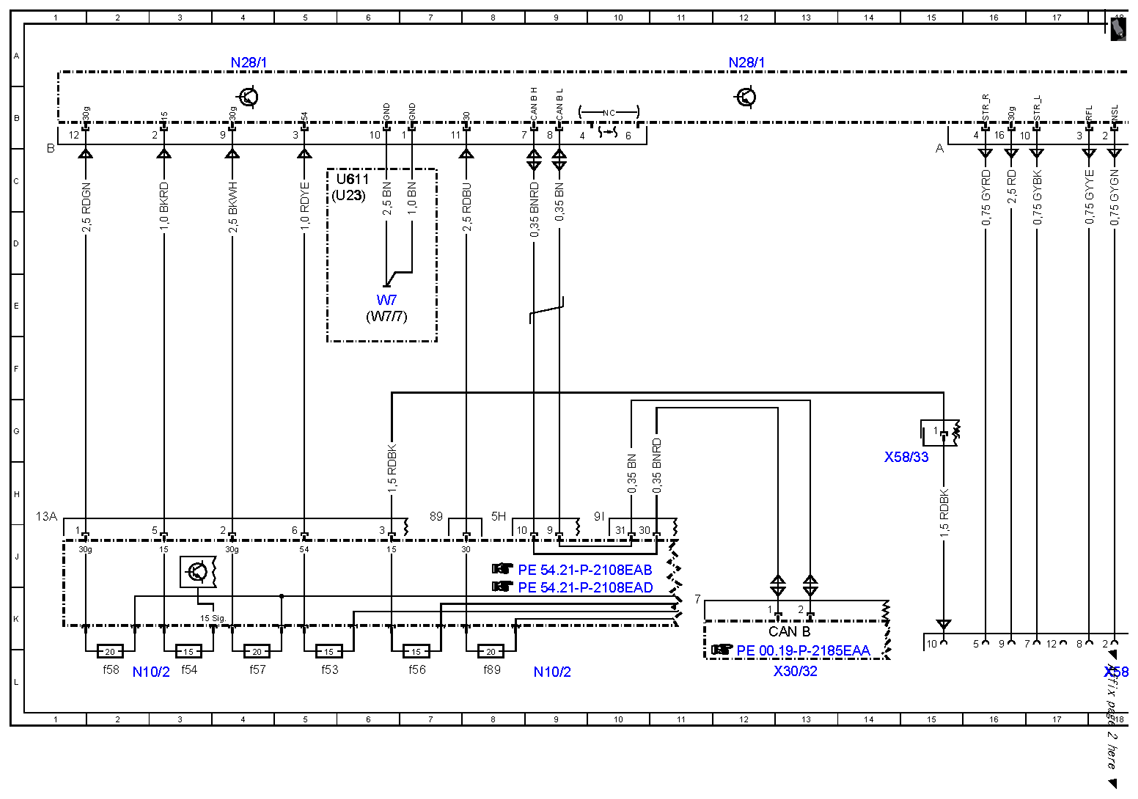

| N28/1 |
Trailer recognition control unit |
4A |
| N28/1 |
Trailer recognition control unit |
12A |
| N28/1 |
Trailer recognition control unit |
20A |
| N28/1 |
Trailer recognition control unit |
27A |
| S142 |
Trailer hitch locking switch |
29L |
| S142x1 |
Trailer hitch lock switch electrical connector |
29J |
| U23 |
Valid for convertibles |
5C |

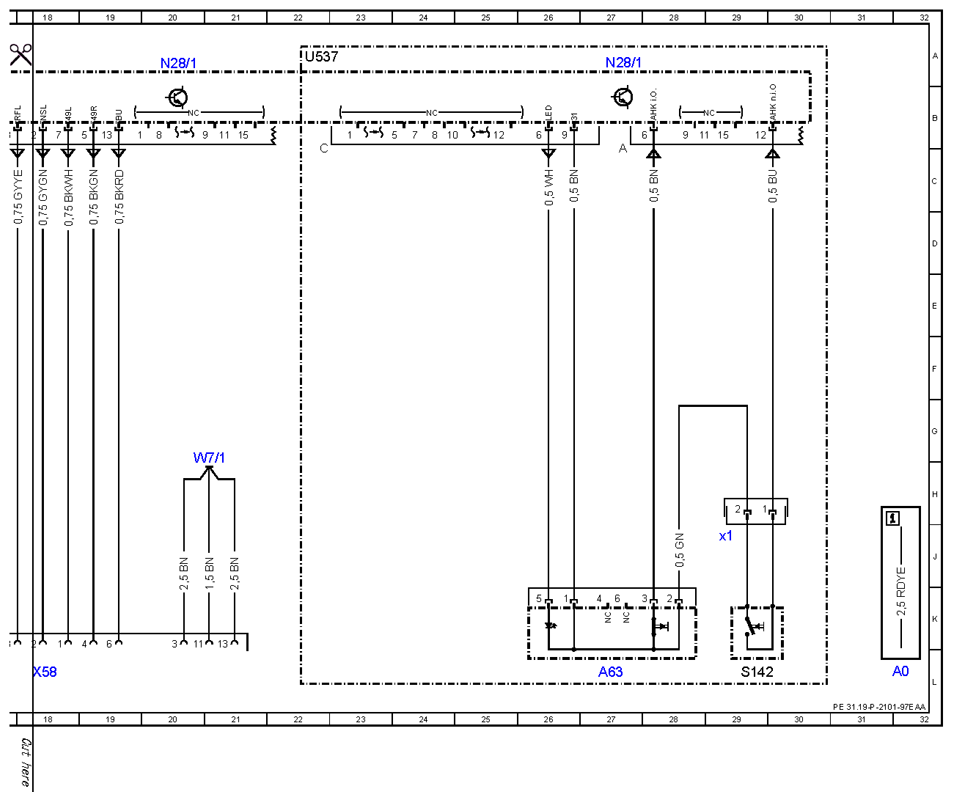

| U537 |
Valid for swiveling trailer hitch |
22A |
| U611 |
Valid for Coupe |
5C |
| W7 |
Right wheelhouse trunk ground point |
6E |
| W7/1 |
Right taillamp trunk ground point |
20H |
| W7/7 |
Right spare wheel well ground point |
6E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
13L |
| X58 |
Trailer socket |
18L |
| X58/33 |
Interior/trailer hitch electrical connector |
15H |
