Remove/install trunk retractable partition - AR68.50-P-3000EC
MODEL 207.4

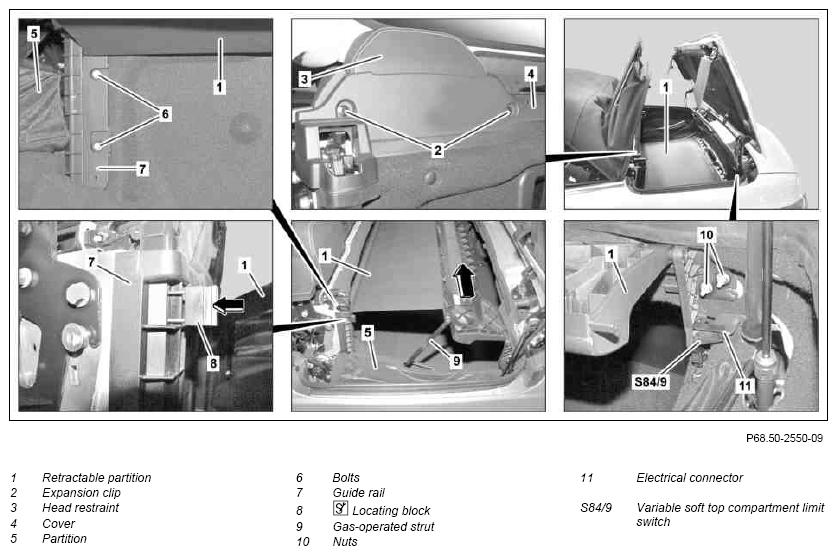

Shown on left side of vehicle
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Partially open soft top | ||
| 2 | Cover vehicle in rear area | ||
| 3 | Remove expansion clip (2) below left and right head restraint (3) | ||
| 4 | Take off cover (4) | ||
| 5 | Unhook left and right partition (5) at side | ||
| 6 | Pivot retractable partition (1) upward | ||

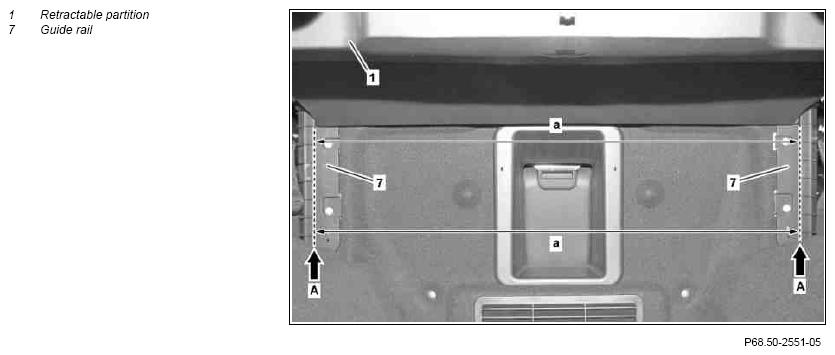

| 7 | Insert arresting block (8) into left and right guide rail (7) as shown | It may be necessary to push up the retractable partition (1) by hand so that the arresting block ( Observe installation position of arresting blocks ( |
|
| Fig 3 | |||
| 8 | Unscrew bolts (6) from left and right guide rail (7) | ||
| 9 | Remove left and right gas-filled strut (9) from retractable partition (1) | ||
| 10 | Disconnect electrical connector (11) from variable soft top compartment limit switch (S84/9) | ||
| 11 | Unscrew nuts (10) on left and right vehicle side from retractable partition (1) | ||
| 12 | Remove retractable partition (1) | ||
| 13 | Install in the reverse order |
