Remove/install front prefuse box - AR54.15-P-1330EC

MODEL 207

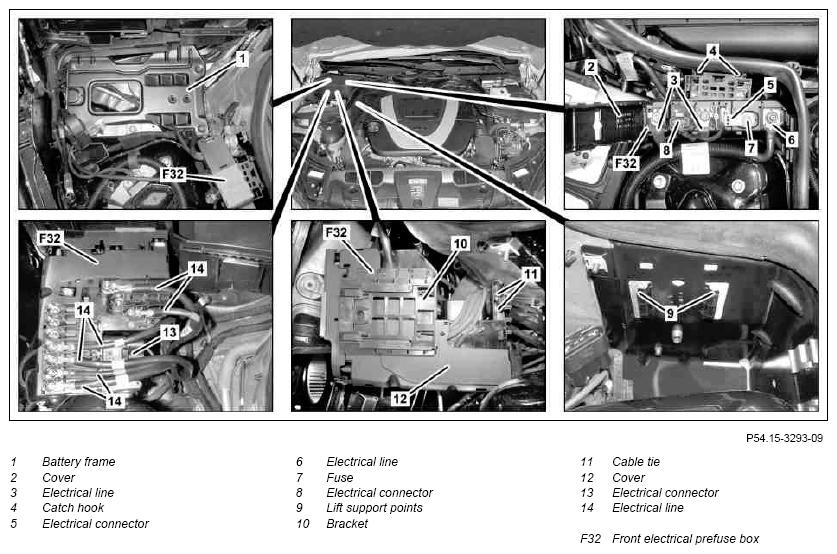

Fig 1: Identifying Front Pre-Fuse Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove battery		AR54.10-P-0005EW
2	Remove battery frame (1)	The battery frame (1) is attached with three bolts.
			*BA54.10-P-1003-01F
3	Open cover (2) on front electrical prefuse box (F32)
4	Remove electrical cables (3)	The electrical lines (3) are coded.
			*BA54.15-P-1001-01A
5	Detach electric cable (6)	The electrical line (6) is coded.
			*BA54.15-P-1002-01A
6	Unlock fuse (7) and disconnect electrical connector (5) on front prefuse box (F32)
7	Disconnect electrical connector (8)
8	Unlock front prefuse box (F32) at the catch hooks (4), pull out upwards out of the lift support points (9) on the body and place to one side	Ensure that front electrical prefuse box (F32) is seated correctly in mounting points (9) on body
9	Open cable ties (11)
10	Unclip bracket (10) from front prefuse box (F32) and remove
11	Unclip cover (12) from front electrical prefuse box (F32)
12	Remove electrical cables (14)	The electrical lines (14) are coded.
13	Disconnect electrical connector (13) and remove front prefuse box (F32)
14	Install in the reverse order

BATTERY

Number	Designation		Model 207
BA54.10-P-1003-01F	Bolt, battery frame to firewall/wheel arch/body	Nm	23

FUSE AND RELAY BOX

Number	Designation			Model 207
BA54.15-P-1001-01A	Nut connecting positive battery cable to prefuse box	M6	Nm	8
BA54.15-P-1002-01A	Nut connecting positive battery cable to prefuse box	M8	Nm	16
