Remove/install fanfare horns - AR54.35-P-1555EF

MODEL 207

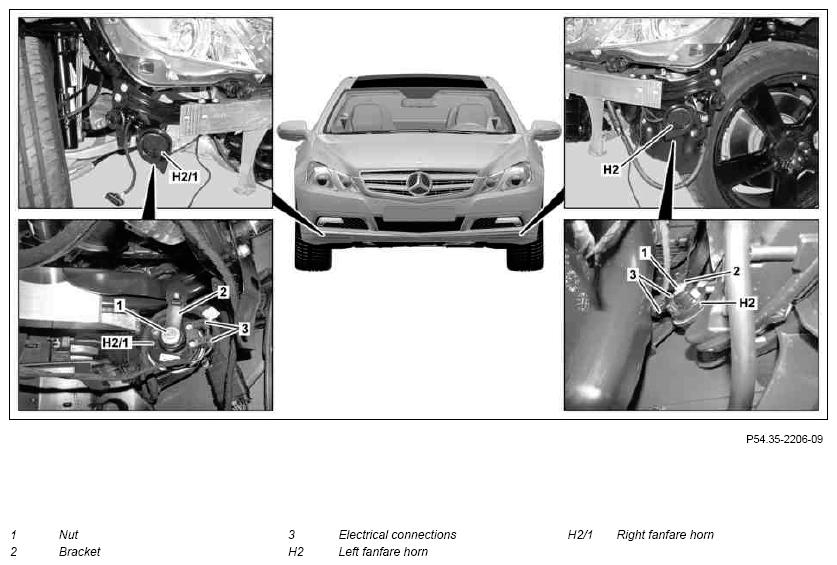

Fig 1: Identifying Fanfare Horns Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove front engine compartment paneling	MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278
			AR61.20-P-1105EW
1.2	Remove bottom section of soundproofing at front	MODEL 207 with ENGINE 642, 651
			AR94.30-P-5300EW
2	Disconnect electrical connectors (3) from left horn (H2) or right horn (H2/1)
3	Unscrew nut (1) and remove left horn (H2) or right horn (H2/1) from bracket (2)	Align the left horn (H2) or right horn (H2/1) so that the trumpet points downward at an angle. This prevents a buildup of liquid and allows any moisture inside to drip off. Place the left horn (H2) or right horn (H2/1) in the original position on the bracket (2). If the left horn (H2) or right horn (H2/1) is to be replaced, the bracket (2) included in the package contents must be detached from the new left horn (H2) or right horn (H2/1).
4	Install in the reverse order
