Remove/install driver's side interior fuse box - AR54.15-P-1310EC

MODEL 207

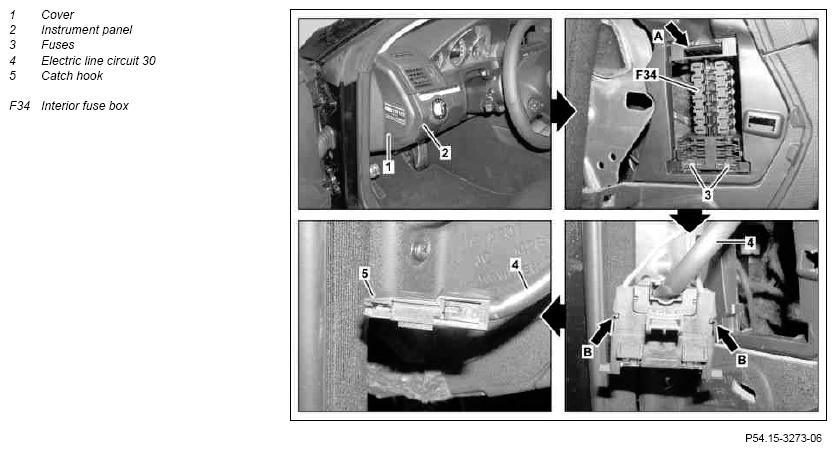

Fig 1: Identifying Driver'S Side Interior Fuse Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003EW
2	Unclip cover (1) on instrument panel (2) and take off		Fig 2
3	Remove fuses (3).	Number of fuses (3) varies to match vehicle equipment. Note installation location of fuses.
4	Unclip interior fuse box (F34) on instrument panel (2) (arrow A) and route out until the electrical lines are accessible		Fig 2
5	Detach electrical line circuit 30 (4) from interior fuse box (F34)	To do so, use a screwdriver to push back the catch hook (5).
6	Open fuse strip (arrow B)	Release carefully to avoid damaging.
7	Release female contacts and pull the electrical lines out of the interior fuse box (F34)	Removal:  Release carefully to avoid any damage. Note installation location of electrical lines, if necessary, mark electrical lines before removal. Note correct locking of female contacts.
8	Remove interior fuse box (F34).
9	Install in the reverse order
