Remove/install 12 Volt socket - AR54.10-P-1000EC

MODEL 207

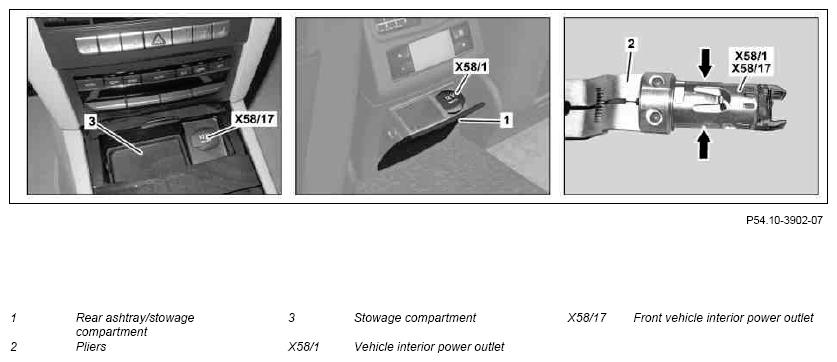

Fig 1: Identifying 12 Volt Socket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install vehicle interior socket, front (X58/17)
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only with CODE 889 (KEYLESS-GO).
2	Remove storage compartment (3)
3	Open flap of front vehicle interior socket (X58/17)
4	Release front vehicle interior socket (X58/17) using pliers (2) and pull out of stowage compartment (3)	The jaws of the pliers (2) must engage in the cutouts of the housing of the front vehicle interior socket (X58/17) (arrows).
		Pliers	Figure
5	Installation of vehicle interior socket, front (X58/17) in reverse order
	Remove/install vehicle interior socket (X58/1)
6	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only with CODE 889 (KEYLESS-GO).
7	Remove rear ashtray/stowage compartment (1)	MODEL 207
		MODEL 207 with CODE 301 (Ashtray package/smoker package)	AR68.20-P-2230CW
8	Open flap on vehicle interior socket (X58/1)
9	Release front vehicle interior socket (X58/1) using pliers (2) and pull out of rear ashtray/stowage compartment (1)	The jaws of the pliers (2) must engage in the cutouts of the housing of the vehicle interior socket (X58/1) (arrows).
		Pliers	Figure
10	Installation of vehicle interior socket (X58/1) in reverse order
